    1/2" Wall Wash Trimless Recessed Lighting Channels - Recessed-Mount - For Strips Up To 10mm - 1m / 2m

      (2 Reviews) | Write a review
    SKU: ALU-ALP186

    Please Choose:



    Discontinued
    Starting at: $39.99
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Wed,Sep,30 and Tue,Oct,06. order with 2days,9hrs and 31 min.

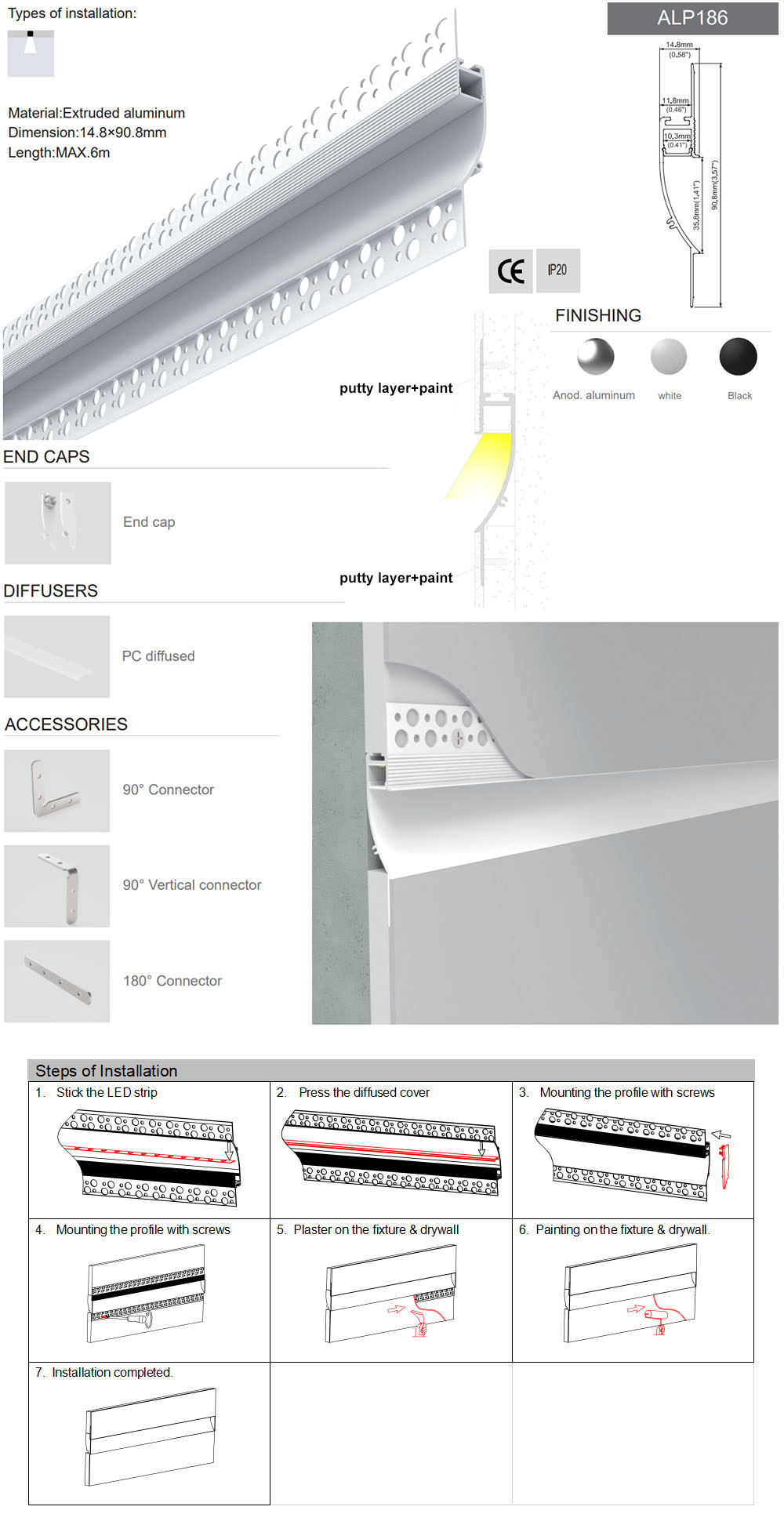

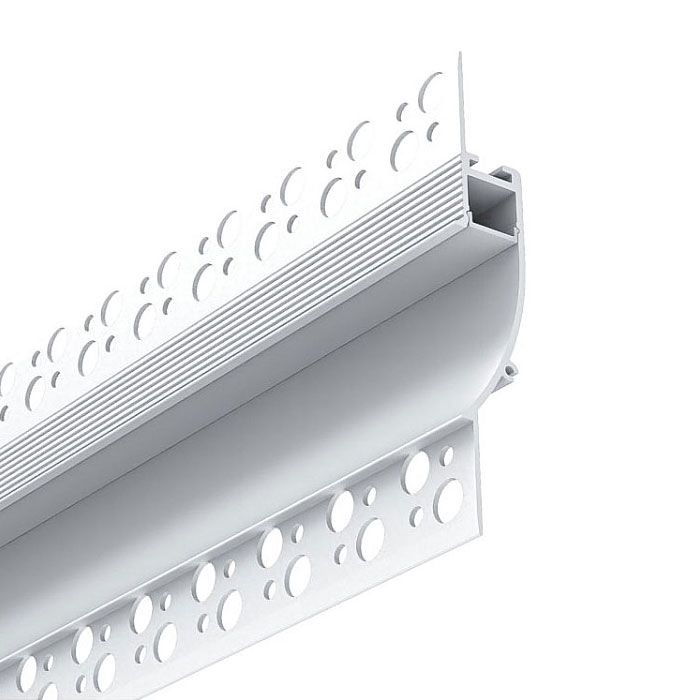

    The wall-wash recessed lighting channel can be embedded into 1/2“ drywall or plasterboard walls. The trimless design features invisible edges, providing a clean, minimalist appearance. These white LED channels enable clean, architectural lighting effects, projecting soft, angled illumination that is ideal for wall grazing applications in residential and commercial interiors. With a curved inner area, the trimless aluminum channels optimize light diffusion, creating a smooth wall-washing glow. The inner width is 10.3 mm, allowing a maximum width of 10 mm for the LED strip. We recommend installing the 24V COB LED strips to create a seamless linear lighting effect, with no dark areas and light dots. The aluminum channel can also work as a heat sink for better heat dissipation. There are three types of connectors available, allowing you to choose from 90°, 90° Vertical, and 180° connectors for angled or straight connections. There is only one type of diffuser available, the PC diffused cover, which is made of brand-imported material, is anti-yellowing, and has perfect light distribution. The wall washing channels are made of 6063-T5 extruded aluminum material with a powder-coated surface treatment for anti-oxidation resistance and a longer lifespan. The standard lengths are 1 m and 2 m, and can be cut to any length for your project. Custom lengths are also available.

    Specifications:
    Material: 6063-T5 extruded aluminum
    Surface treatment: Powder-coated
    Colors: White
    Size ( H x W ): 90.8 mm x 14.8 mm ( 3.57" x 0.58" )
    Standard lengths: 1 m ( 39" ), 2 m ( 78" )
    Custom lengths available: YES
    Diffusers: PC diffused cover
    Inner width: 10.3 mm ( 0.41" )
    Max width of LED strips: 10 mm ( 0.39" )
    Max power: 15W/m
    Beam angle: 100°
    Tolerance: ±1%
    IP rate: IP20 non-waterproof
    End caps with and without wire holes are included
    90°, 90° vertical, and 180° connectors are sold separately
    Installation: Recessed into 1/2" drywall
    Certifications: CE, ROHS
    Warranty: 5 years

    Includes:
    1 * Wall wash light channel with diffuser
    End caps(With and without wire holes)

    Applications:
    Architectural wall washing: Highlights wall textures, artwork, or decorative finishes
    Indirect lighting for interiors in hallways, staircases, hotels, galleries, and showrooms
