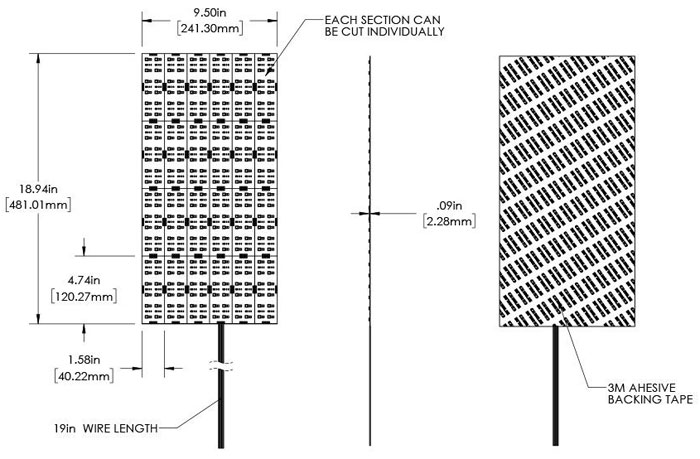

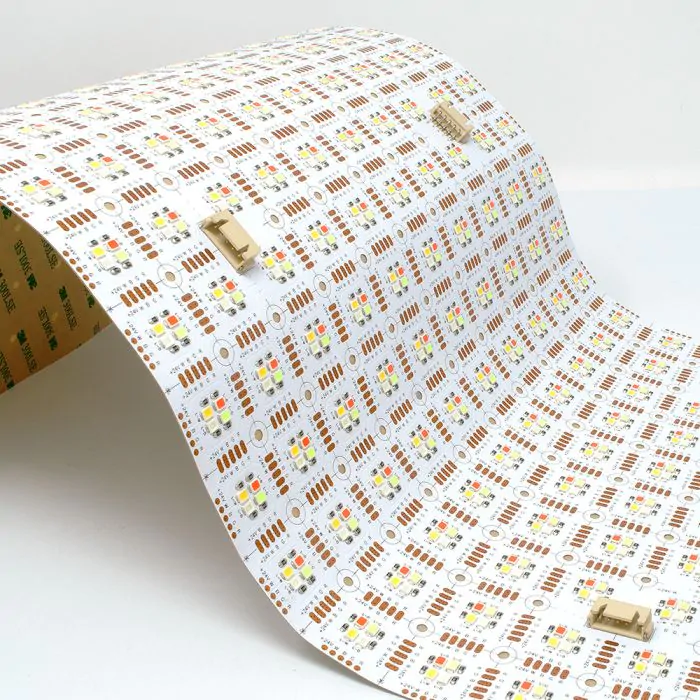

Wrap corners and trim to fit a unique shape with the RGB+CCT LED Light Sheet. The 18.9” x 9.5” sheet can be cut along the horizontal, vertical, or diagonal black lines of the 6 x 4 rows to customize the flexible sheet. Even in signs or backlighting with low clearance, the slim light sheet delivers powerful lighting, perfect for signage applications. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots. The light sheet is RGB+CCT and can display a range of RGB colors and 2700K-6500K.

Product Details:
Segment size: 4.72" x 1.57"- 24 segments per sheet
Max Run with Class 2 wiring: 1 sheet
PWM dimmable
24 VDC
UL Listed
5-year warranty

Specifications
Ambient Operating Temperature: -20 to 45 °C (-4 to 113 °F)
Certifications/Compliance: UL Listed
Color Temperature: Tunable CCT
CRI: 80+
Current Draw: 3.3 A
Dimensions: 18.9in x 9.5in
Dimmable: Yes
Dimmer Type: PWM
Efficacy:115 lm/W
Enclosed Fixture Rated: Yes
Environmental Rating: Non-weatherproof, Suitable for Dry Locations
Finish: White
Input Connection Type: Pigtail
IP Rating: IP20
LED Beam Angle: 120°
LED Color: RGB+Tunable CCT
LED Chip Type: 2835 SMD, 5050 SMD
LEDs per Segment: 36
LED Lifetime: 50000 Hours
Max Run (Class 2): 1 Sheet
Operating Voltage: 24 VDC
Segment Size: 4.72 in. x 1.57 in. (120 mm x 40 mm)
Wattage: 80 Watts
