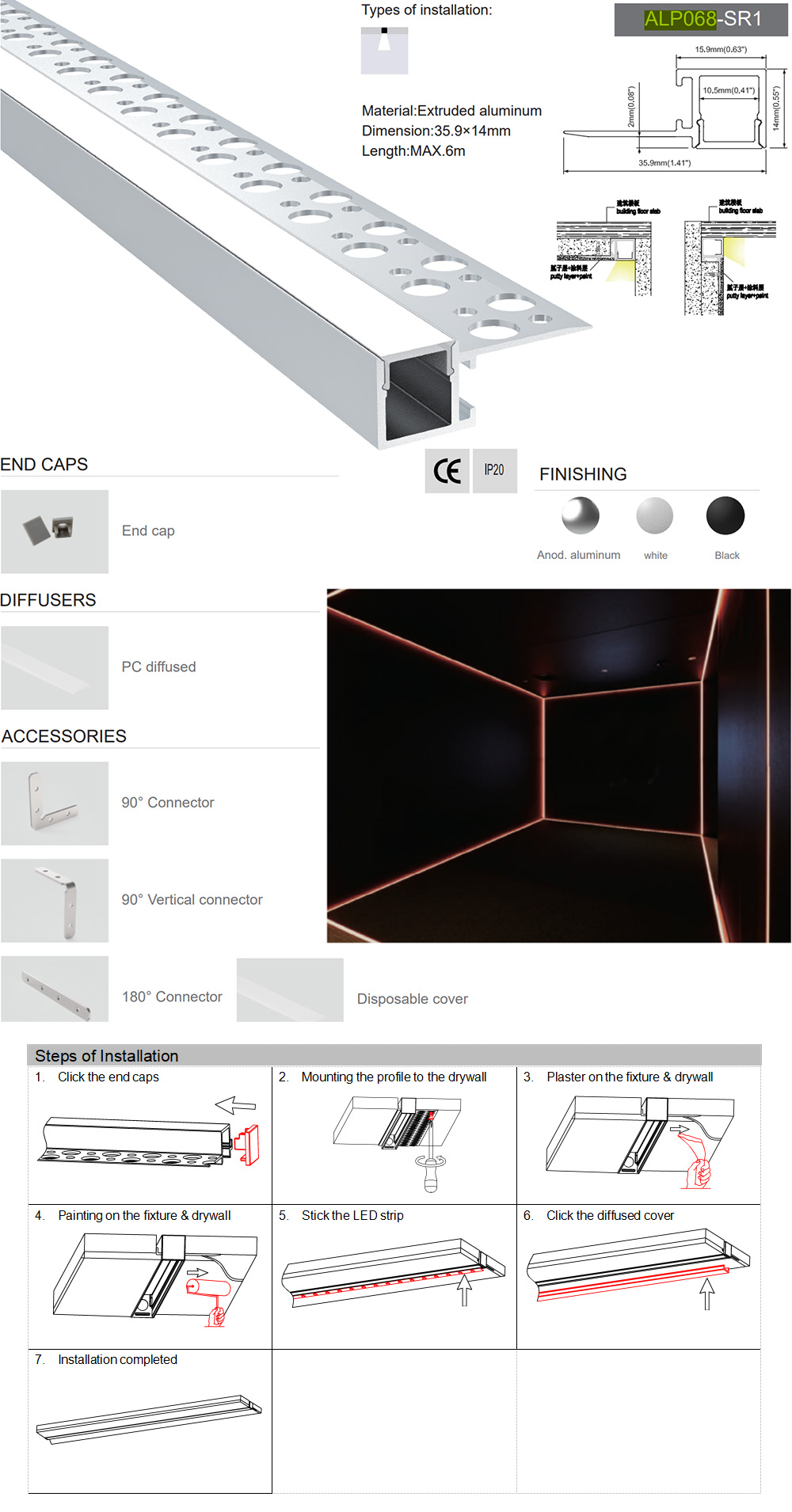

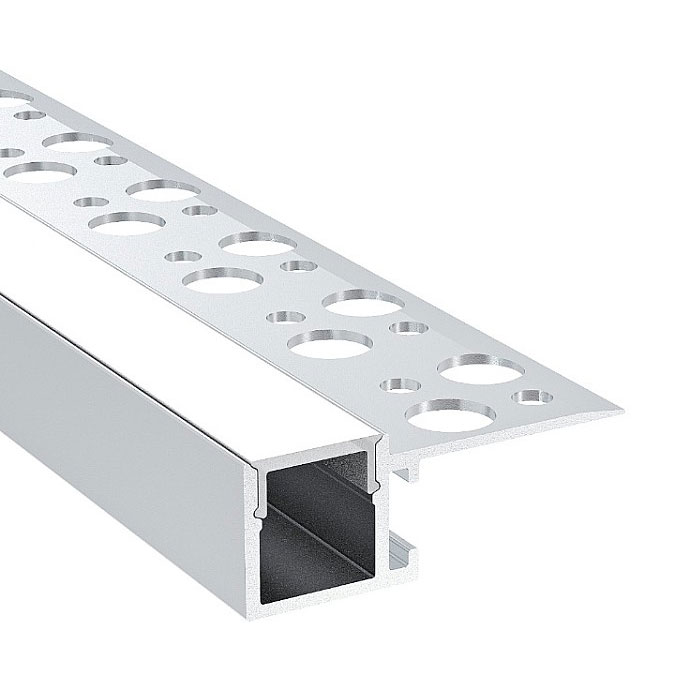

The F bead LED channels can be trimless recessed into drywall at edges or transitions for linear lighting. They are designed to accommodate and conceal LED strips, providing discreet, hidden lighting along the edges. Three joiners are available: 90°, 90° vertical, and 180°. You can use them for angled or straight connections. Aluminum housings are made from 6063-T5 aluminum material with anodized surface treatment, providing anti-oxidation resistance and a longer lifespan. The standard lengths are 1m and 2m, and custom lengths are also available. The inner width is 10.5mm, allowing the maximum width of COB LED stripes to be 10mm, creating seamless linear lighting. Aluminum LED reveal can be used as a heat sink for better heat dissipation. Only one type of diffuser is available: the PC diffused cover, which is made of brand-imported material, features anti-yellowing properties, provides perfect light distribution, and emits a soft light output. The end caps with wire holes are included.

Specifications:
Material: 6063-T5 extruded aluminum
Surface treatment: Anodized
Colors: Silver
Size( W x H): 35.9 mm x 14 mm ( 1.41" x 0.55" )
Standard lengths: 1 m ( 39" ), 2 m ( 78" ), 3 m ( 118" )
Custom lengths available: YES
Diffusers: PC diffused cover
Inner width: 10.5 mm ( 0.41" )
Max width of LED strip lights: 10 mm ( 0.39" )
Max power: 12W/m
Beam angle: 100°
Tolerance: ±1%
IP rate: IP20 non-waterproof
End caps with and without wire holes are included
90°, 90° vertical and 180° connectors are sold separately
LED strip lights, dimmers, and light drivers are sold separately
Installation: Plaster-in
Warranty: 5 years

Includes:
1 * F bead drywall LED channel with diffuser
End caps(with/without wire holes)

Applications:
Linear lighting in living rooms, hallways, corridors, and offices
Hidden linear LED lighting in recessed coves or trims
Ideal for modern interiors
