These LED strip channels can be seamlessly embedded into 5/8" gypsum boards or plasterboards for a trimless and clean finish. You can integrate them into walls or ceilings for indirect lighting applications. They feature a large reflective area that leads the lighting to floors, walls, or ceilings for smooth, uniform indirect illumination. Ideal for cove, perimeter, wall washer, baseboard, and ambient lighting. The gypsum LED channels are crafted from extruded aluminum and feature a white powder-coated surface treatment, providing enhanced oxidation resistance and extending their lifespan. The white finish also allows the light channels to blend seamlessly into the surrounding decoration, without visible edges. The standard lengths are 1 m and 2 m, and can be cut to any length to meet your needs. The inner width is 13.9 mm, allowing for a maximum strip light width of 13 mm. You can use our high-density LED COB tapes as the light source, eliminating hotspots. The aluminum profiles can serve as heat sinks for improved heat dissipation. Only one type of diffuser is available: the PC diffused cover, made of high-quality material for stable performance and resistance to yellowing, evenly diffuses the lighting without dark areas. Three types of connectors are available: 90°, 90° vertical, and 180°. You can use them for both angled and straight connections.

Specifications:
Material: 6063-T5 extruded aluminum
Surface treatment: Powder-coated
Material: Aluminum

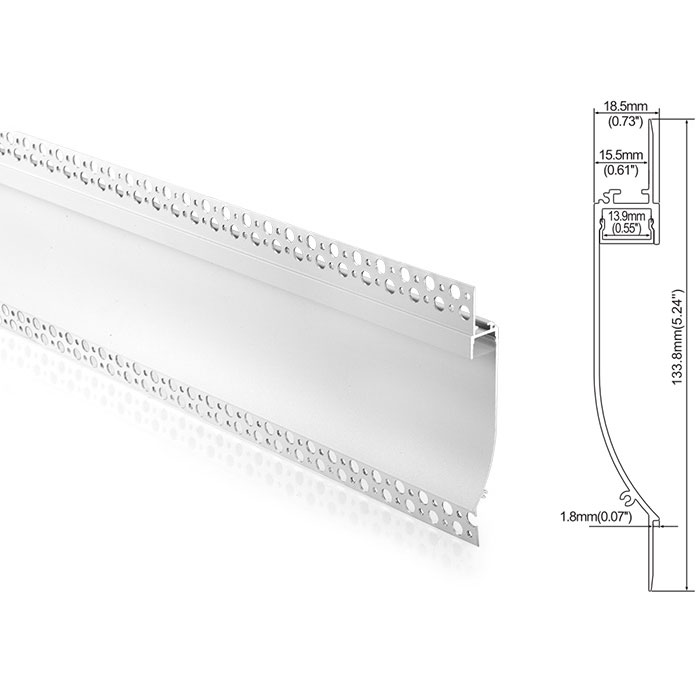

Size ( W x H ): 133.8 mm x 18.5 mm ( 5.24" x 0.73" )
Standard lengths: 1 m ( 39" ), 2 m ( 78" )
Custom length available: YES
Inner width: 13.9 mm ( 0.55" )
Allows the maximum width of strip lights: 12 mm ( 0.47" )
Max power: 15W/m
Diffusers: PC diffused cover

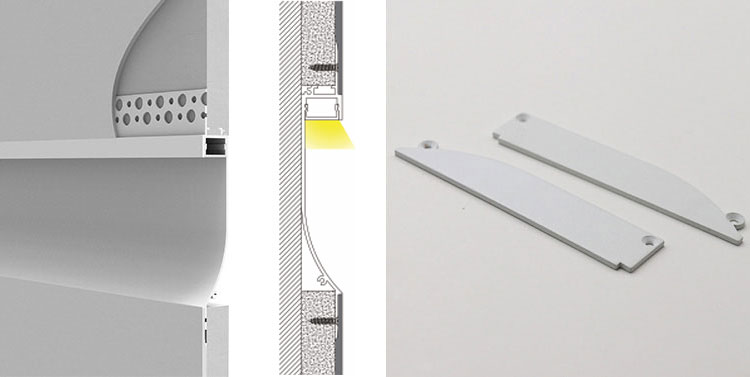

End caps with and without wire holes are included
90°, 90° vertical, and 180° connectors are sold separately

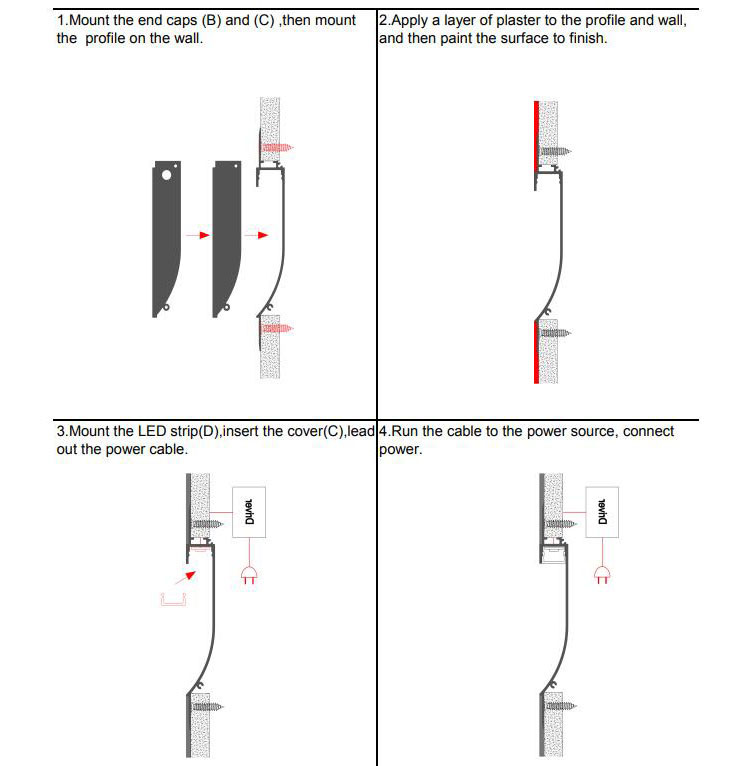

Installation: 5/8 inch plasterboard recessed
Warranty: 5 years
