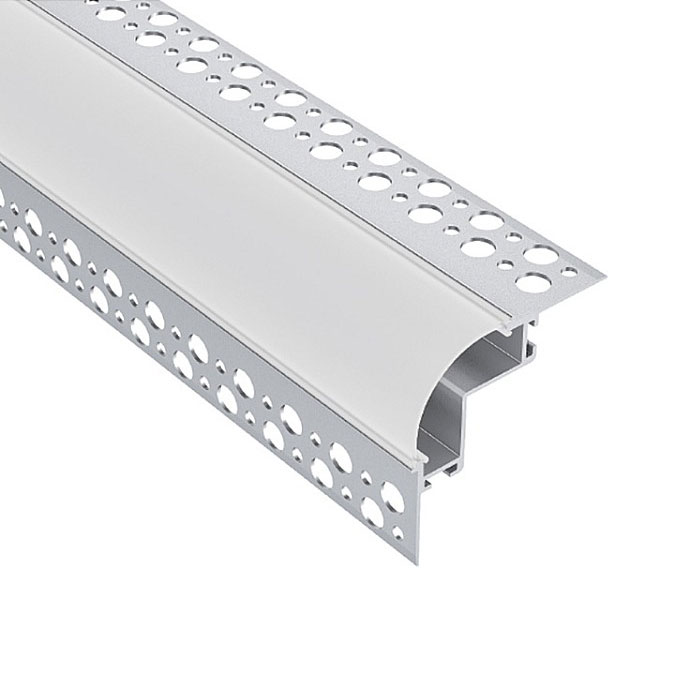

The mud-in rounded LED channels are designed for outside corner lighting. They can be flush-mounted with 12mm drywall, providing a clean, integrated look that complements drywall or plaster and eliminating visible edges. The rounded diffusers will deliver soft, uniform light with no harsh hotspots, creating an elegant ambient glow. They can work with 10 mm LED strips to effectively brighten corners, offering a discreet and stylish way to enhance the brightness of these areas. The mud in LED profiles is made of 6063-T5 extruded aluminum alloy, featuring an anodized finish that provides anti-oxidation resistance and long-lasting durability. The standard lengths are 1 m and 2 m, and they can be cut to any size to meet your needs. Two types of diffusers are available: PC diffused covers and PC semi-clear covers. They are made of brand material, are anti-yellowing, and have perfect light distribution. The inner width is 10.22 mm, which allows for a maximum width of flexible strip lights of 10 mm. We recommend installing dual lines of COB LED strips as the light source for consistent line lighting, ensuring uniform illumination without dark areas or light dots. The 180° light couplers are sold separately and can be used to connect two pieces of corner LED channels for long runs. The end caps with and without wire holes are included.

Specifications:
Type: outside corner LED channels
Material: 6063-T5 extruded aluminum
Surface treatment: Anodized
Colors: Silver
Size ( W x H ): 54.3 mm * 54.3 mm/2.14"*2.14"
Lengths available: 1 m (39"), 2 m (78"), 3 m (118")
Custom length: YES
Diffusers available: PC diffused cover, PC semi-clear cover
Inner width: 10.22 mm ( 0.4" )
Max LED strip width: 10 mm ( 0.39" )
Max power: 30W/m
Tolerance: ±1%
IP rate: IP20 non-waterproof
End Caps with/without wire hole included
180° couplers sold separately
Installation: Mud-in
Warranty: 5 years

Includes:
1 * Mud-in LED channel with diffuser
End caps(with / without wire hole)

Applications:
Wall-to-wall corner lighting: Adds continuous light along vertical outside corners for modern architectural accents.
Architectural accent lighting: Rounds and lights up structural corners, reducing sharp edges and highlighting interior design elements.
Seamless drywall integration: Designed for plaster-in installation, making the profile invisible except for the glowing light line.
Soft guiding light: Ideal for corridors, stairways, or reception areas where low-glare ambient lighting is desired.
