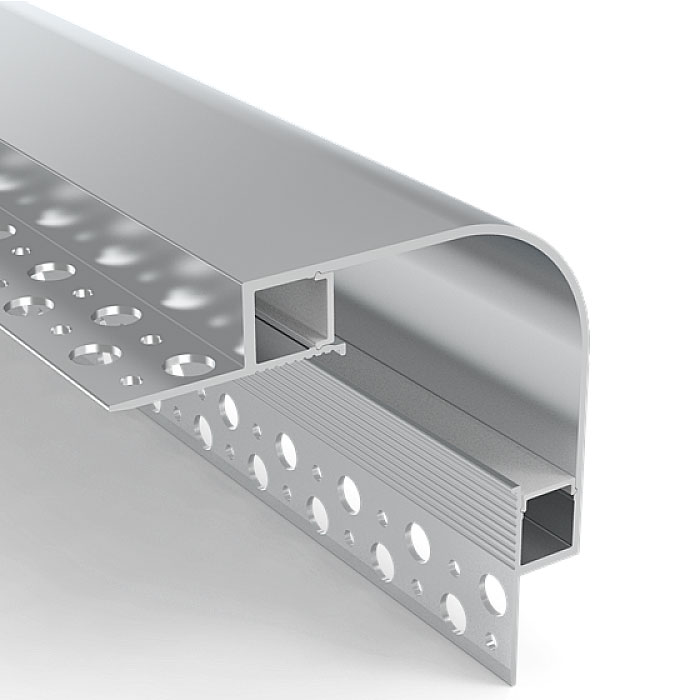

Recessed LED Strip Channels For 12.5MM Drywall - Recessed-Mount - For Strips Up To 10mm - 1m / 2m
The LED strip channels can be flush-installed with 12.5 mm plasterboards or gypsum boards in wall-to-ceiling corners for a clean, trimless look. They have two light slots and provide both horizontal and vertical wall illumination in wall-ceiling junction transitions, creating a soft wash of light to enhance aesthetics. The LED light channels are constructed from high-quality aluminum material and feature a powder-coated surface treatment for enhanced oxidation resistance, providing excellent heat dissipation for the LED lights. The white color allows them to blend perfectly into the architectural decoration. The standard lengths are 1 m and 2 m, and can be cut to any length to meet your needs. Only one type of diffuser is available: a PC diffused cover, made of imported brand material, that diffuses the emitting light of strip lights for perfect light distribution. The inner width is 10.3 mm, allowing for a maximum width of the COB LED strip light of 10 mm. End caps with and without holes are included.

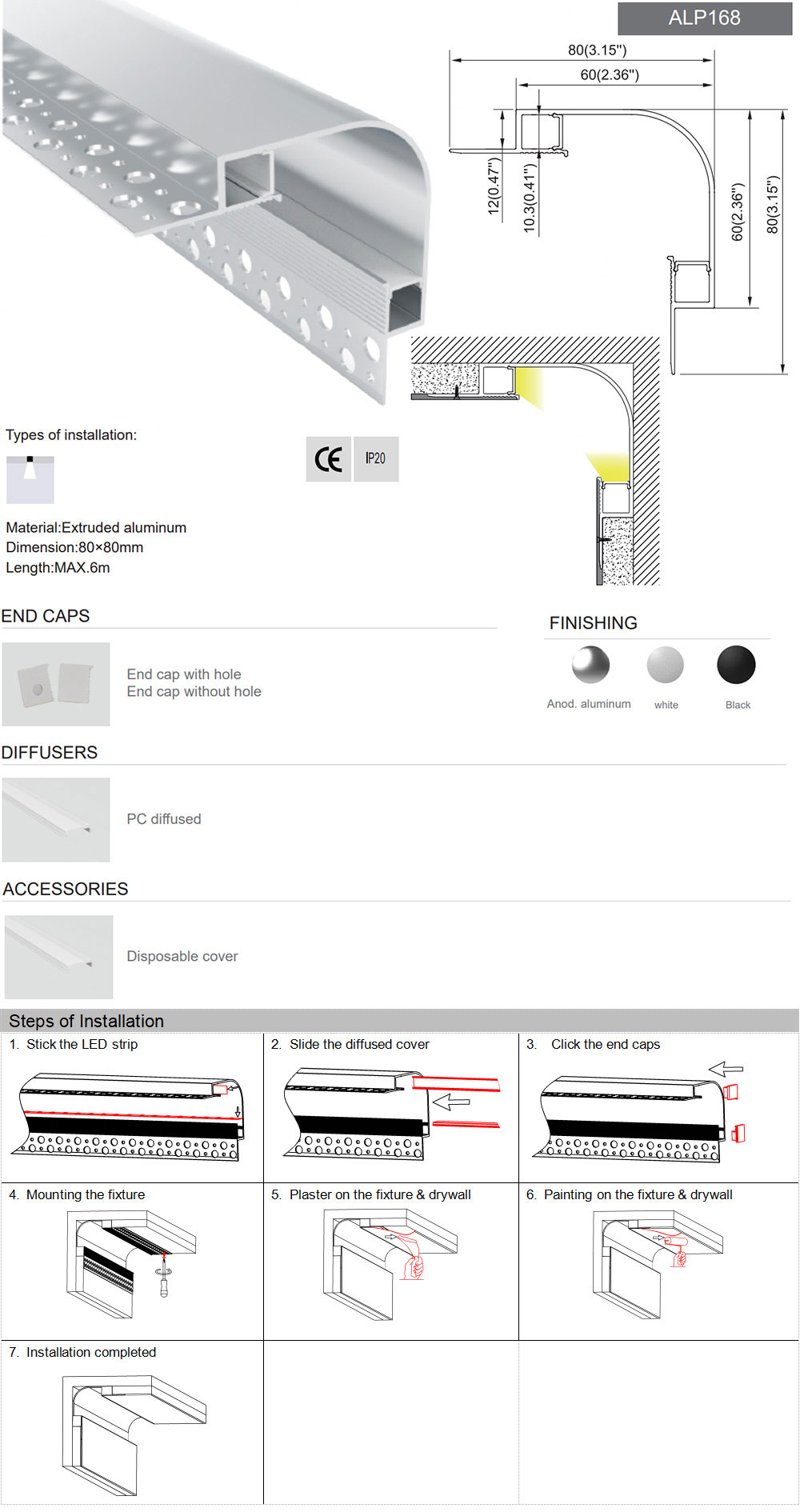

Specifications:
Material: Extruded aluminum
Surface treatment: Power-coated
Colors: Silver
Size ( W x H): 80 mm x 80 mm ( 3.15" x 3.15" )
Standard lengths: 1 m ( 39" ), 2 m ( 78" )
Custom length available: YES
Inner width: 10.3 mm ( 0.41" )
Maximum width of LED strips: 10 mm ( 0.39" )
Max power: 2 x 12W/m
Diffuser: PC diffused cover
Beam angle: 100°
Tolerance: ±1%
IP rating: IP20 non-waterproof
End caps with and without wire holes are included
Installation: 1/2" drywall recessed
Applications: Cove, ambient, accent, and architectural lighting
Certifications: CE, ROHS
Warranty: 5 years
Includes:
1 * LED strip lighting channel with diffuser
End caps(With / without wire holes)
