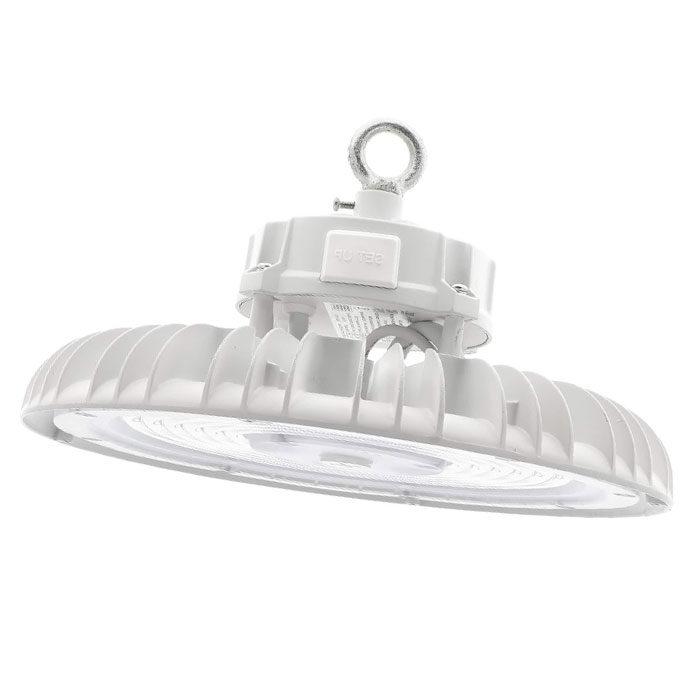

This white LED UFO High Bay features a sensor-ready port to enable automatic operation with an optional daylight harvesting motion sensor. This high bay offers versatile lighting with selectable wattage (80W, 120W, 150W) and color temperature (3000K, 4000K, 5000K) for various industrial and commercial applications. Set the wattage and CCT using the selection switches on the side of the fixture. Its 24,000-lumen output and wide 90° beam angle are ideal for high-mounted locations in large areas. Each fixture features a die-cast aluminum, corrosion-resistant housing, a white finish, and a clear polycarbonate lens. The optional polycarbonate reflector reduces glare and shadows while directing light downward toward warehouse shelving. The reflector installs easily with four stainless steel M4 6mm screws (included). Mount the aluminum high bay fixture using the included safety cable and the stainless steel eye bolt.

Product Details:
White powder-coated aluminum housing with polycarbonate lens
Stainless steel eye bolt for mounting
IP65 waterproof, suitable for wet locations
0-10V dimmable
100-277 VAC
Surge protection: L-N: 6kV, L/N-PE: 6kV
DLC 5.1 Premium
UL Certified
5-year warranty

Specifications
Ambient Operating Temperature:-30 to 50 °C (-22 to 122 °F)
Beam Angle:90°
CCT: 3000K, 4000K, 5000K, Selectable CCT
Certifications/Compliance: Certified by UL, DLC Premium, IK08
Current Draw: 740 mA/1.1/1.3 A @ 120 VAC, 320/480/600 mA @ 277 VAC
Dimmable:Yes
Dimmer Type: 0-10V
DLC Product: IDS-5JDQGN
Efficacy:160 lm/W
Environmental Rating: Suitable for Wet Locations, Waterproof
Equivalency:175 Watt Metal Halide, 250 Watt Metal Halide, 400 Watt Metal Halide
Finish:White/Black
Input Connection Type:Pigtail
IP Rating: IP65
LED Color:Warm White, Natural White, Cool White, Selectable CCT
Rated Life (L70):50000 Hours
Lumens:12800 Lumens, 19200 Lumens, 24000 Lumens
Microwave Motion Sensor:Optional
Operating Voltage:100-277 VAC
Power Facto:r≥0.9
Product Materials:Aluminum Housing, Polycarbonate Lens, Stainless Steel Bolts
Warranty:5 Year
Wattage:Selectable Wattage, 80 Watts, 120 Watts, 150 Watts
Wire Gauge:18 AWG (L/N/G), 22 AWG (dimming)
