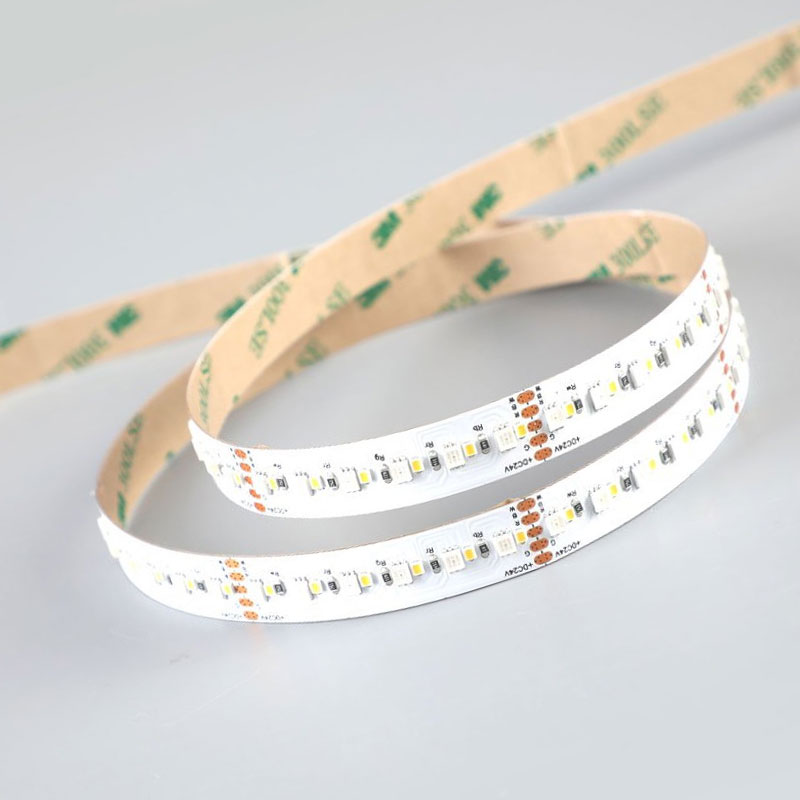

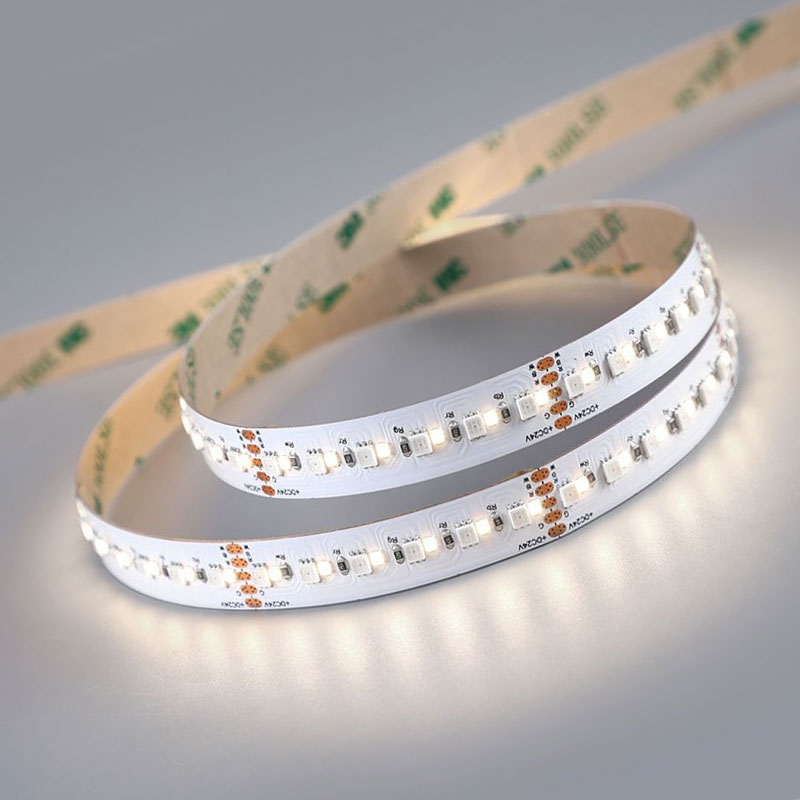

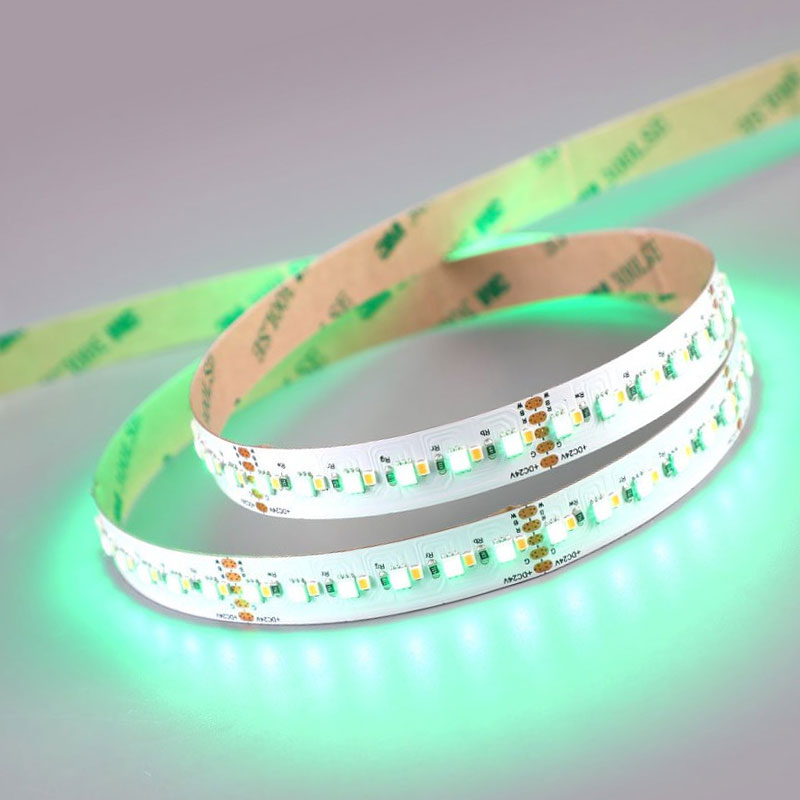

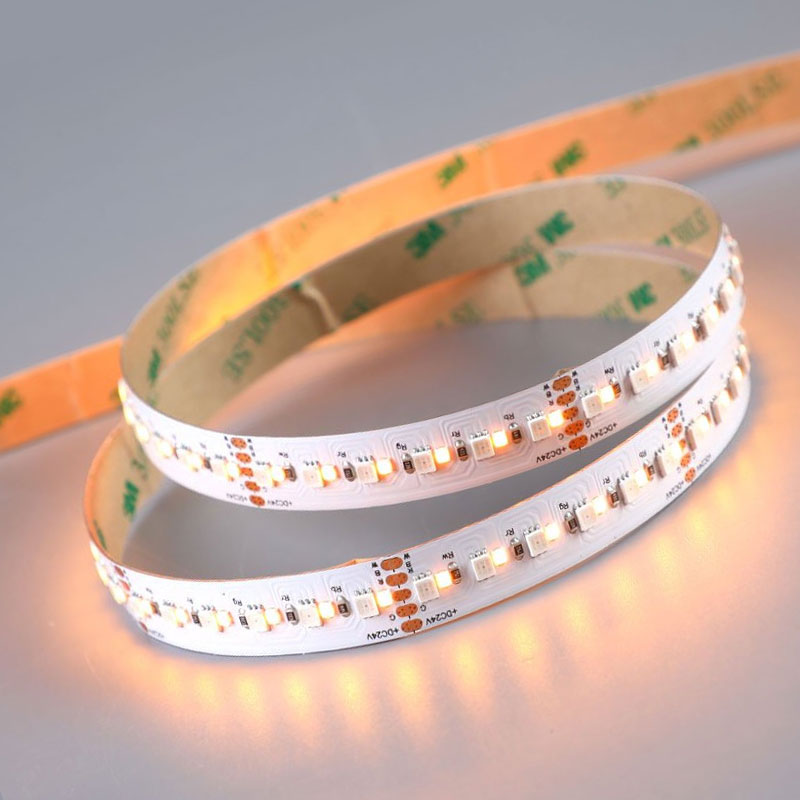

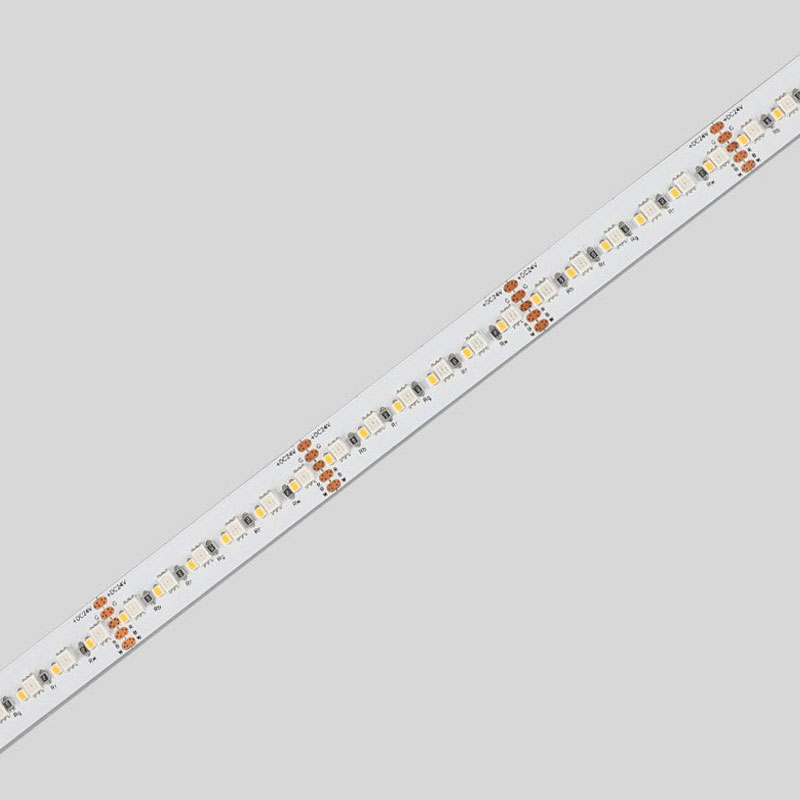

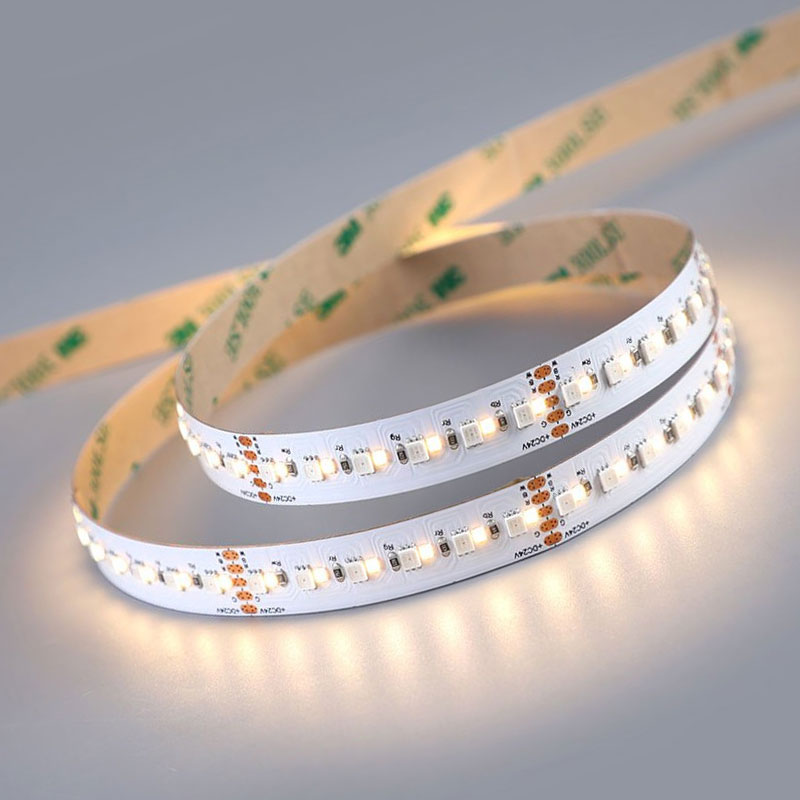

Creat bright colour changing displays with our Professional High Definition RGB+W 24V LED strip light. Dedicated white LED chips plus RGB chips produce a >90 CRI light output and the seperate white chip results in improved binning accuracy. High LED density of 240 LEDs per metre with a slip of 120 RGB chips and 120 white chips. The LED density will produce a spot-free continuous light in most of our LED profiles. A 120° beam angle and up to 1109lm per metre make it a perfect RGB+W solution for professional installations.

Part of the Professional High Definition range it features 2x 500mm pre-attached cables. These cables have tinned ends making them suitable for soldering straight away. Capable of achieving up to 5 metres of light when powered from one end.

This product benefits from our 1-BIN guarantee. This guarantee provides reassurance that all the LED chips have come from the same manufacturing bin, ensuring no colour variation across batches.

Available in colour options RGB+1800K, RGB+2700K, RGB+3000K, RGB+4000K and RGB+6500K. Comes as a 5 metre reel as standard and can be cut to your required length using the cut points which are located at 50mm intervals.

Our Professional High Definition LED Strip Light is manufactured using high quality materials and components. The seperated white LED chips result in a far better binning accuracy and SDCM rating while also improving efficacy and CRI values. Its ideal for professional installations where high density RGB+W colour needs to be achieved.

Installation:
Available in IP20 making it suitable for indoor installation. All our flexible LED strip lights feature an adhesive backing. Remove the protective backing and stick to a surface ensuring it is smooth and clean.

We recommend installing our LED strip lights within a LED Profile. These offer protection for the strip lights and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.

Features:
Voltage: 24V
Max. Power: 20.0W/m
LEDs per metre: 240 LEDs
Cut Points: 50mm
CRI: >90
Beam Angle: 120°
SDCM: <3
PCB Weight: 2oz
Lumens: Up to 1109lm/m
Warranty: 7 Years
1BIN Guarantee

Product Specification
Colour:    RGB+1800K, RGB+2700K, RGB+3000K, RGB+4000K, RGB+6500K
Voltage:    24V
Length:16.4 ft (5 m)
Amps per Metre:    0.83 Amps p/m
Watts Per Metre:    20.0 Watts p/m
Cut Points:    50mm
CRI:    90
SDCM:    3
Lumens Per Metre:    Up to 1109lm/m
LEDs Per Metre:    240
Tape Width:    12mm
Water Resistance:    IP20
Min Operating Temperature:    -25°C
Max. Operating Temperature:    40°C
Energy Rating:    -
Warranty:    7 Years
Warranty (Years):    7
Dimmable:    Yes
Energy Efficiency Class:    -
Max. Run Length (m):    5
Ingress Protection (IP):    20
Interior or Exterior Use:    INTERIOR
Input Current Type (A):    DC
Input Voltage Min. - Max (V):    24-24V
Cable Length (m):    500
Copper Foil Weight (oz):    2
Cut Points (mm):    50
LEDs Per Metre (LEDs/m):    240
Product Height (mm):    2
Depth (mm):    5000
Width (mm):    12
Beam Angle (°):    120
Operating Temperature Min. - Max. (°C)：    -25℃ to 40℃
Dimensions LxWxH (mm)：    5000x12x2
Body Colour：    White
Family Name：    High Definition
Bend Direction：    Vertical
Bin Number：    1
Cable Length (mm)：    500
