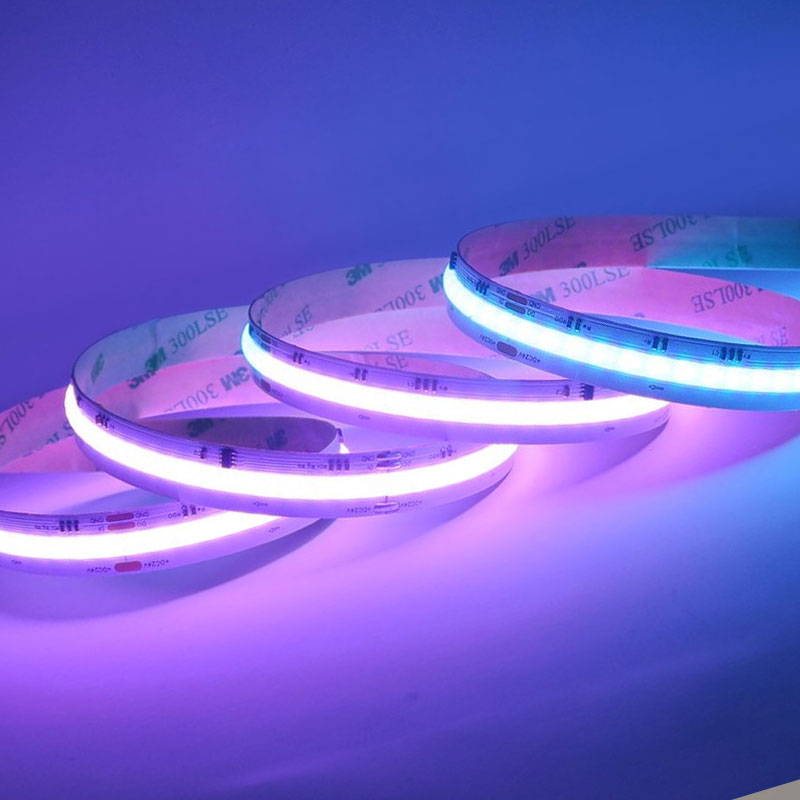

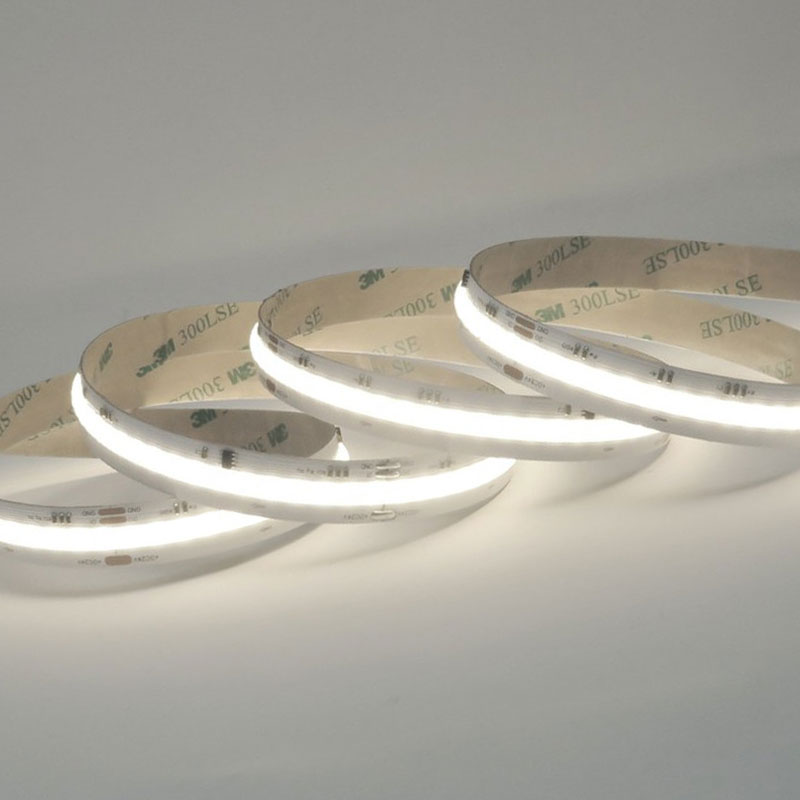

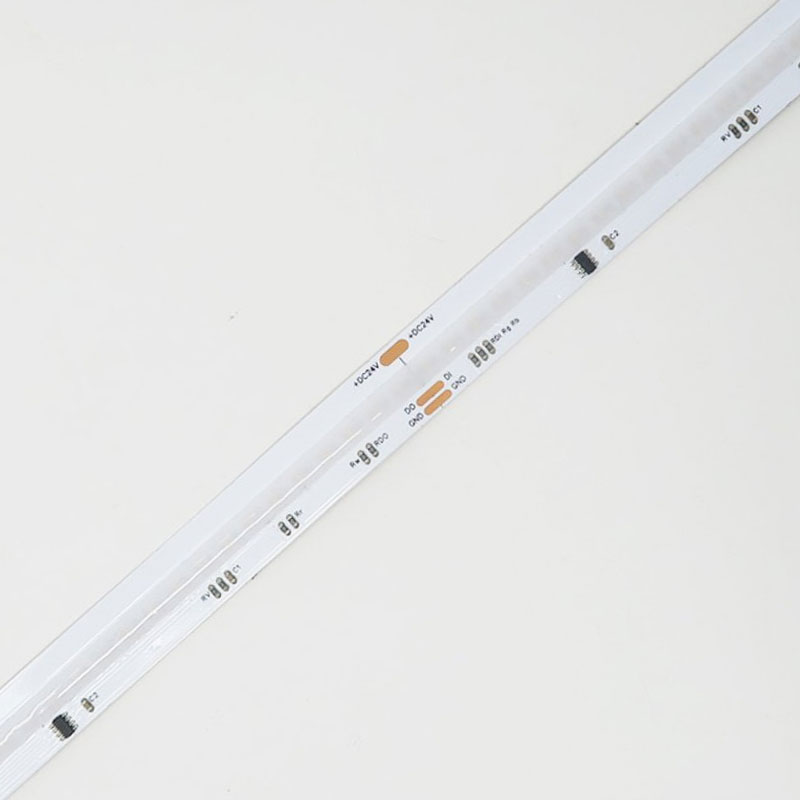

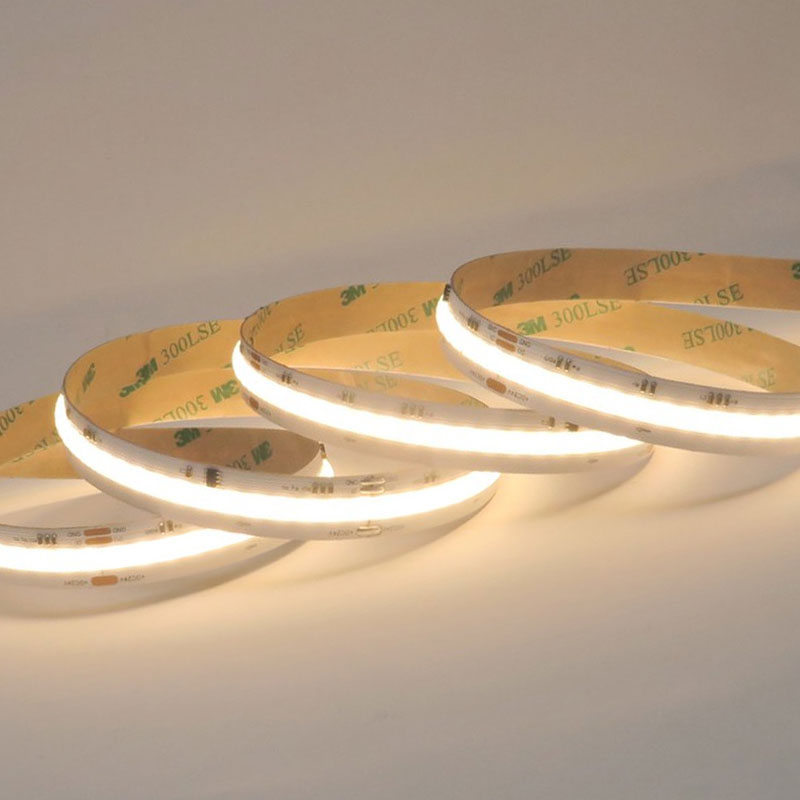

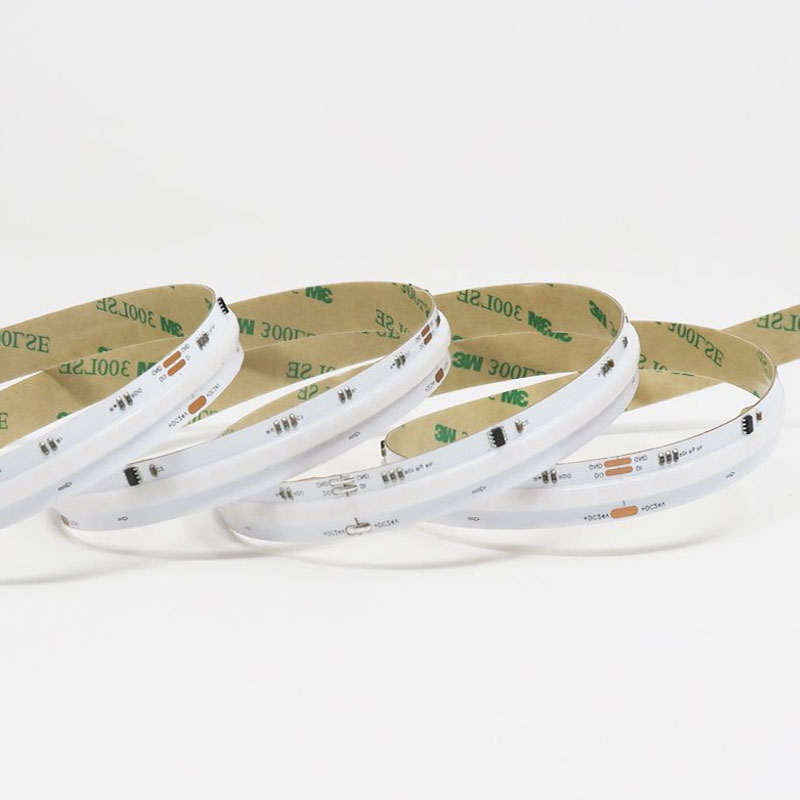

Introducing our Colour Changing RGB+W Continuous Digital Pixel LED Strip Light. Pair with our Digital Pixel LED Controller to achieve light chasing effects. Featuring 840 LEDs per metre and 10 Pixels per metre, this LED strip light has 10 controllable sections within a 1 metre length. The phosphur coating allows the strip light to achieve a seamless, continuous, spot free light output. Compatible with WS2814 pixel protocol which is commonly used in the pixel lighting industry. A 140° beam angle and brightness of up to 300lm per metre make it perfect for a variety of installations.

Part of the Toning Digital Pixel range it features 2x 500mm pre-attached cables. These cables have tinned ends making them suitable for soldering straight away. Capable of achieving up to 5 metres of light when powered from one end.

Available in both RGB+3000K and RGB+6000K. Comes as a 5 metre reel as standard and can be cut to your required length using the cut points which are located at 100mm intervals.

Our Toning Digital Pixel LED Strip Light is manufactured using high quality materials and components and comes with a 2 year warranty as standard.

Installation:
Available in IP20 making it suitable for indoor installation. All our flexible LED strip lights feature an adhesive backing. Remove the protective backing and stick to a surface ensuring it is smooth and clean.

We recommend installing our LED strip lights within a LED Profile. These offer protection for the strip lights and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.

Features:
Voltage: 24V
Max. Power: 16.0W/m
LEDs per metre: 840 LEDs
Pixels per metre: 10 Pixels
Cut Points: 100mm
CRI: >80
Beam Angle: 140°
PCB Weight: 4oz
Lumens: Up to 300lm/m
Warranty: 2 Years

Product Specification
Warranty (Years):    2
Control Signal - Input:    SPI
Dimmable:    Yes
IC Type:    WS2814
Energy Efficiency Class:    G
Rated Life (Hours):    50000
Current Max. Rated (A):    3
Max. Wattage @ Max. Run Length (W):    75
Anti-Yellowing:    Yes
Application Environment:    DOMESTIC, HOSPITALITY, EVENTS, AV
Ingress Protection (IP):    20
Saltwater Resistant:    No
Solvent Resistant:    No
Storage Humidity Max. (°C):    50
UV Resistant:    Yes
Working Humidity Max. (°C):    70
Anti-Glare Shield:    No
Input Voltage Min. - Max (V):    24-24V
Body Colour:    White
Cable Both Ends:    Yes
Cable Length (m):    500
Cable Weight (AWG):    20
Chip Type:    COB
Connector Type:    BARE END
Cut Points (mm):    100
LED Module Replaceable:    NO
LED Pitch (mm):    1.19
LEDs Per Metre (LEDs/m):    840
Min. Bend Radius (mm):    50
PCB Type:    FLEXIBLE
Length:16.4 ft (5 m)
Pixels Per Metre (Pixels/m):    10
Product Height (mm):    2
Product Weight (g):    150
Width (mm):    12
Constant Voltage / Constant Current:    CV
Beam Angle (°):    120
Bin Number:    2
CRI:    80
Total Lumens (Lm):    3587
SDCM:    5
Electrical Safety Class:    III
Operating Temperature Min. - Max. (°C):    -20℃ to 55℃
Self Adhesive (Brand & Model Number)：    3M-300LSE
Certification：    EMC - 2014/30/EU
Bend Direction：    Vertical
Cable Sheath Material：    PVC
Depth (mm)：    5
Dimensions LxWxH (mm)：    5x12x2
Max. Run Length (m)：    5
Family Name：    Pixel COB
Cable Length (mm)：    500
