Introducing our Single Colour Digital Pixel LED Strip Light. Pair with our Dual Function Pixel LED Controller to achieve light chasing effects. Featuring 120 LEDs per metre and 6 Pixels per metre, this LED strip light has 6 controllable sections within a 1 metre length. Compatible with WS2811 pixel protocol which is commonly used in the pixel lighting industry. A 120° beam angle and brightness of up to 707lm per metre make it a perfect for a variety of installations.

Part of the Toning Digital Pixel range it features 2x 500mm pre-attached cables. These cables have tinned ends making them suitable for soldering straight away. Capable of achieving up to 5 metres of light when powered from one end.

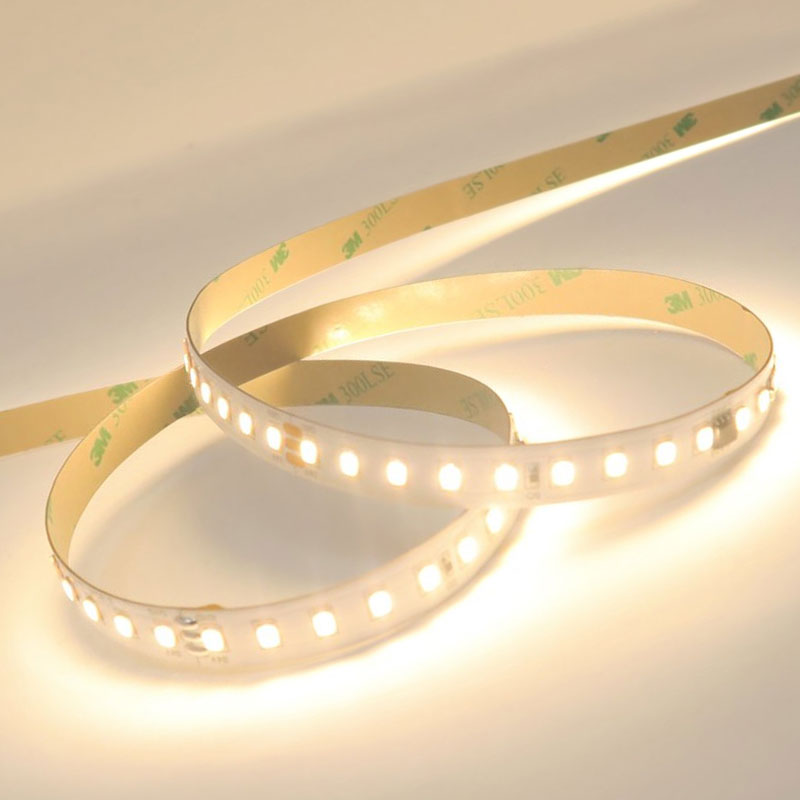

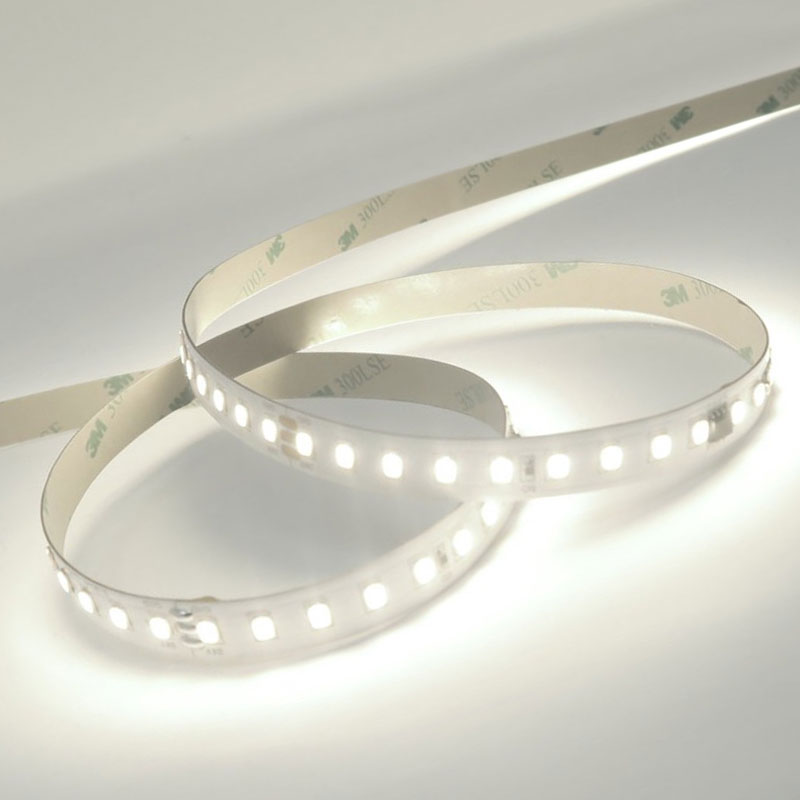

Available in both Warm White 3000K and Cool White 6000K. Comes as a 5 metre reel as standard and can be cut to your required length using the cut points which are located at 166.6mm intervals.

Our Toning Digital Pixel LED Strip Light is manufactured using high quality materials and components and comes with a 2 year warranty as standard.

Installation:
Available in IP20 making it suitable for indoor installation. All our flexible LED strip lights feature an adhesive backing. Remove the protective backing and stick to a surface ensuring it is smooth and clean.

We recommend installing our LED strip lights within a LED Profile. These offer protection for the strip lights and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.

Features:
Voltage: 24V
Max. Power: 8.0W/m
LEDs per metre: 126 LEDs
Pixels per metre: 6 Pixels
Cut Points: 166.6mm
CRI: >80
Beam Angle: 120°
PCB Weight: 3oz
Lumens: Up to 707lm/m
Warranty: 2 Years

Product Specification
Colour:    3000K, 4000K, 6000K
Voltage:    24V
Length:16.4 ft (5 m)
Water Resistance:    IP20
Watts Per Metre:    8.0W/m
Amps Per Metre:    0.125A/m
Lumens Per Metre:    Up to 707lm
Tape Width:    10mm
Cut Points:    166.6mm
LEDs Per Metre:    126 LEDs
Pixels Per Metre:    6 Pixels
IC Type:    WS2811
PWM Rate:    2000Hz
PCB Colour:    White
PCB Weight:    3oz
Warranty:    2 Years
Warranty (Years):    2
Ingress Protection (IP):    20
Input Current Type (A):    DC
Input Voltage Min. - Max (V):    24-24V
Body Colour:    White
Cable Length (m):    500
Copper Foil Weight (oz):    3
Cut Points (mm):    166.6
LEDs Per Metre (LEDs/m):    126
Pixels Per Metre (Pixels/m):    6
Product Height (mm):    2
Depth (mm):    5000
Width (mm):    10
CRI:    80
Dimensions LxWxH (mm):    5000x10x2
Max. Run Length (m):    5
Family Name:    Pixel SMD
Bend Direction:    Vertical
Cable Length (mm):      500
