This feature‑rich, compact 18 W LED downlight suits both domestic and commercial ceilings. It measures 103 mm in diameter and requires a 95 mm cut‑out. Ensure a ceiling void of at least 130 mm and do not cover the unit with thermal insulation to prevent heat build‑up.

Control the downlight via the Mi‑Boxer 2.4 G wireless system or Zigbee protocols through a Zigbee Gateway.. Each unit relays its control signal to the next, forming a seamless mesh network. Lights may be grouped into separate zones or synchronised as a whole to deliver uniform ambience throughout any space.

This anti‑glare downlight offers full colour‑changing capability, providing millions of different hues. The white light colour temperature adjusts between cool white (6500 K) and warm white (2700 K), enabling precise customisation for each application.

A Do Not Disturb (DND) mode is incorporated. The unit may be configured to resume its previous settings or to restore full brightness whenever power returns. This feature maintains consistent performance after interruptions.

With an IP 54 rating, these anti‑glare LED downlights are suitable for wet or damp locations, including kitchens and bathrooms. Their design minimises reflective glare, ensuring comfortable, focused lighting even in work‑intensive or relaxation areas.

Installation proves straightforward. Simply insert the downlight into the prepared ceiling hole and secure it with the integrated spring clips. Place the driver and cables within the void before anchoring to complete the fitting.

For additional details on this product or on our comprehensive LED‑lighting range, please contact our technical sales team via phone, email, live chat or WhatsApp on our website. Our experts will advise on product selection, installation guidance and control‑system integration.

Features:
Supports both 2.4G & ZIGBEE 3.0 Control
Supports TUYA SMART app control
Bright 18W LED with a 60º Beam angle (Anti-Glare)
Supports Alexa & Google Assistant (ZIGBEE Gateway)
Wireless Auto-synchronisation between units
Auto-forwarding of remote-control signal
Adustable DND function for loss of power
IP54 Water Resistant
5 Year Guarantee

Specifications
Input Voltage:    AC100~240V 50/60Hz
Power:    18W
PF:    ＞0.5
CRI:    ＞80
Color temperature:    2700~6500K
Luminous Flux:    1600LM
Luminous efficiency:    90LM/W
Beam Angle:    60°
RF:    Zigbee 3.0 + 2.4GHz RF
Control Distance:    Zigbee: 50M(open area)/ 2.4G RF: 30M
IP rate:    IP54
Working Temperature:    -10~40℃
Hole Size:    95mm
Dimming Grayscale:    4096 Levels
Dimming Range:    0.1%-100%
Dimming Curve:    Logarithmic
EMC Standard (EMC):    ETSI EN301 489-1 v 2.2.3 (2019-11);
ETSI EN 301 489-3 v 2.3.2 (2023-01)
Safety Standard (LVD):    EN IEC 60598-1:2021+A11:2022;
EN 60598-2-2:2012;
EN IEC 62031:2020+A11:2021;
EN 62493:2015+A1:2022
Radio Equipment (RED):    ETSI EN 300 440 V2.2.1
Certification:    CE, EMC, LVD, RED

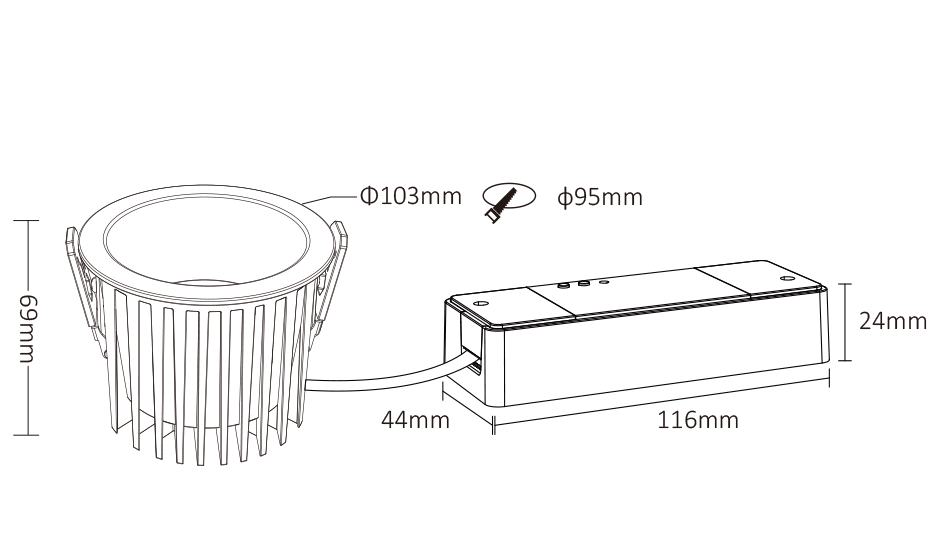

Dimensional Drawings:
