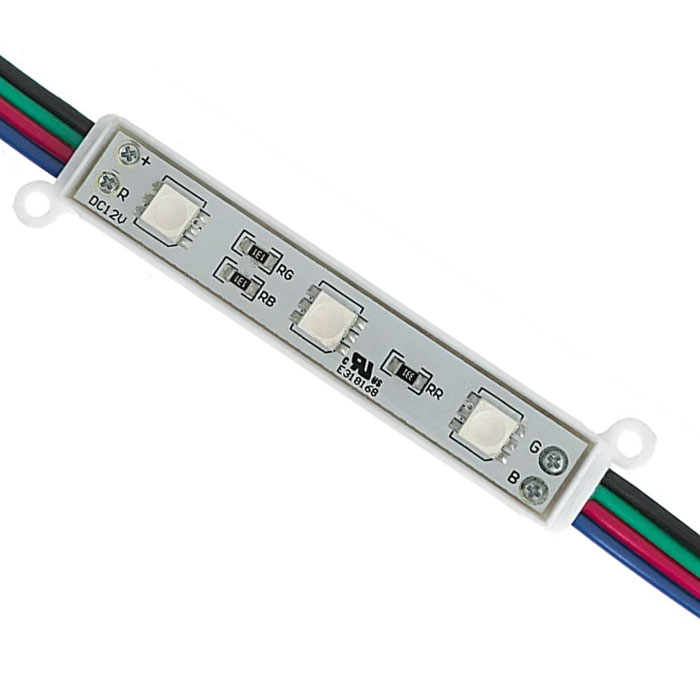

These RGB LED light modules provide consistent illumination for channel letters, sign lighting, under-cabinet lighting, store window lighting, display case lighting, and trade show lighting. Modules are available in 20, 50 , or 100-packs, stranded together upon purchase. Strands are wired together with 3.20" spacing between each module (up to 20 modules per strand). Each LED module has 3 LEDs and emits up to 22 lumens. LEDs emit a wide 120° beam pattern that is best suited for illuminating up to 9" wide channel letters that are as shallow as 3". The narrow PVC module is injection molded with two (2) 0.11" screw holes for mounting in extreme cold or heat. Double-sided 3M adhesive foam tape is also included for secure mounting. The waterproof module has 12V DC operation and is designed to last 40,000 hours. Choose a compatible RGB controller for color control options.

Product Details:
Each linear module measures 2.77”x0.49”
Constant current driver maintains brightness
Wire pigtail connections
IP67 waterproof
12 VDC
5-year warranty

Specifications
Beam Angle: 120°
Connection Type: Pigtail
Constant Current: No
Current Draw: 1.5 A
Lumens Per Module: 22 lm/module
Max Run (# of Modules): 25
Operating Temperature: -25 to 60 °C (-13 to 140 °F)
Standards And Certifications: UL Recognized
Voltage: 12 VDC
