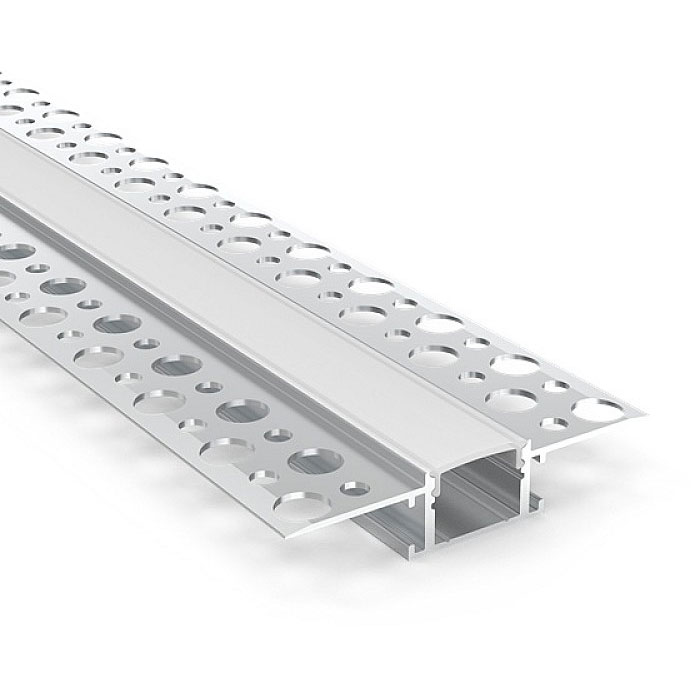

The aluminum strip light channels can be embedded into drywall ceilings and walls for a seamless edge. The inner width is 15.2 mm and can accommodate a maximum strip light width of 15 mm, delivering uniform and glare-free illumination. You can choose the PC diffused covers or black PC covers to suit your lighting style and ambiance. The diffused covers are anti-yellowing resistant, ensuring perfect light distribution and a soft, even lighting effect. Making them ideal for minimalist and modern interior designs. The drywall LED profiles are constructed from durable extruded aluminum and feature an anodized surface treatment for oxidation resistance, extending their lifespan. The aluminum channels can also serve as heat sinks to enhance heat dissipation and prolong the lifespan of LED strips. The stock length is 2 meters per piece, and can be cut to any length to meet your needs. We accept custom lengths. There are three types of joiners available: 90-degree, 90-degree vertical, and 180-degree. You can use them to connect the LED channels horizontally or vertically for longer runs.

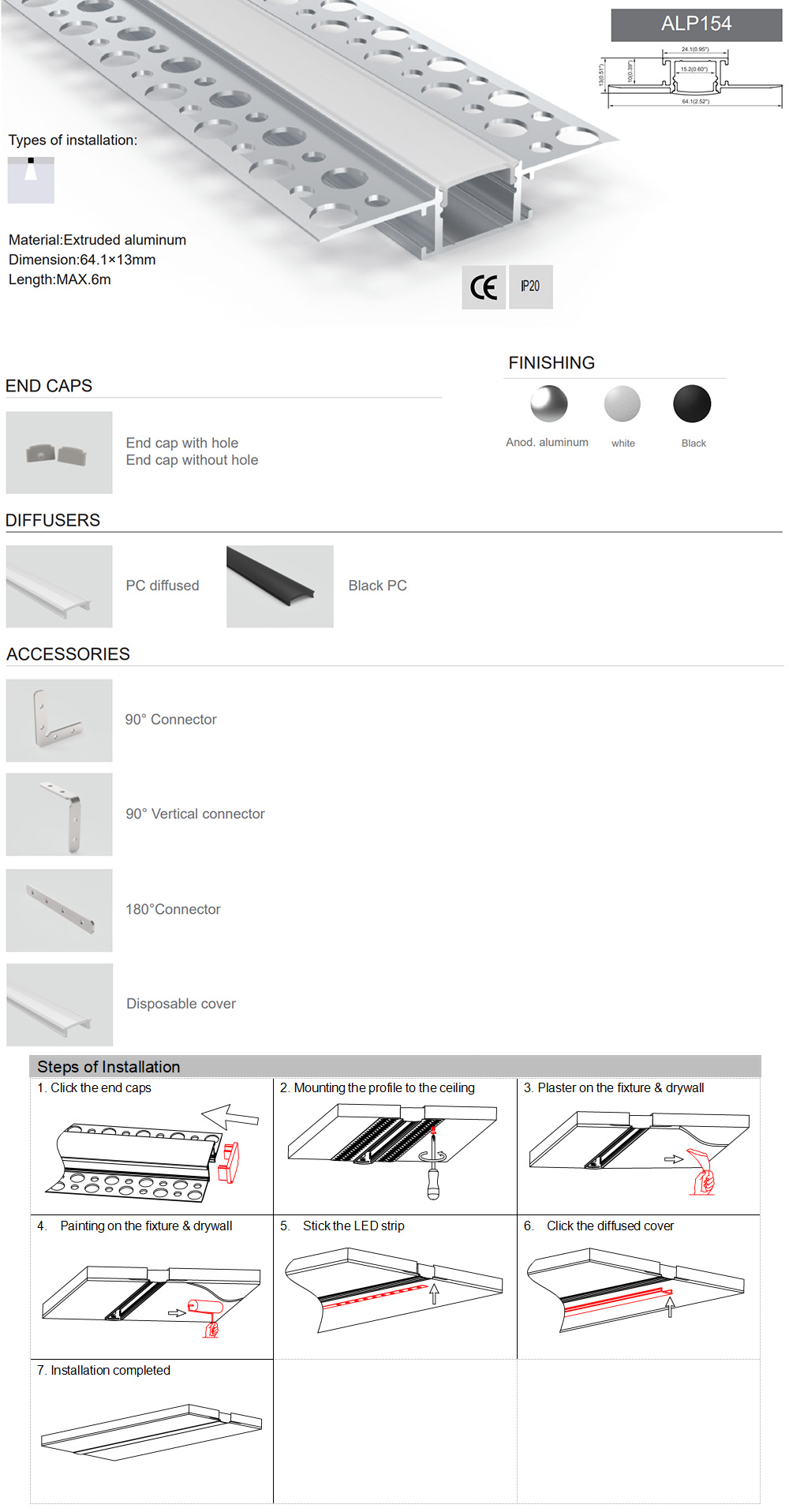

Specifications:
Material: 6063-T5 extruded aluminum
Surface treatment: Anodized
Colors: Silver
Size ( W x H ): 64.1 mm x 13 mm ( 2.52" x 0.51" )
Standard lengths: 1 m ( 39" ), 2 m ( 78" )
Custom length available: YES
Inner width: 15.2 mm ( 0.6" )
Max width of strip lights: 15 mm ( 0.59" )
Max power: 15W/m
Diffusers: PC diffused cover, black PC cover
Beam angle: 100°
Tolerance: ±1%
IP rating: IP20 non-waterproof
End caps with and without holes are included
90°，90° vertical, and 180° connectors are sold separately
Installation: Plaster-in
Warranty: 5 years

Includes:
1 x Linear lighting channel and diffuser
End cap with and without wire holes

Applications:
Drywall ceiling & wall lighting
Mood or ambient lighting in living rooms, hotels, or offices
Interior accent lighting
Retail & Hospitality task or ambient lighting
