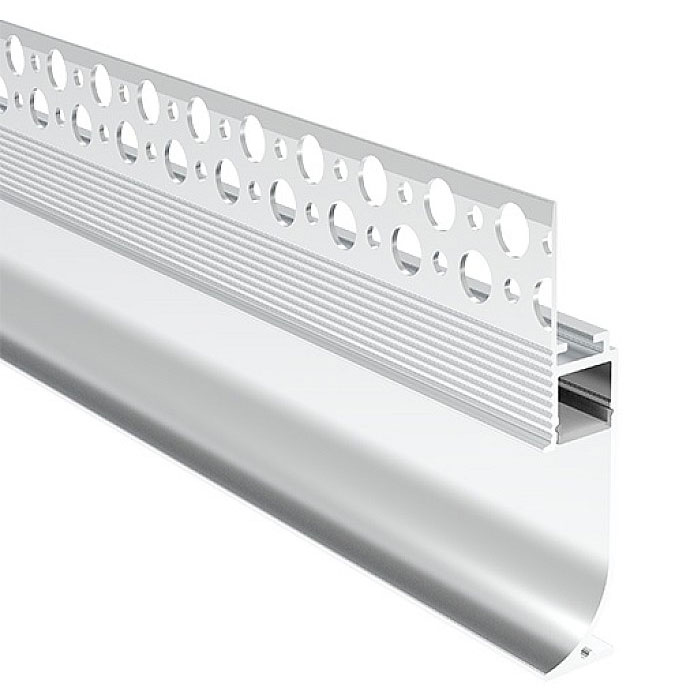

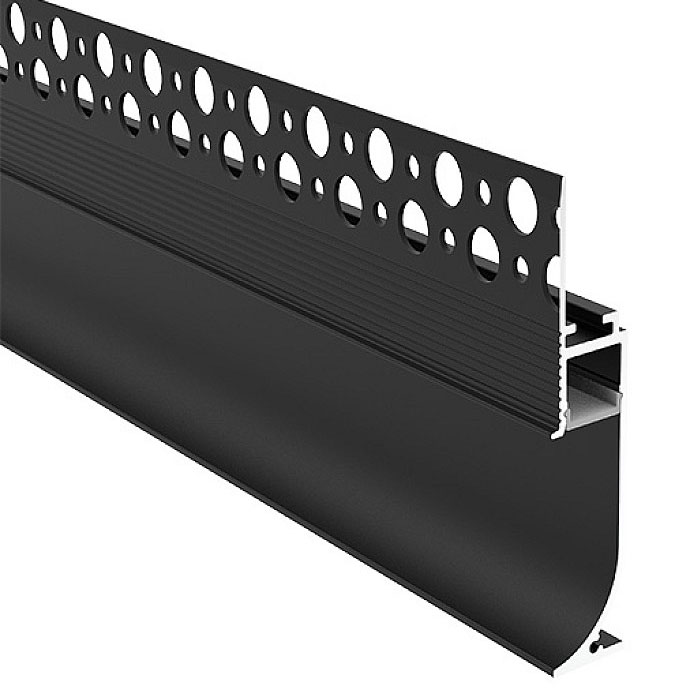

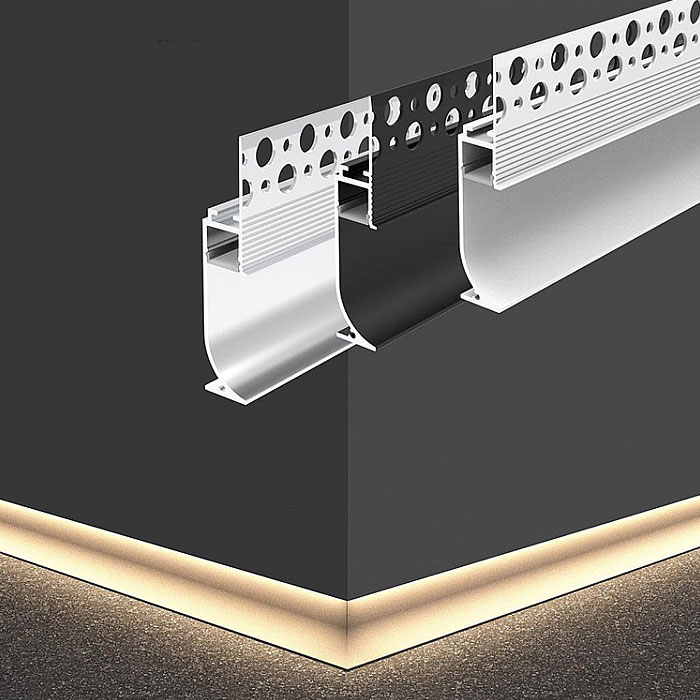

The plaster-in baseboard LED channels can be seamlessly integrated along the bottom of walls for a clean and professional finish without visible edges. They feature a downward lighting design and include a reflective cove in the profile, designed to allow light to shine indirectly onto the floor, providing soft, uniform ambient lighting. Ideal for residential, commercial, and hospitality applications, including corridors, living rooms, hotels, and more. The plasterboard LED profiles are made of durable 6063-T5 extruded aluminum material, featuring a black powder-coating finish that enhances oxidation resistance and prolongs the lifespan. The standard length is 2 meters, and it can be easily cut to any size to meet your needs. Only one type of diffuser is available: PC diffused covers, anti-yellowing, with a clip-in design for easy installation, which helps diffuse the lighting evenly. The inner width is 10.3 mm, allowing a maximum width of 10 mm for LED tapes. We recommend adding our high-density COB strips for uniform illumination without spots. The aluminum LED lighting serves as a heat sink, facilitating better heat dissipation and extending the lifespan of the LED. There are 90° and 180° couplers for corner installation and straight connection. You can purchase connectors for both inside and outside corner installations.

Specifications:
Material: 6063-T5 extruded aluminum
Surface treatment: Powder-coating
Finish: Black, Silver, White
Size( H x W ): 70 mm x 13 mm ( 2.76" x 0.51" )
Standard lengths: 1m ( 39" ), 2 m ( 78" )
Custom length available: YES
Inner width: 10.3 mm ( 0.41" )
Max width of strip lights: 10 mm ( 0.39" )
Max power: 15W/m
Diffuser: PC diffused cover
Beam angle: 60°
IP rate: IP20 non-waterproof ( For indoors only )
Tolerance: ±1%

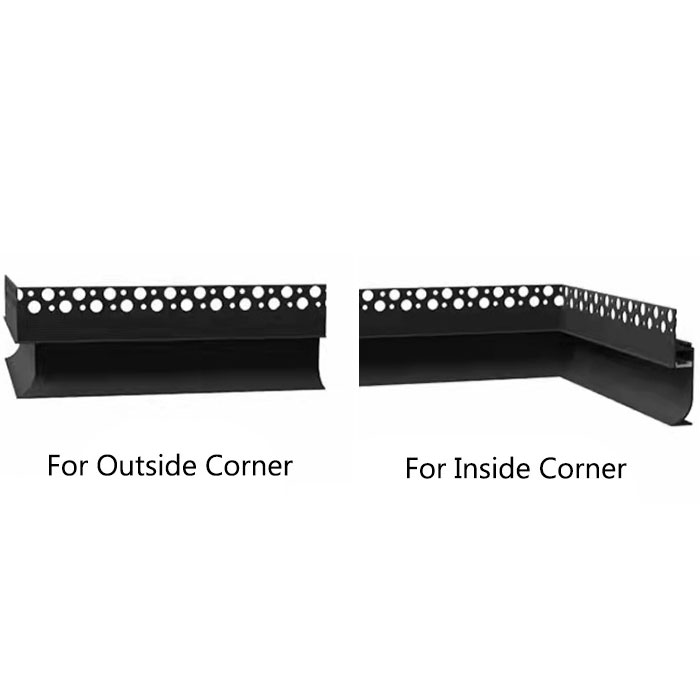

90° and 180° couplers sold separately
End caps with/without wire holes included

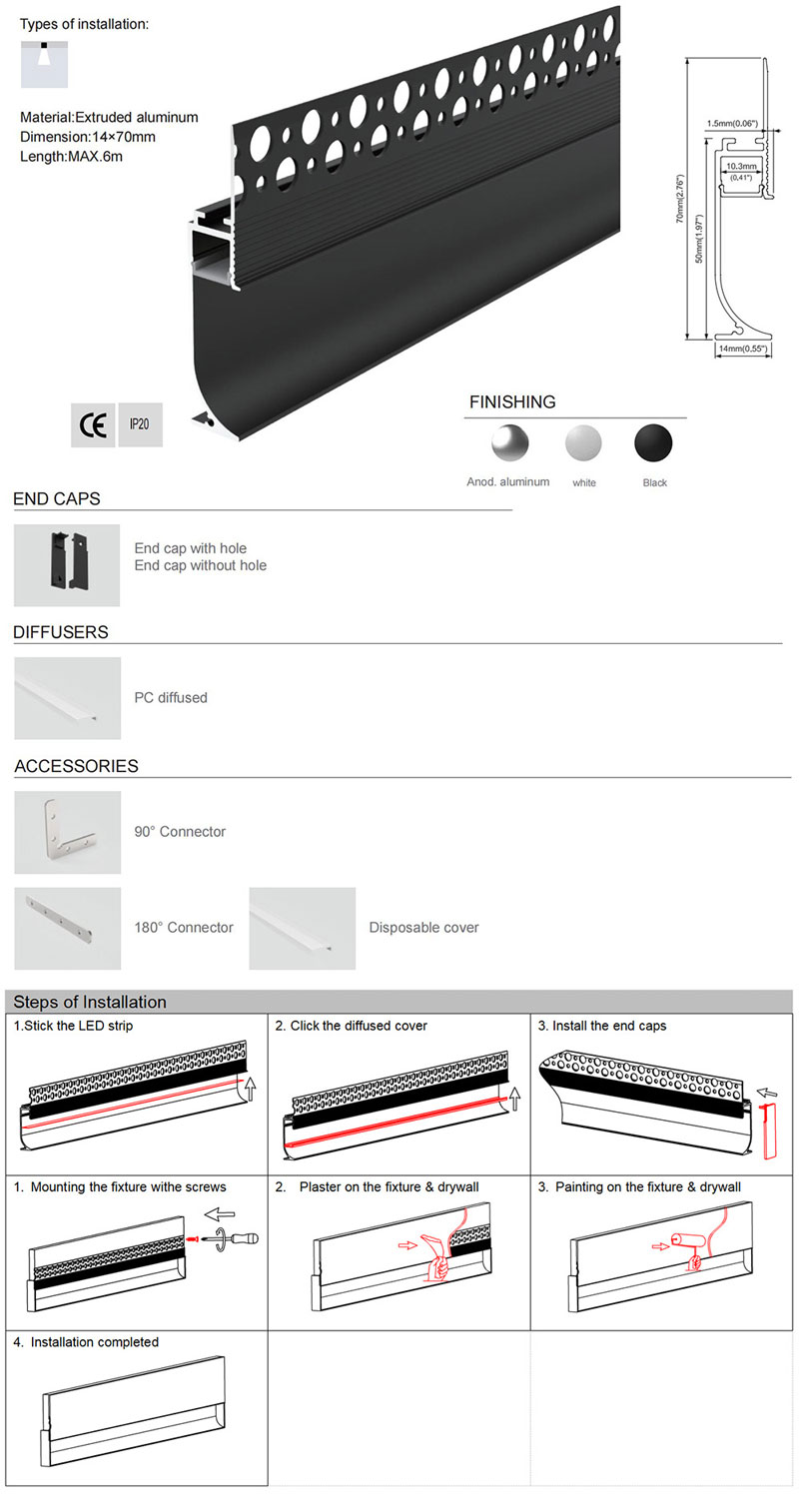

Installation: Plaster-in
Certificates: CE, ROHS
Warranty: 5 years

Applications:

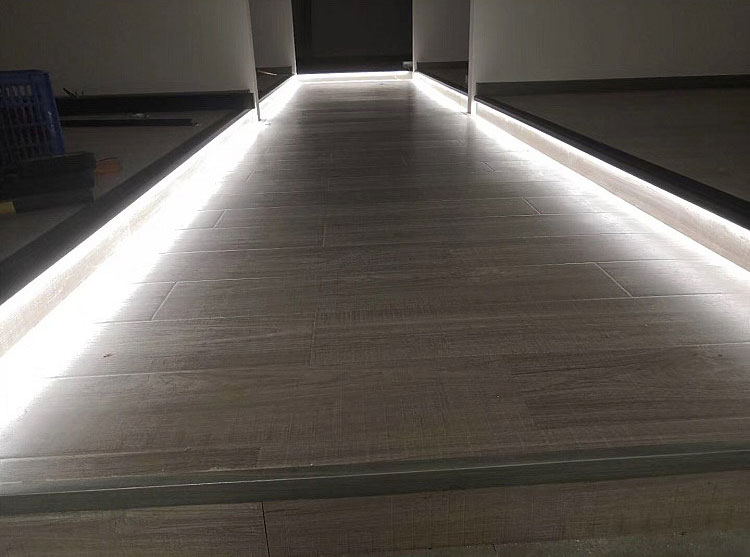

Wall skirting & baseboard lighting: Installed at the bottom of walls, adding both functional and decorative illumination.
Residential interiors: Blends seamlessly with drywall after plastering.
Commercial spaces: For modern wall-to-floor transition lighting.
Theatrical & hospitality lighting: Create subtle guiding light in cinemas, restaurants, and lounges without harsh fixtures.
Safety & wayfinding: Provides low-level illumination for walkways, corridors, or emergency paths at floor level.
