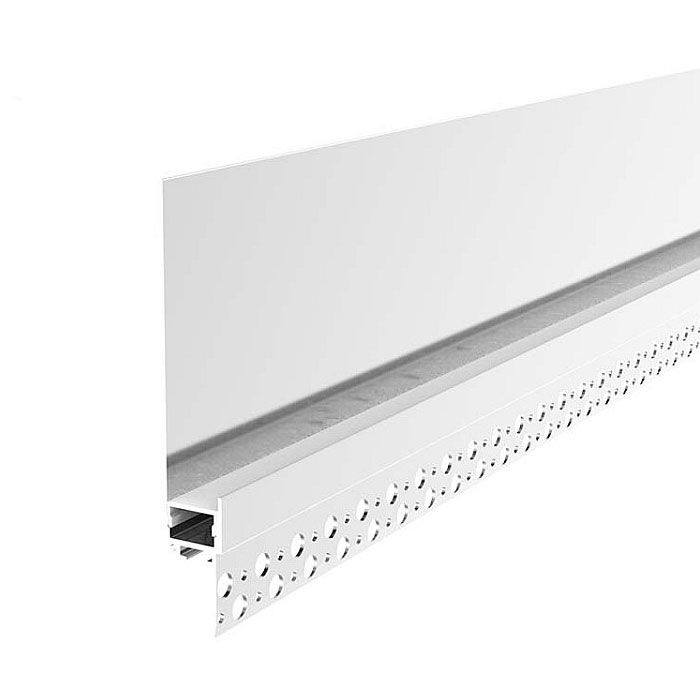

The mud-in LED channels are designed to be flush mounted with 5/8" gypsum boards without visible edges for a minimalist and clean finish. They can integrate flawlessly into ceilings or walls, creating invisible indirect lighting for cove, wall-washing, corner, or base illumination. Perfect for architects and contractors seeking a clean, modern aesthetic. The mud-in LED profiles are made of 6063-T5 constructed aluminum alloy with a white-coated finish for anti-oxidation and extended lifespan. The standard lengths are 1m and 2m, and can be easily cut to any size. The inner width is 13.9 mm, allowing the accommodation of LED strips up to 12 mm wide. We recommend adding our 10mm COB LED strips to achieve even illumination without visible spots. The trimless LED profiles can act as heat sinks, improving heat dissipation and prolonging the longevity of the LEDs. Only one type of diffuser is available: a PC diffused cover, made of brand material and anti-yellowing, which helps diffuse the lighting evenly. Three couplers are available: 90°, 90° vertical, and 180°. You can use them for both straight and angled connections. End caps with and without wire holes are included.

Specifications:
Material: 6063-T5 aluminium alloy
Surface treatment: Powder-coated finish
Colors: White
Size ( H x W ): 119 mm x 18.5 mm ( 4.69" x 0.73" )
Inner width: 13.9 mm ( 0.55" )
Max width of LED strips: 12 mm ( 0.47" )
Max power: <15W/m
Standard lengths: 1 m ( 39" ), 2 m ( 78" )
Custom length available: YES
Diffuser: PC diffused cover
End caps with/without wire holes are included

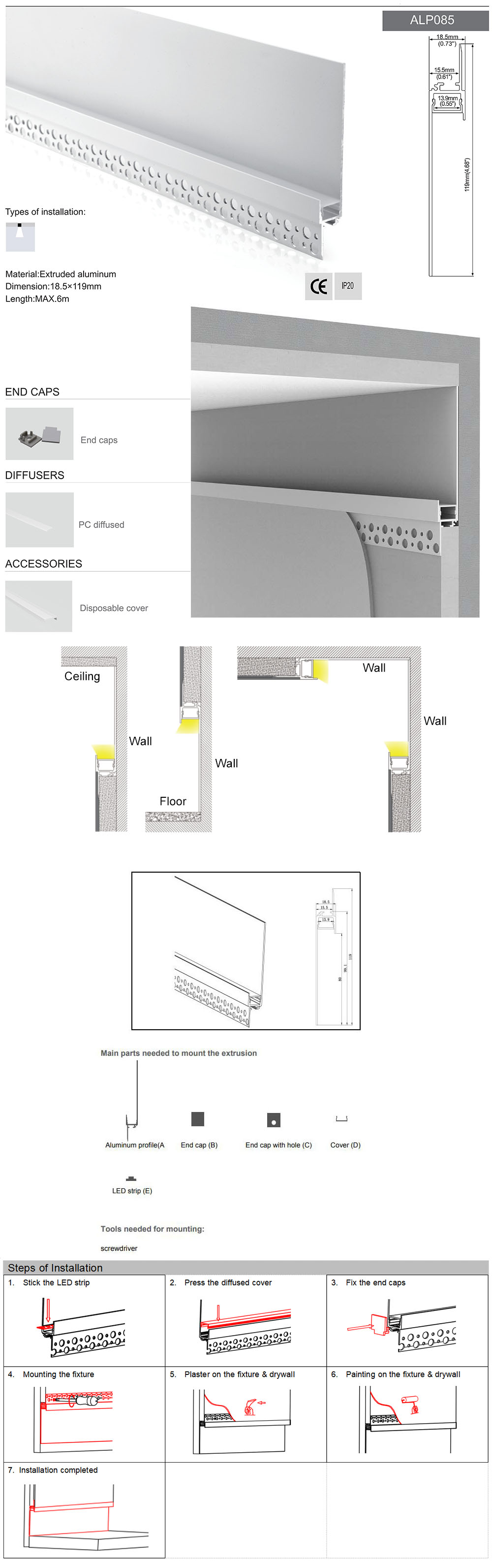

Installation: Trimless mud-in
180°, 90° and 90° vertical connectors optional
COB LED stripes, controllers, and power drivers are sold separately
Certifications: CE, ROHS
Warranty: 5 years

Includes:
1 * Plasterboard LED channel with diffuser
End caps(With/without wire holes)

Applications:
Cove Lighting: Ceilings, tray ceilings
Wall Grazing/Washing: Accent walls, artwork
Baseboard/Kickboard Lighting: Hallways, staircases
Commercial Spaces: Hotels, retail, offices

Indirect floor illumination
