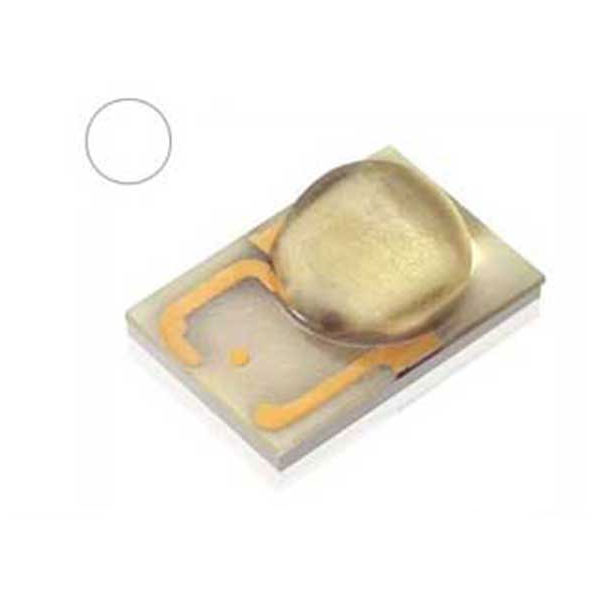

The white Luxeon Rebel power LED delivers optimized combinations of light quality and light output needed for reliable lighting applications. The emitter LED leads in light output, color stability, flux density and clear saturation, making it ideal for signaling, signage, entertainment and architectural lighting applications. The available CCTs available for the Luxeon Rebel emitter are: warm-white through cool-white, specifically: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K. The small footprint of the Rebel emitter comes ready to reflow to your custom printed circuit board (PCB) or application's circuit. If you prefer the LED mounted to a circuit board, we do offer the LED on a hexagonal (LED Star) metal core circuit board.

Product Details
PORTFOLIO: Luxeon Rebel Illumination Portfolio LEDs
BINNING: ANSI Binned with Minimum CRI
CCT OPTIONS: 2700K, 3000K, 4000K, 5000K, 5700K & 6500K
CRI: Specified CRI Combinations
ANSI COMPLIANT: Quarter and Micro Binning
ENERGY STAR: Energy Star Lumen Maintenance
Rebel Emitter Size: 3.17mm X 4.61mm
Max. Junction Temp.: 150°C
