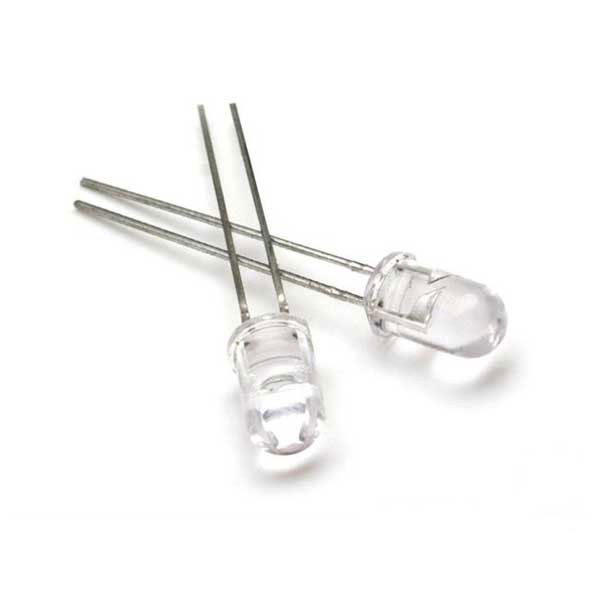

The 400nm Ultra-Violet 5mm LED (T-1 ¾ through-hole) is extremely bright at 12mW; its typical forward voltage is 3.7Vdc and drive current is 20mA, with a maximum forward current of 30mA. The lens is clear, 5mm in diameter and projects light at a half angle of 15°. The bi-pin legs are the positive and negative leads of the LED; the longer of the two leads is the positive side (Anode). There is also a flat side on the base of the LED, this represent the negative side (Cathode).

All our 5mm LEDs are built by top manufacturers, in a variety of colors and illumination patterns. If you need additional product information please call or email us your question.

Product Details
Wavelength: 400nm
Max Reverse Voltage: 4V
Luminous Intensity: 12mW typ. @ 20mA
Power Dissipation: 120mW
Max Forward Current: 30mA
Operating Temp: -25 to +85 C
Pulse Current: 100mA for <= 10ms, duty <= 1/10
Soldering Temp: 265 C for 10 secs
Forward Voltage: 3.7V typ. 4.0V max @ 20mA
Max Reverse Current: 10uA @ 5V
