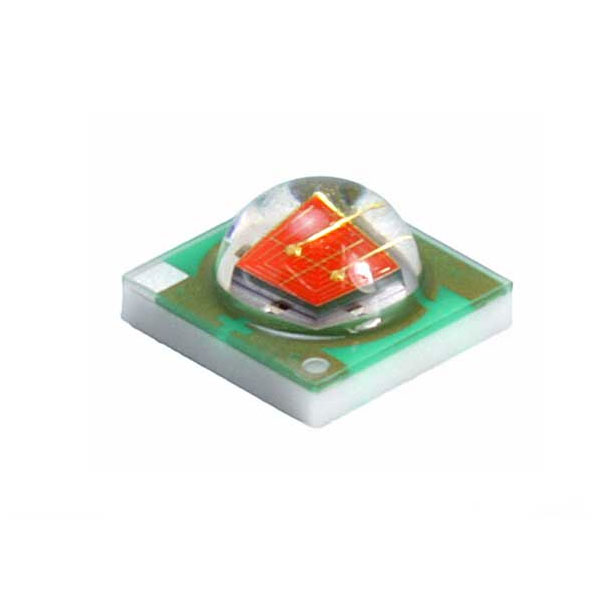

Cree XLamp® XP-E Emitters build and improve on the reliable technology from the XR-E line. Cree reduced the space between the LED die by 75%, packaged it inside an 80 percent smaller footprint and the benefit is 69% more lumen output compared to the XR-E line.

PRODUCTION LIMITED: The XP-E has limited availability. It has been replaced by and large with the newer XP-E2, however we still have a few options available and continue to list these items for your reference. Links to the XP-E2 emitters are included within the specifications below.

Product Details
XP-E Emitter: 80% Smaller Foot-print then XR-E
Binning: Standard & ANSI
Max Drive Current: Up to 1000mA
Wide Viewing Angle: 115° to 130°
Size: 3.45mm X 3.45mm X 2.00mm
Colors: Color & White
Thermal Resistance: Low as 9°C/W
Max. Junction Temp.: 150°C
