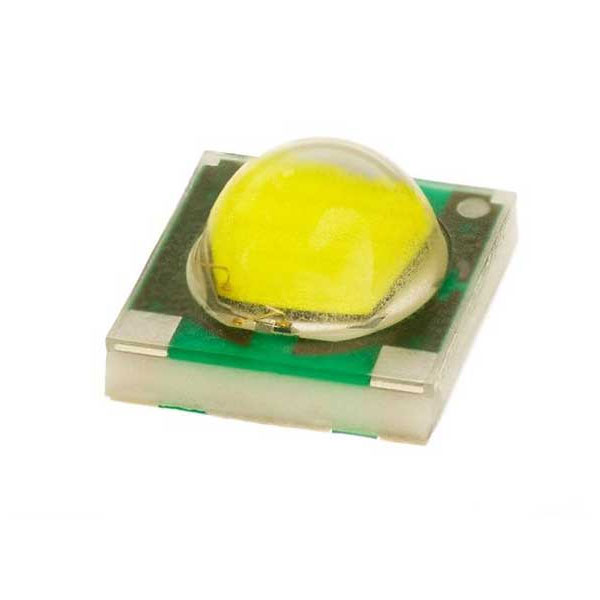

The XP-G emitter from Cree packs more light emitting surface LES into the same size package then the previous XP-E, making it an ideal choice for high-brightness directional lighting applications. Cree and the XP-G XLamp line of LEDs continue to lead the industry producing 492 lumens at 93 lumens per watt when driven at 1500mA.

PRODUCTION LIMITED: The XP-G has limited availability. It has been replaced with the silicon carbide substrate XP-G2, however we still like to list these items for your reference. Links to the XP-G2 emitters are included within the specifications below.

Product Details
XLamp Technology: Larger Die than Proven XP-E
Colors: Cool-White, Neutral-White & Warm-White
Max Drive Current: Up to 1500mA
Wide Viewing Angle: 125°
Maximum Power: 4.9W
Binned: White Binned @ 25°C
Thermal Resistance: Low as 4°C/W
Max. Junction Temp.: 150°C
Light Output: 493 lm @ 4.9 W
XP-E2 Emiter Size: 3.45mm X 3.45mm
