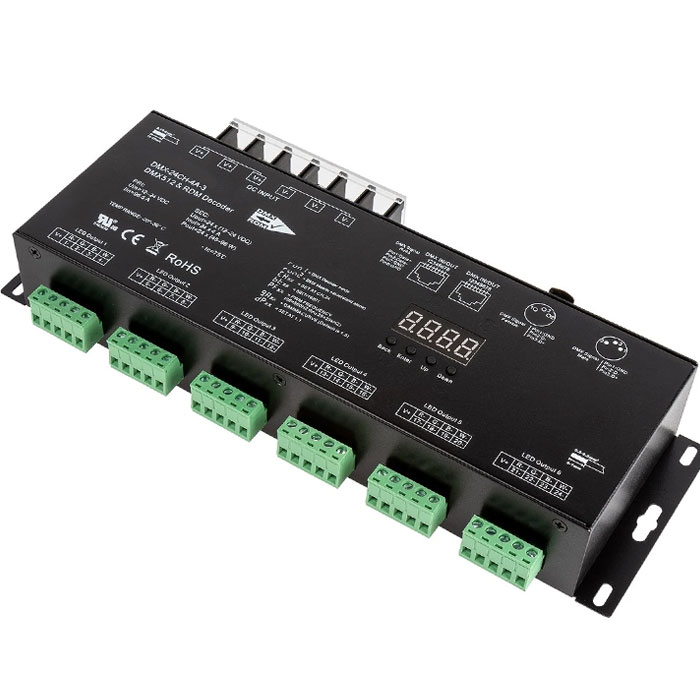

The 24-channel LED DMX RDM digital decoder and master is a versatile LED lighting controller. In master mode, control the brightness, speed, and selection of pre-programmed color-chasing effects for custom lighting. It features RDM bi-direction communication enabling it to detect and display decoder information from your lights and set DMX addresses. This low-voltage DMX decoder controls up to 24 channels. It converts DMX512 signal to control single-color, RGB, RGBW, RGB+W, RGB+CCT, and tunable white LED lights with an easy-to-use digital interface. It has a maximum of 4A per channel and a total of 2,304 watts at 24 VDC. The digital display shows the selectable DMX address, PWM frequency, 8-bit / 16-bit PWM output resolution, and dimming curve settings. The PWM frequency is adjustable from 500 Hz to 35 kHz (10 kHz default) for flicker-free lighting in video and photography applications. Ideal for theater and live sound DJ performances. It includes one male and one female XLR 3-pin terminal and two RJ45 in/out terminals.

Product Details:
Screw terminal, RJ45, and XLR3 connections for input and output
PWM frequency: 500 Hz to 35 kHz (10 kHz default)
Dimming curve gamma value: 0.1 - 9.9 (1.5 default)
12 VDC - 48 watts per channel
24 VDC - 96 watts per channel
Up to 2,304 watts total
Short circuit protection

Specifications
Ambient Operating Temperature: -20 to 50 °C (-4 to 122 °F)
Amps: 96 Amps
Amps Per Channel: 4 Amps/CH
Control Type: DMX512, RDM Decoder
DMX In/Out: RJ45, Screw Terminals, XLR3
Environmental Rating: Non-weatherproof
Input Connection Type: Screw Terminal, XLR3 (Male), RJ45
IP Rating: IP20
Max Wattage: 1152W @ 12 VDC, 2304W @ 24 VDC
Number of Channels: 24 Channels
Output Connection Type: RJ45, XLR3 (Female)
Product Materials: Steel
Voltage:12-24 VDC
Warranty: 2 Year
