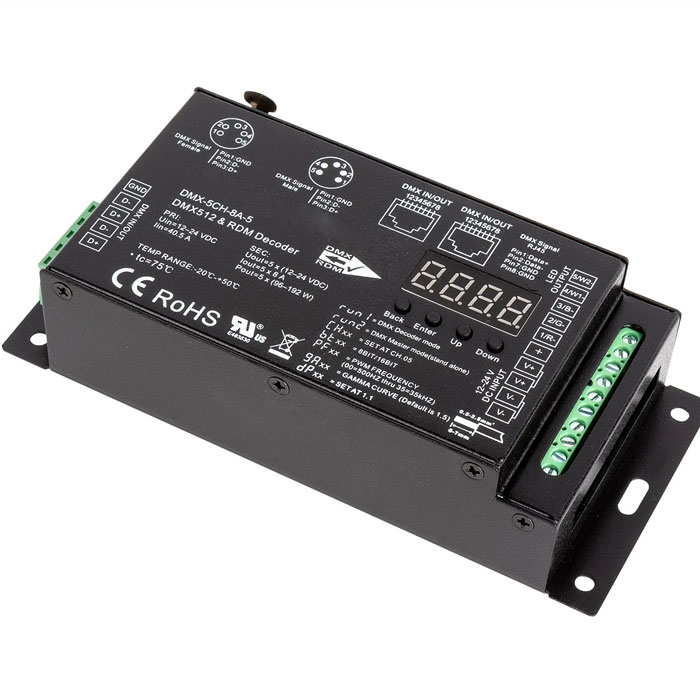

The 5-channel LED DMX RDM digital decoder and master is a versatile LED lighting controller. In master mode, control the brightness, speed, and selection from 31 programs for custom lighting. It features RDM bi-direction communication enabling it to detect and display decoder information from your lights and set DMX addresses. This low-voltage DMX decoder controls up to five channels. It converts DMX512 signal to control single-color, RGB, RGBW, RGB+W, RGB+CCT, and tunable white LED lights with an easy-to-use digital interface. It has a maximum of 8A per channel and a total of 960 watts at 24 VDC. The digital display shows the selectable DMX address, PWM frequency, 8-bit / 16-bit output resolution, and dimming curve settings. The PWM frequency is adjustable from 500 Hz to 35 kHz (1 kHz default) for flicker-free lighting in video and photography applications. Ideal for theater and live sound DJ performances. It includes one male and one female XLR 5-pin terminal and two RJ45 in/out terminals.

Product Details:
Screw terminal, RJ45, and XLR5 connections for input and output
PWM frequency: 500 Hz to 35 kHz (1 kHz default)
Dimming curve gamma value: 0.1 - 9.9 (1.5 default)
12 VDC - 96 watts per channel
24 VDC - 192 watts per channel
Up to 960 watts total
Short circuit protection

Specifications
Ambient Operating Temperature: -20 to 50 °C (-4 to 122 °F)
Amps: 40 Amps
Amps Per Channel: 8 Amps/CH
Control Type: DMX512, RDM Decoder
DMX In/Out: RJ45, Screw Terminals, XLR5
Environmental Rating: Non-weatherproof
Input Connection Type: Screw Terminal, RJ45, XLR5 (Male)
IP Rating: IP20
Max Wattage: 480W @ 12 VDC, 960W @ 24 VDC
Number of Channels: 5 Channels
Output Connection Type: RJ45, XLR5 (Female)
Product Materials: Steel
Voltage: 12-24 VDC
Warranty: 2 Year
