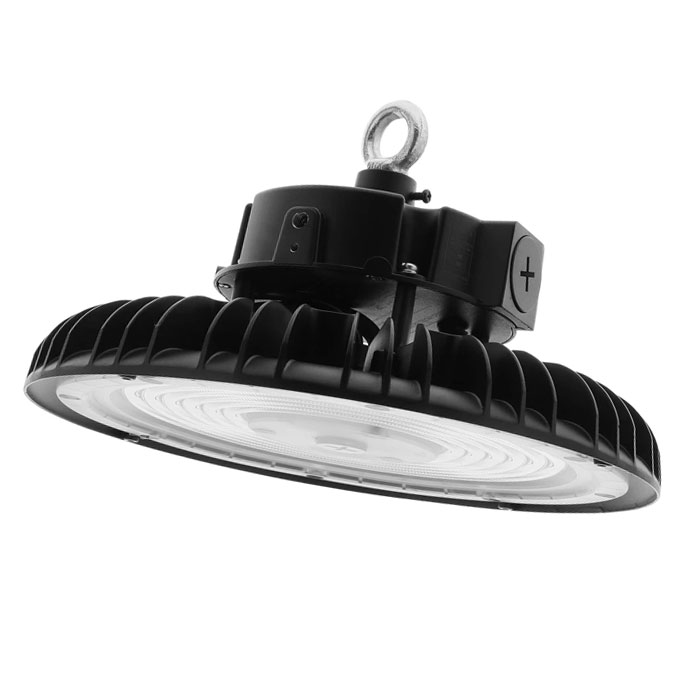

The High Voltage UFO LED High Bay Light has a sensor-ready design with a center port that allows easy integration of an optional daylight harvesting motion sensor for automatic lighting control and efficient operation. Use the switches on the side of the fixture to select wattage (80W, 120W, 150W) and color temperature (3000K, 4000K, 5000K), providing versatile lighting customization. This high-voltage UFO High Bay features a 277-480V range, a 160 lm/W high efficacy, and replaces up to 400W metal-halide fixtures. The 24,000-lumen max output and wide 90° beam angle are ideal for high-mounted locations in large open areas. Each fixture features a corrosion-resistant, black powder-coated die-cast aluminum, housing and a clear polycarbonate lens. The optional polycarbonate reflector reduces glare and shadows while giving the high bay a traditional appearance. The fixture can be easily mounted using the included safety cable and steel eye bolt.

Product Details:
Black powder-coated aluminum housing with polycarbonate lens
Steel eye bolt for mounting
IP65 waterproof, suitable for wet locations
0-10V dimmable
High Voltage 277-480 VAC input
Surge protection: 6kV (L/N-PE, L-N)
DLC 5.1 Premium
UL Certified
5-year warranty

Specifications
Ambient Operating Temperature:-30 to 50 °C (-22 to 122 °F)
Beam Angle:90°
CCT: 3000K, 4000K, 5000K, Selectable CCT
Certifications/Compliance: Certified by UL, DLC Premium, IK08
Current Draw: 320/480/600 mA @ 277 VAC, 185/275/345 mA @ 480 VAC
Dimmable:Yes
Dimmer Type: 0-10V
DLC Product: IDS-X4X1YY
Efficacy:160 lm/W
Environmental Rating: Suitable for Wet Locations, Waterproof
Equivalency:250 Watt Metal Halide, 400 Watt Metal Halide
Finish:Black
Input Connection Type:Pigtail
IP Rating: IP65
LED Color:Warm White, Natural White, Cool White, Selectable CCT
Rated Life (L70):50000 Hours
Lumens:12800 Lumens, 19200 Lumens, 24000 Lumens
Microwave Motion Sensor:Optional
Operating Voltage:277-480 VAC
Power Factor:≥0.9
Product Materials:Aluminum, Polycarbonate Lens
Warranty:5 Year
Wattage:Selectable Wattage, 80 Watts, 120 Watts, 150 Watts
Wire Gauge:18 AWG (L/N/G), 22 AWG (dimming)
