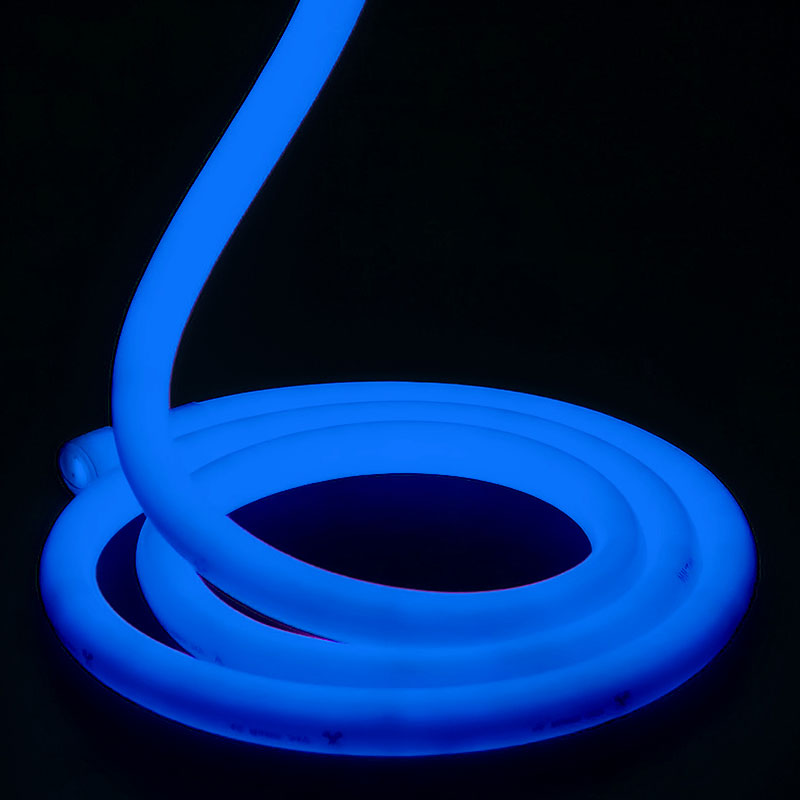

Our Circular Display Neon Flex offers flexible illumination in an 18mm diameter, making it perfect for perfect for single use display applications indoors and outdoors.

Fully diffused PVC ensures illumination for a durable lighting display.

Neon Flex looks better than glass neon - and it opens all the environments where fragile Glass Neon cannot be used. As the name suggests, it is highly flexible. LED Neon Flex can be bent to a minimum radius of 8 cm, and can be cut easily to your desired lengths with the use of 4.17cm cut points. Maximum Length at any time is 15 metres.

For a working Neon Flex installation you will need:
Neon Flex LED
1 x Driver to power your desired length
1 x Neon Flex Connector Pin
1 x Neon Flex End Cap
Splashproof is subject to correct installation. Heat shrink tube and silicone glue is essential to seal both the endcap and power cable in order to make the installation splashproof.

Dimming Compatibility
Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.
Drivers and cabling are not covered by the splashproof rating and therefore must be housed indoors in a dry environment. splashproof rating applies to the Neon Flex only when correctly installed.

Please note that we are not able to offer refunds on custom cut lengths of Neon Flex, only for full 50m reels.

all products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.

Technical Data
Colour:    Blue 465-475nm
Voltage:    24V
Water Resistance:    IP65
Impact Resistance:    IK08
Watts Per Metre:    8.5Watts p/m
Amps Per Metre:    0.35 Amps p/m
Lumens Per Metre:    80 lm/m
CRI:    80
Length: 16.4 ft (5 m)
Width:    18mm
Bend Direction:    Vertical
Max. Linear Run:    15 Metres
Cut Points:    83.33mm
Material:    PVC
Min. Operating Temperature:    -20°C
Max. Operating Temperature:    45°C
Max. Run Length (m):    15
Body Material:    PVC
Ingress Protection (IP):    65
Input Current Type (A):    DC
Input Voltage Min. - Max (V):    24-24V
Cut Points (mm):    83.33
LEDs Per Metre (LEDs/m):    144
Product Height (mm):    18
Width (mm):    18
Battery Included:    No
Light Colour:    Blue
Lumens Per Metre (Lm/m):    80
Operating Temperature Min. - Max. (°C):    -20℃ to 45℃
Family Name:    Quick Connect Series
Warranty (Years):    1
Body Colour:    White
Lumens Per Watt (Lm/W):    10
Beam Angle (°):    360
SDCM:    3
Chip Type:    SMD2538
Copper Foil Weight (oz):    3
PCB Type：    FPCB
