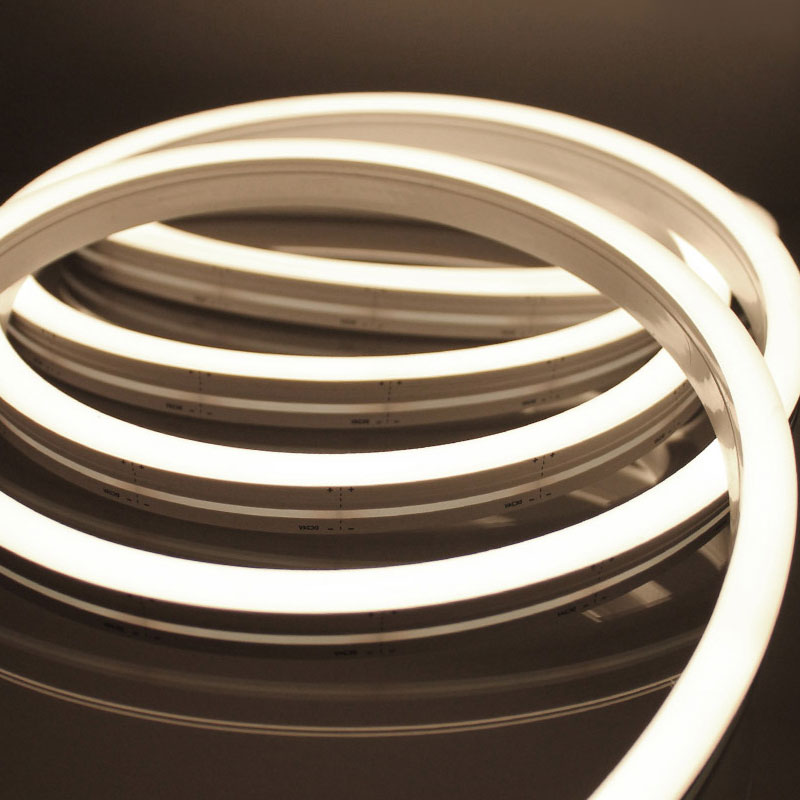

Ideal for a variety of installations, our 12x17 Horizontal Bend LED Neon Flex is constructed with high quality silicone material and used for horizontal applications. Ideal for dynamic designs in architectural features, retail displays, signage, and residential projects. Crafted with durable materials and precision-engineered, it delivers a sleek, high-end finish with consistent non-spotting illumination.

From architectural elements to decorative lighting, this LED neon flex features professional grade components and high quality materials. Designed to meet the demands of lighting designers, electricians, and contractors, it elevates any space with a seamless, professional-grade lighting solution.

Samples available for this product. Get in touch with our sales team via email, live chat or phone to request a sample.

Key Features
With horizontal bend flexibility, this LED neon has a minimum bend diameter of 120mm and produces a >90 CRI light output. It offers uniform, shadow-free illumination across all colour temperatures including 2400K, 2700K, 3000K, 4000K, 5000K and 6000K as is available in 10 metre kits. The durable, anti-yellowing material is indoor and outdoor-ready with an IP67 rating. A 120° beam angle delivers smooth light, and pre-soldered tails enable quick setup. Comes with a 3 year warranty as standard.

Specifications
Voltage: 24V DC
Typ. Power: 9.9W/m
LEDs per metre: 140 LEDs
Cut Points: 50mm
CRI: >90
Beam Angle: 120°
Dimensions: W12mm x H17mm
Lumens per metre: Up to 460lm
Warranty: 3 Years
IP Rating: IP67 (suitable for indoor and outdoor use)

Installation
The IP67-rated LED Neon Flex is designed for both indoor and outdoor applications, featuring a durable rear-entry cable for easy installation. For optimal performance and secure placement, we recommend using mounting tracks.

Product Specification
Warranty (Years):    5
Length: 16.4 ft (5 m)
Dimmable:    Yes
Max. Run Length (m):    10
Application Environment:    Hospitability, commercial, signage
Body Material:    Silicone
Ingress Protection (IP):    67
Interior or Exterior Use:    Exterior
Input Voltage Min. - Max (V):    24-24V
Body Colour:    White
Cut Points (mm):    50
LEDs Per Metre (LEDs/m):    140
Product Height (mm):    17
Color : Warm White 3000K
Width (mm):    12
Constant Voltage / Constant Current:    CV
End Caps Included:    No
Beam Angle (°):    120
CRI:    90
Electrical Safety Class:    III
Operating Temperature Min. - Max. (°C):    -20℃ to 55℃
Certification:    EMC - 2014/30/EU
Bend Direction:    Horizontal
Cable Sheath Material:    Silicone
Family Name:    Pro Series
Cable Both Ends:    Yes
Cable Length (mm):    1000
SDCM:    3
