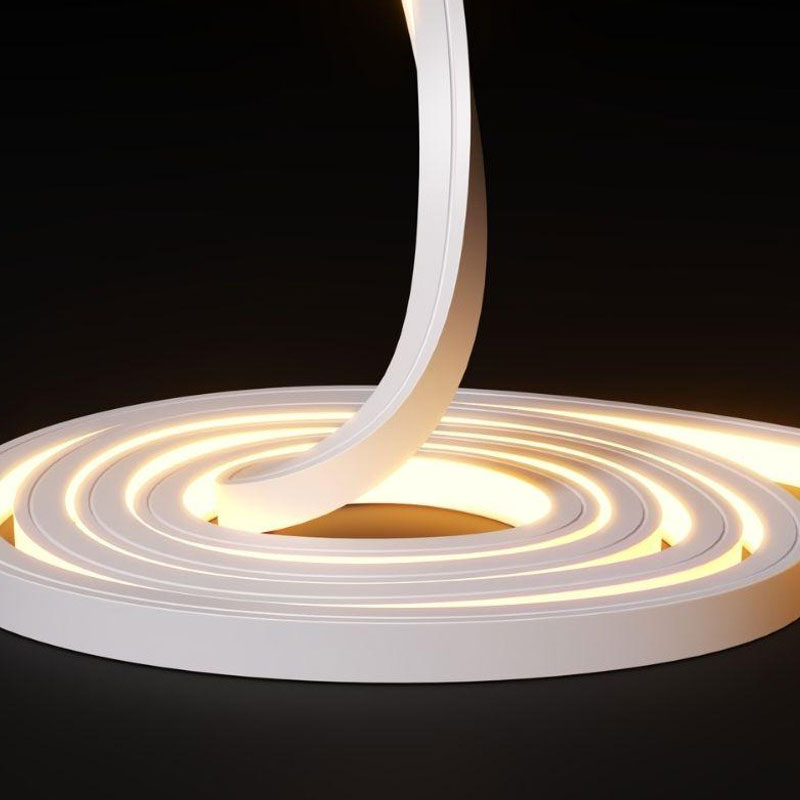

Introducing Our Long Run 20x20 Dual Bend LED Neon Flex
Transform your lighting projects with our groundbreaking innovation, the 20x20mm Dual Bend LED Neon Flex. Capable of 20 metre lengths when powered from one end.This versatile LED neon flex is engineered for both horizontal and vertical bending applications, making it ideal for intricate and dynamic designs in architectural features, retail displays, signage, and residential projects. Crafted with durable materials and precision-engineered, it delivers a sleek, high-end finish with consistent illumination around corners and curves.

From architectural elements to decorative lighting, this LED neon flex redefines versatility with its professional-grade features and performance. Designed to meet the demands of lighting designers, electricians, and contractors, it elevates any space with a seamless, professional-grade lighting solution. Sold by the metre.

Samples available for this product. Get in touch with our sales team via email, live chat or phone to request a sample.

Important Installation Note:
The NEONDUAL2020-LONG has a ±0.5mm tolerance. Customers should measure precisely before routing out the groove for fitting the neon flex to ensure a perfect installation.

Key Features
With dual bend flexibility, this LED neon flex bends horizontally and vertically, ideal for complex layouts. It offers uniform, shadow-free illumination across all colour temperatures including 2300K, 2700K, 3000K, 4000K and 6000K. The durable, anti-yellowing material is indoor and outdoor-ready with an IP67 rating. A 120° beam angle delivers smooth light, and sold by the metre and cable length options enable a custom setup. Backed by a 5-year warranty.

Specifications
Voltage: 24V
Max. Power: 10.5W/m
LED Density: 120
Min. Bend Diameter: 200mm (vertical), 280mm (horizontal)
CRI: 80
Beam Angle: 120°
Cut Points: 50mm
Dimensions: W20mm x H20mm
SDCM: <3
Warranty: 5 Years
IP Rating: IP67 (suitable for indoor and outdoor use)

Installation
The IP67-rated LED Neon Flex is designed for both indoor and outdoor applications, featuring a durable rear-entry cable for easy installation. For optimal performance and secure placement, we recommend using mounting tracks.

Product Specification
Warranty (Years):    5
Dimmable:    Yes
Length: 16.4 ft (5 m)
Dimming Type:    PWM
Max. Run Length (m):    20
Anti-Yellowing:    Yes
Application Environment:    Hospitality, commercial, residential, signage
Body Material:    Silicone
Ingress Protection (IP):    67
Interior or Exterior Use:    Interior or Exterior
Saltwater Resistant:    Yes
Solvent Resistant:    Yes
Storage Humidity Max. (°C):    60
UV Resistant:    Yes
Working Humidity Max. (°C):    80
Input Voltage Min. - Max (V):    24-24V
Body Colour:    White
Cable Weight (AWG):    20
Chip Type:    SMD 2835
Copper Foil Weight (oz):    3
Cut Points (mm):    50
Entry Cable Direction:    Rear
LED Pitch (mm):    8.33
LEDs Per Metre (LEDs/m):    120
Min. Bend Radius (mm):    200
Product Height (mm):    20
Width (mm):    20
Constant Voltage / Constant Current:    CV
Beam Angle (°):    120
CRI:    90
R9 CRI Value:    63
SDCM:    3
Operating Temperature Min. - Max. (°C)：    -20℃ to 45℃
Family Name：    Pro Series
Bend Direction：    Dual
