All our neon flex comes with a 1 year guarantee on indoor installations and a 6 month guarantee on out door installations.

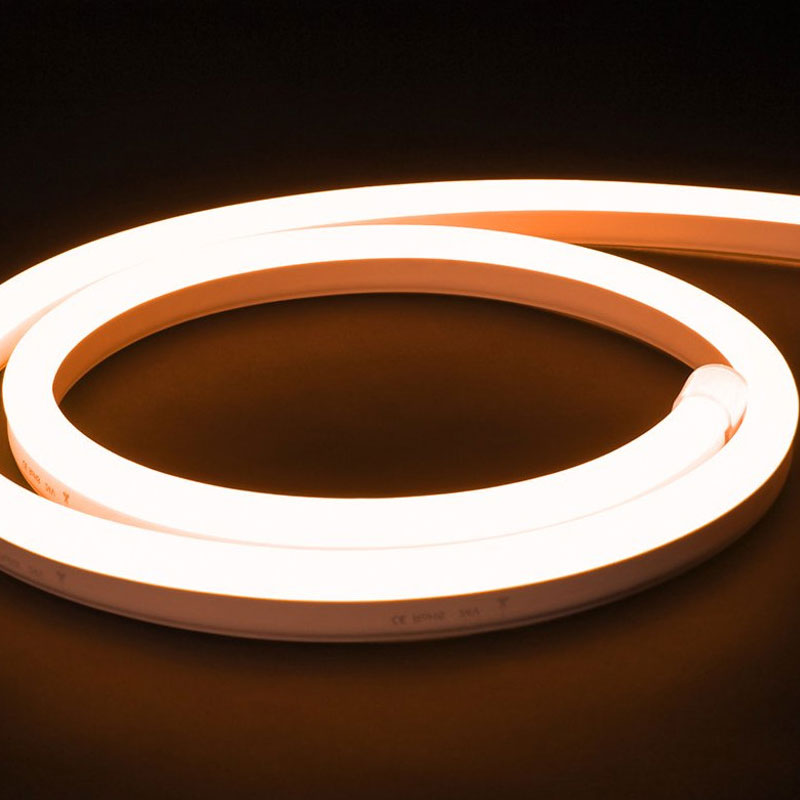

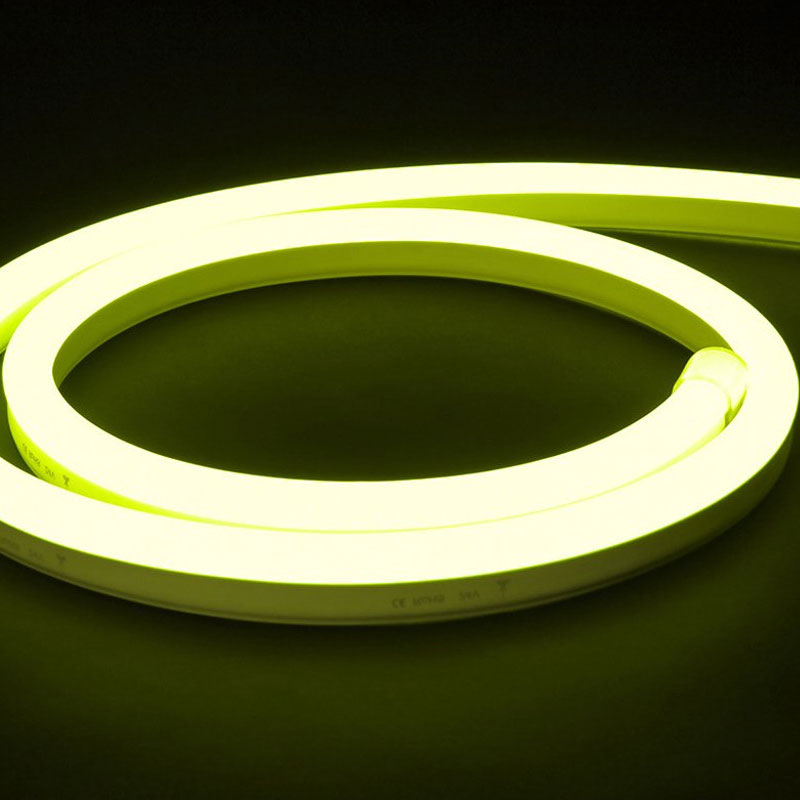

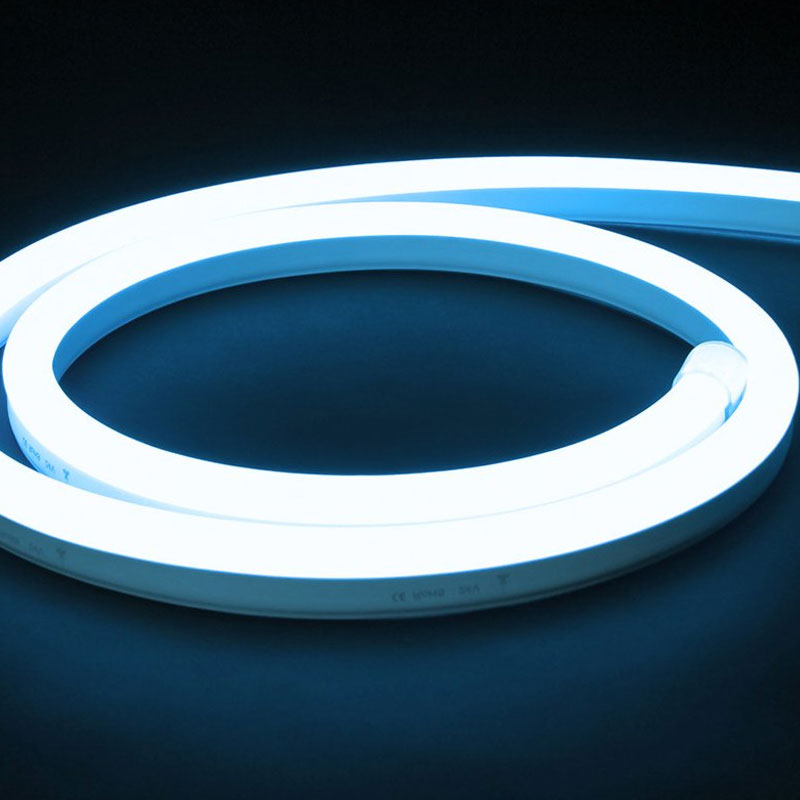

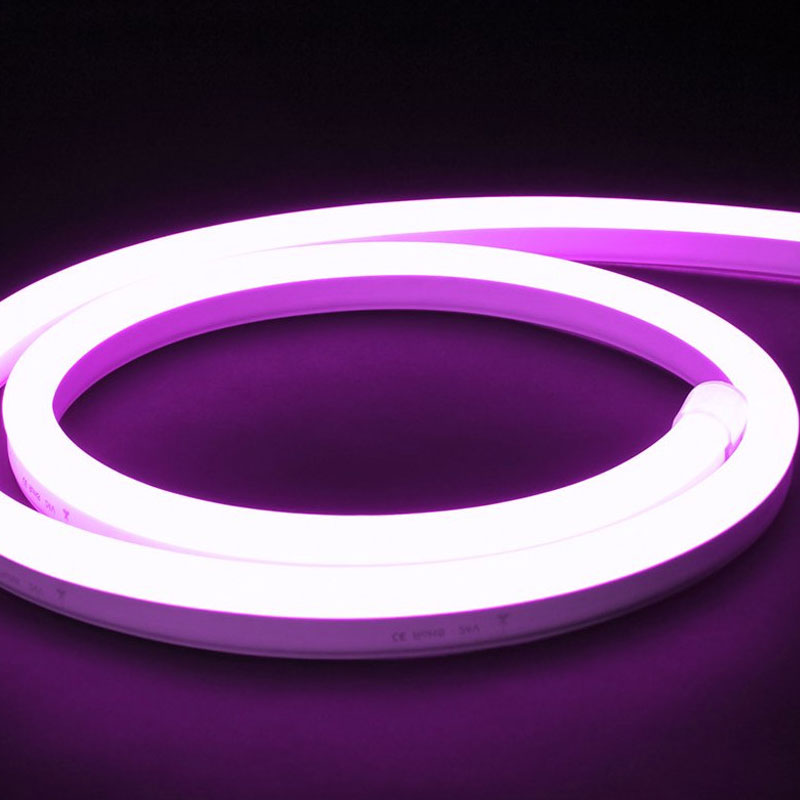

LED Neon flex is a flexible light tube designed to produce an ambient linear lighting effect and is perfect for single use display lighting. PVC totally diffused, 'no shadow' no spots and flexible.

It's durable body allows for installations both in and outdoors where light water exposure may occur.  Pair with one of our RGB controllers for colour changing effects.

Neon Flex looks better than glass neon - and it opens all the environments where fragile Glass Neon cannot be used. As the name suggests, it is highly flexible. LED Neon Flex can be bent to a minimum radius of 4 cm, and can be cut easily to your desired lengths. Maximum Length at any time is 12 metres.

This neon flex comes with a 1 year guarantee for indoor installations and a 6 month guarantee for outdoor installations.

Please Note: We are not able to offer refunds on cut lengths of Neon Flex, only for full 50m reels. If you order more than a 1 Metre length of Neon Flex you will receive a continuous run as it is taken from a 50m roll.

Specifications:
Voltage - 24v
Dimensions - 15mm x 26mm
LED Type - SMD5050
Number Of LEDs - 72 Per Metre
Unit/Cut Length - 8.33cm
Max Load - 12m
LED Distance - 8.33mm
Power - 12W Per Metre
Lumens - 370 Per Metre
Jacket Type: Dome
Splashproof, subject to correct installation.
Bent Angle - 4cm

For a working Neon Flex installation you will need:
• Neon Flex LED
• 1 x Neon Flex Power Cable
• 1 x Neon Flex Connector Pin
• 1 x Neon Flex End Cap
• 1 x 24 volt power supply

Heat shrink tube is also highly recommended to seal both the endcap and power cable in order to maintain the waterproof rating.

Dimming and Control Compatibility
Compatible with dimmers and controllers using standard control protocols including DMX, Dali, 0-10V, PWM.
Compatible with smarthome dimmers and controllers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.
A 24v LED Transformer is required to power our Neon Flex. A full 12 metre run will need a power supply higher than 160w.

Product Specification
Colour：    RGB Colour Changing
Voltage：    24V
Length: 16.4 ft (5 m)
Water Resistance：    IP65
Impact Resistance：    IK08
Watts Per Metre：    12Watts p/m
Amps Per Metre：    0.5 Amps p/m
Lumens Per Metre：    N/A
Length：    Sold by the metre
Width：    15mm
Bend Direction：    Horizontal
Max. Linear Run：    12 Metres
Cut Points：    83.3mm
Material：    PVC
Min. Operating Temperature：    -20°C
Max. Operating Temperature：    45°C
Guarantee：    1 Year Indoor, 6 Months Outdoor
Max. Run Length (m)：    12
Body Material：    PVC
Ingress Protection (IP)：    65
Input Current Type (A)：    DC
Input Voltage Min. - Max (V)：    24-24V
Cut Points (mm)：    83.33
LEDs Per Metre (LEDs/m)：    72
Product Height (mm)：    26
Depth (mm):    1000
Product Weight (g):    450
Width (mm):    15
Battery Included:    No
Lumens Per Metre (Lm/m):    138
Operating Temperature Min. - Max. (°C):    -20℃ to 45℃
Family Name:    Quick Connect Series
Warranty (Years):    0.5
Body Colour:    White
CRI:    80
Lumens Per Watt (Lm/W):    12
Beam Angle (°):    270
SDCM:    3
Chip Type:    SMD5050
Copper Foil Weight (oz):    3
PCB Type:     FPCB
