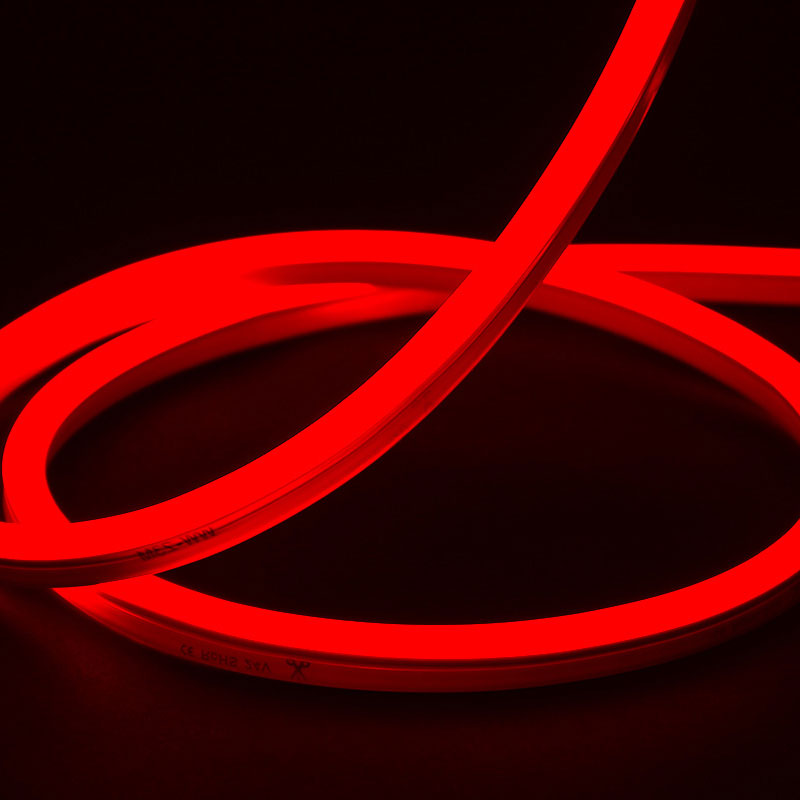

LED Neon Flex Mini is a new compact version of our Neon Flex tube lighting, at only 15 x 10mm its small size and light weight it is ideal for slimline perfect for single use display applications indoors and outdoors.

As the name suggests, it is highly flexible and can be bent to a minimum diameter of 120mm, and can be cut easily to your desired lengths. Maximum Length at any time is 15 metres.

Neon Flex can be dimmed via mains dimming, DALI, DMX or RF controllers.

Please Note: We are not able to offer refunds on cut lengths of Neon Flex Mini, only for full 50m reels. If you order more than a 1 Metre length of Neon Flex you will receive a continuous run as it is taken from a 50m roll.

For a working Neon Flex Mini installation you will need:
• Neon Flex Mini LED
• 1 x Neon Flex Mini Power Cable
• 1 x Neon Flex Mini Connector Pin
• 1 x Neon Flex Mini End Cap
• 1 x 24 volt power supply

Heat shrink tube is also highly recommended to seal both the endcap and power cable in order to maintain the splashproof rating.

All our neon flex comes with a 1 year guarantee as standard on indoor installations and 6 month guarantee on outdoor installations.

Dimming Compatibility
Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.
24V Driver Requirements:
1 metre > 7w
2 metre > 14w
3 metre > 21w
4 metre > 28w
5 metre > 35w
6 metre > 42w
7 metre > 49w
8 metre > 56w
9 metre > 63w
10 metre > 70w
11 metre > 77w
12 metre > 84w
13 metre > 91w
14 metre > 98w
15 metre > 105w

A 24v LED Transformer is required to power our Neon Flex.

all products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.

Specification
Colour:    Red 620-630nm
Voltage:    24V
Water Resistance:    IP65
Impact Resistance:    IK08
Watts Per Metre:    6.1Watts p/m
Amps Per Metre:    0.25 Amps p/m
Lumens Per Metre:    142 lm/m
CRI:    80
Length: 16.4 ft (5 m)
Width:    10mm
Bend Direction:    Horizontal
Max. Linear Run:    15 Metres
Cut Points:    125mm
Material:    PVC
Min. Operating Temperature:    -20°C
Max. Operating Temperature:    45°C
Guarantee:    1 Year Indoor, 6 Months Outdoor
Max. Run Length (m):    18
Body Material:    PVC
Ingress Protection (IP):    65
Input Current Type (A):    DC
Input Voltage Min. - Max (V):    24-24V
Cut Points (mm):    125
LEDs Per Metre (LEDs/m):    96
Product Height (mm):    15
Width (mm):    10
Battery Included:    No
Light Colour:    Red
Lumens Per Metre (Lm/m):    142
Operating Temperature Min. - Max. (°C):    -20℃ to 45℃
Family Name:    Quick Connect Series
Warranty (Years):    0.5
Body Colour:    White
Lumens Per Watt (Lm/W):    18
Beam Angle (°):    120
SDCM:    3
Chip Type:    SMD2538
Copper Foil Weight (oz):    3
PCB Type:     FPCB
