Introducing Our 16x17 Vertical Bend LED Neon Flex – 24V | RGBW | Architectural Range

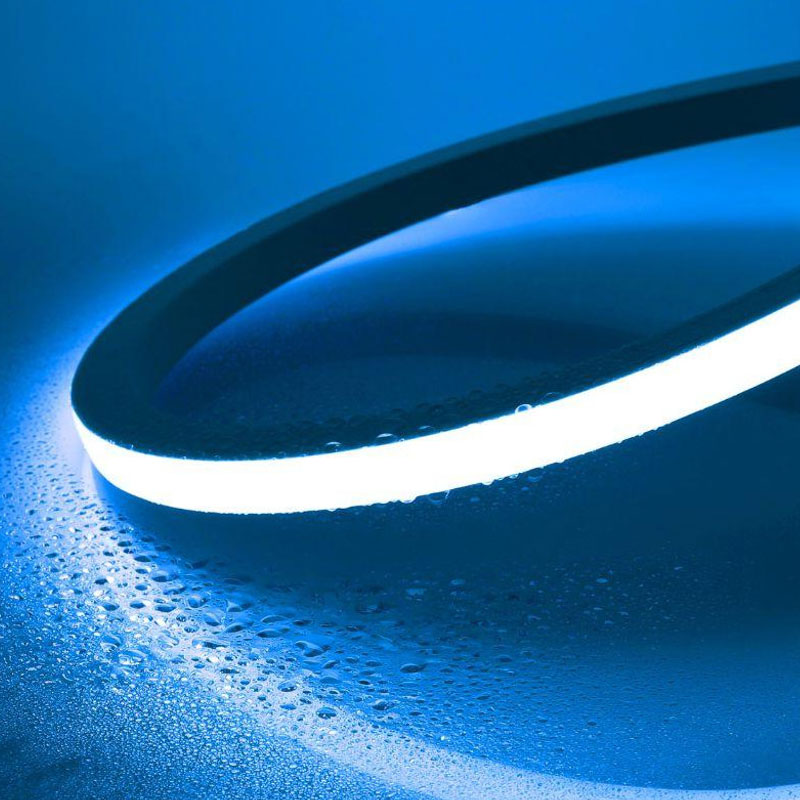

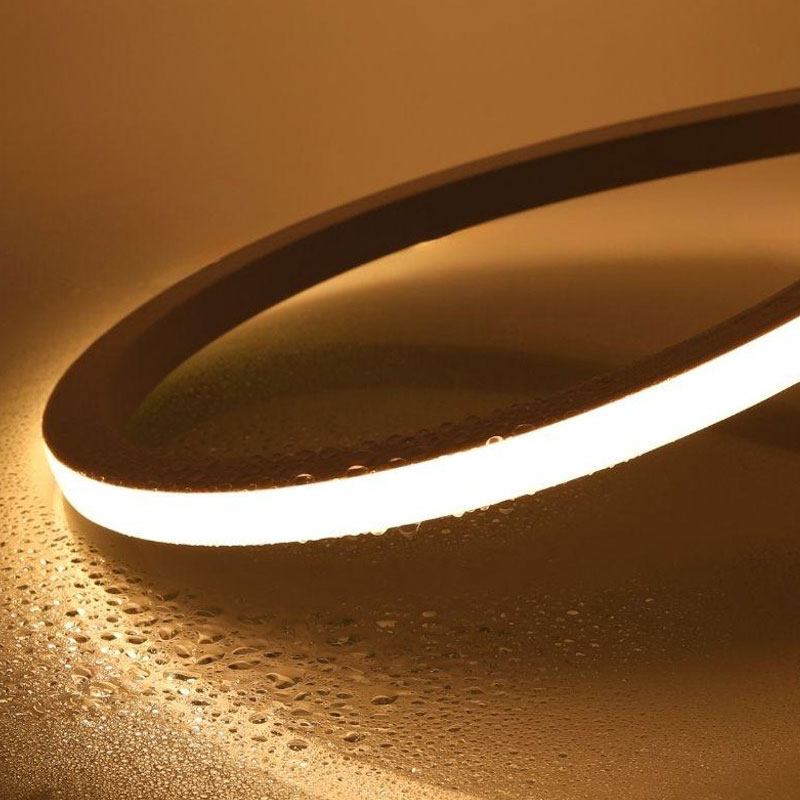

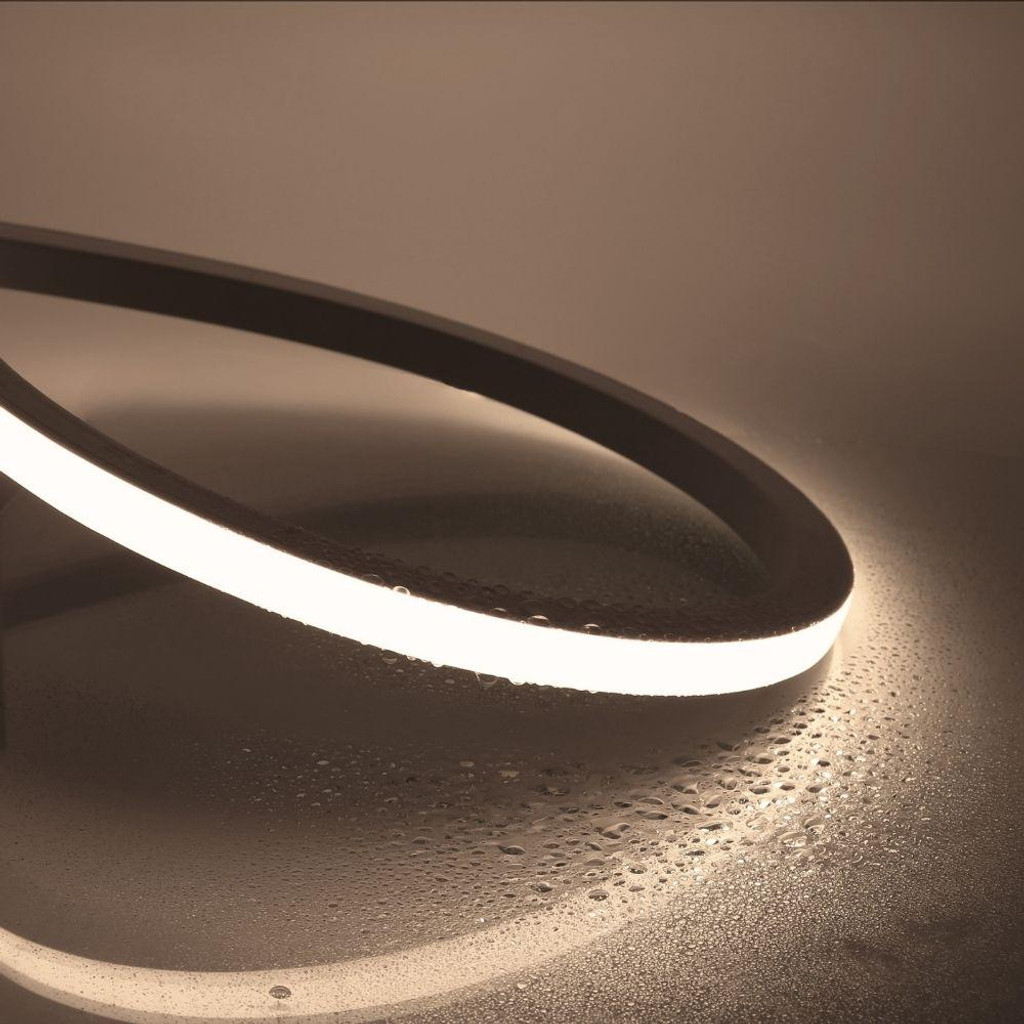

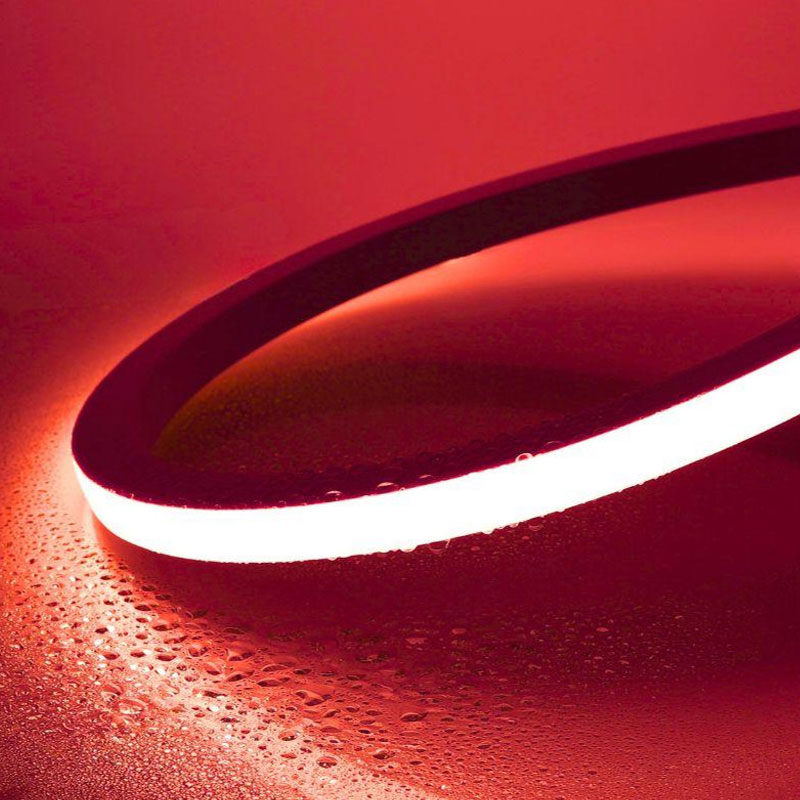

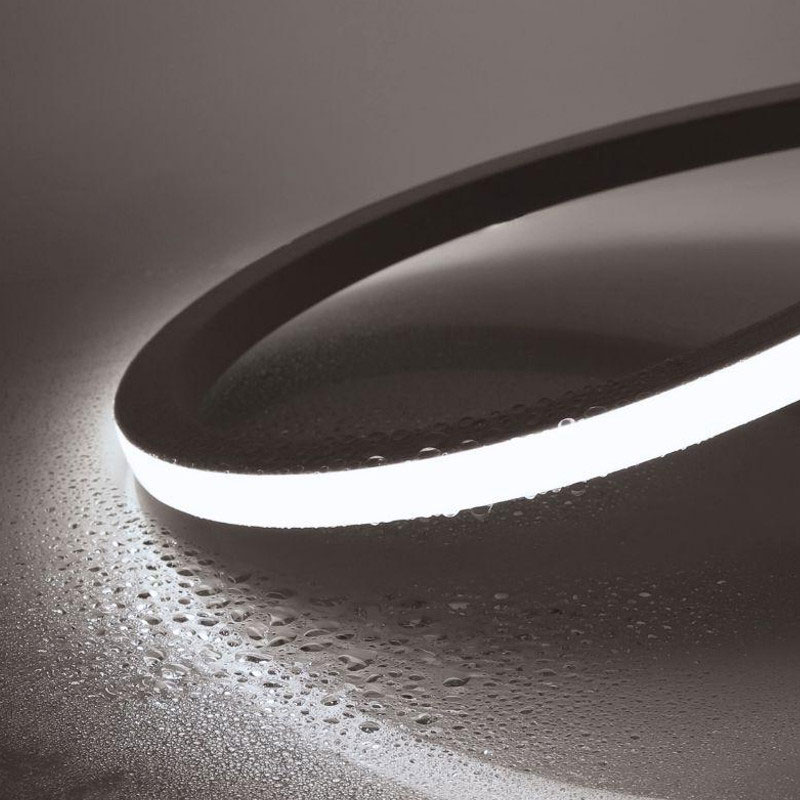

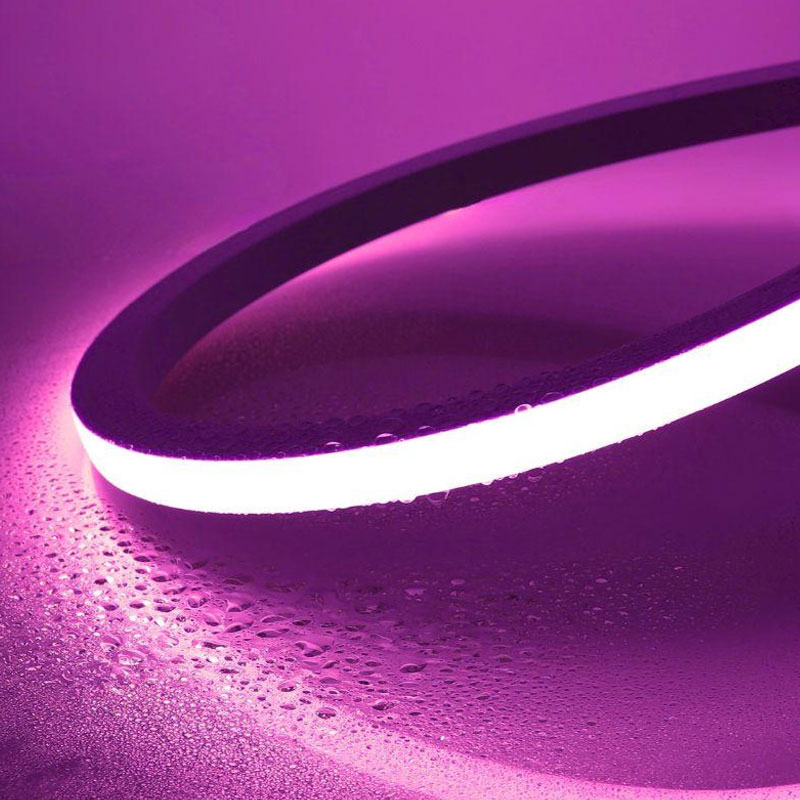

The 16x17 Vertical Bend RGBW LED Neon Flex is a dynamic, colour-changing lighting solution engineered for architectural applications requiring vertical bending. With full RGB output plus selectable white temperatures, this flex is ideal for creative exterior projects where flexible, vibrant, and consistent lighting is key.

Built with a durable silicone housing and precision-integrated FPCB, the flex ensures stable electrical performance while offering flexibility and resistance to UV, solvents, salt water, and flame. Enhanced with >80 CRI and SDCM <3, it ensures high colour fidelity and uniformity across installations.

The unit features 5050 RGBW chips and delivers up to 610 lumens per metre, with the option of RGB+5000K, RGB+3000K or RGB+4000K. Operating in environments from -40°C to +45°C, it is perfectly suited for permanent outdoor use and installations exposed to fluctuating weather conditions.

Supplied by the metre with 83.3mm cut points and a vertical bend profile, this flex also includes an IP68-rated silicone injection-moulded connector for superior durability and protection.

Key Features
Vertical bend configuration
IP68-rated silicone injection-moulded connector
Dimensions: 16mm x 17mm
RGBW configuration: RGB+5000K, RGB+3000K, RGB+4000K
Lumen output up to 610lm/m
CRI >80
SDCM <3 for excellent colour consistency
Operating temperature: -40°C to +45°C
Supplied by the metre with 83.3mm cut points
UV, flame, salt water, and solvent-resistant
5-year warranty
Dimmable

Specifications
Voltage: 24V DC
Power Consumption: 15W/m
LED Density: 84 LEDs per metre
Beam Angle: 110°
CRI: >80
Bend Direction: Vertical
Min. Bend Diameter: 300mm
Max. Run Length: 8m (single-end) / 16m (double-end)
IP Rating: IP68
IK Rating: IK10
Material: Silicone
Operating Temperature: -40°C to +45°C
Warranty: 5 Years

Installation & Bespoke Options
Supplied by the metre with 83.3mm cut increments, this Neon Flex supports bespoke cable directions and lengths. For optimal results, use with compatible mounting accessories.
