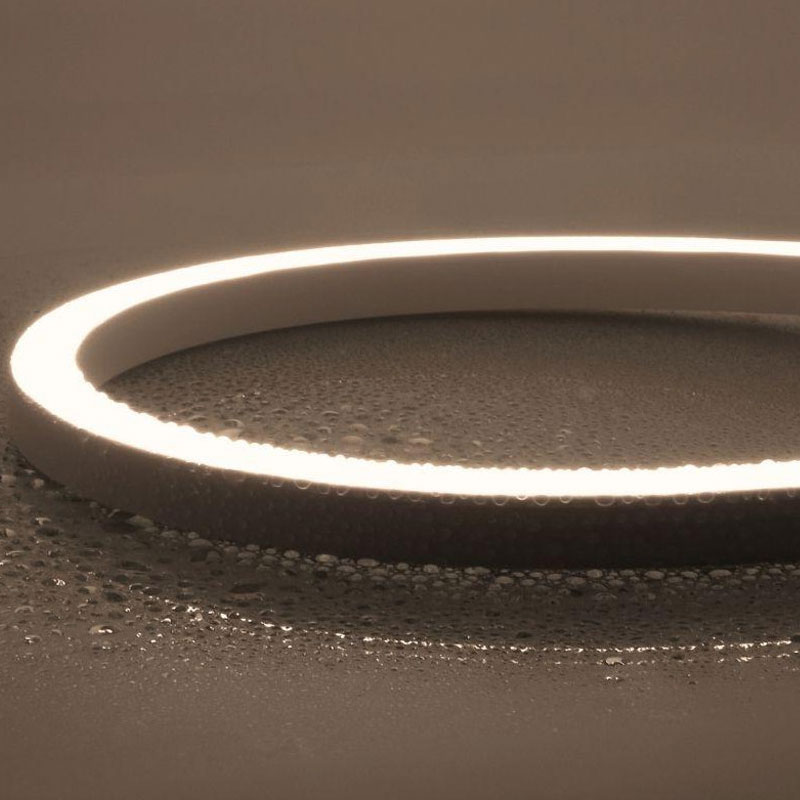

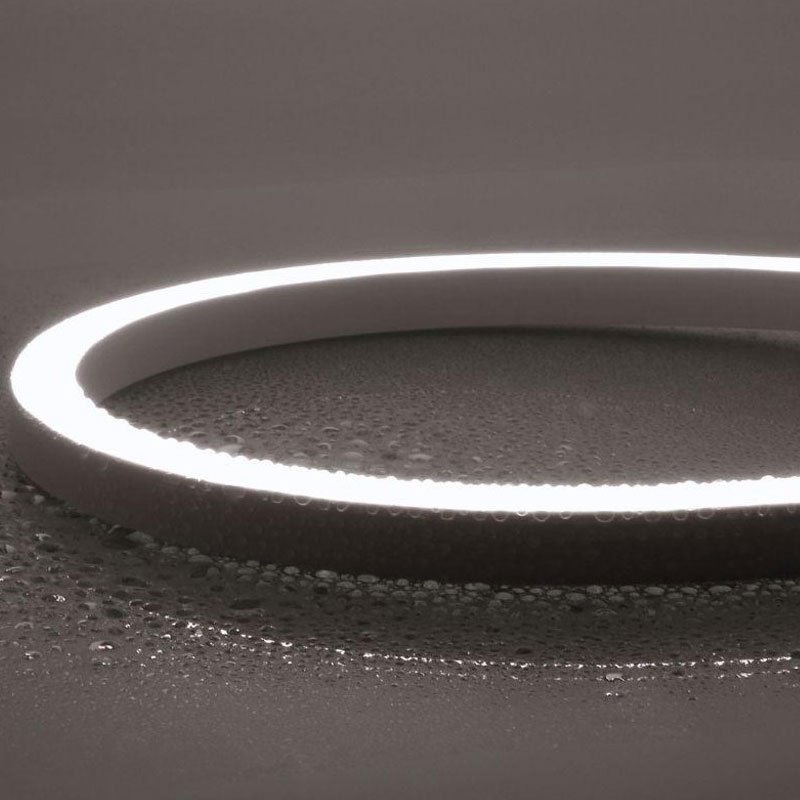

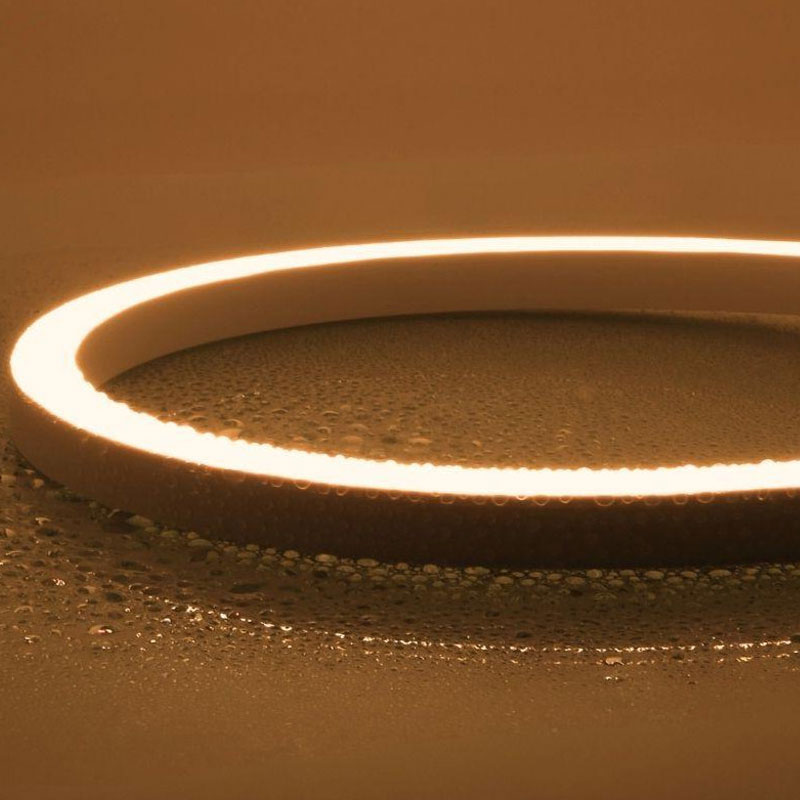

Introducing Our 16x17 Horizontal Bend LED Neon Flex – 24V | CCT Adjustable | Architectural Range

The 16x17 Horizontal Bend CCT Adjustable LED Neon Flex delivers tunable white light across a wide colour temperature range from 2200K to 5700K. Built for architectural installations that require horizontal bending, this high-spec flex is ideal for façade lighting, coves, signage, and external linear features.

Fitted with high-density 3015 LED chips and 144 LEDs per metre, the flex provides a smooth, adjustable white output up to 490 lumens per metre. It is manufactured with a silicone housing that offers robust protection against UV, solvents, flame, and salt water—ensuring long-lasting performance in all environments.

The horizontal bend direction, slimline 16x17mm profile, and 83.3mm cut points enable seamless integration into curved or linear design elements. Designed for both aesthetic and environmental resilience, this product includes an IP68-rated silicone injection-moulded connector for secure outdoor installations.

Key Features
Horizontal bend configuration
IP68-rated silicone injection-moulded connector
Dimensions: 16mm x 17mm
Adjustable white CCT range: 2200K to 5700K
Lumen output up to 490lm/m
CRI >80
SDCM <3 for consistent colour output
Operating temperature: -40°C to +55°C
Supplied by the metre with 83.3mm cut points
UV, flame, salt water, and solvent-resistant
5-year warranty
Dimmable

Specifications
Voltage: 24V DC
Length: 16.4 ft (5 m)
Power Consumption: 12W/m
LED Density: 144 LEDs per metre
Beam Angle: 110°
CRI: >80
Bend Direction: Horizontal
Min. Bend Diameter: 300mm
Max. Run Length: 15m (single-end) / 30m (double-end)
IP Rating: IP68
IK Rating: IK10
Material: Silicone
Operating Temperature: -40°C to +55°C
Warranty: 5 Years

Installation & Bespoke Options
Supplied by the metre with 83.3mm cut increments, this Neon Flex supports custom cable directions and lengths. For best performance, use with compatible mounting accessories.
