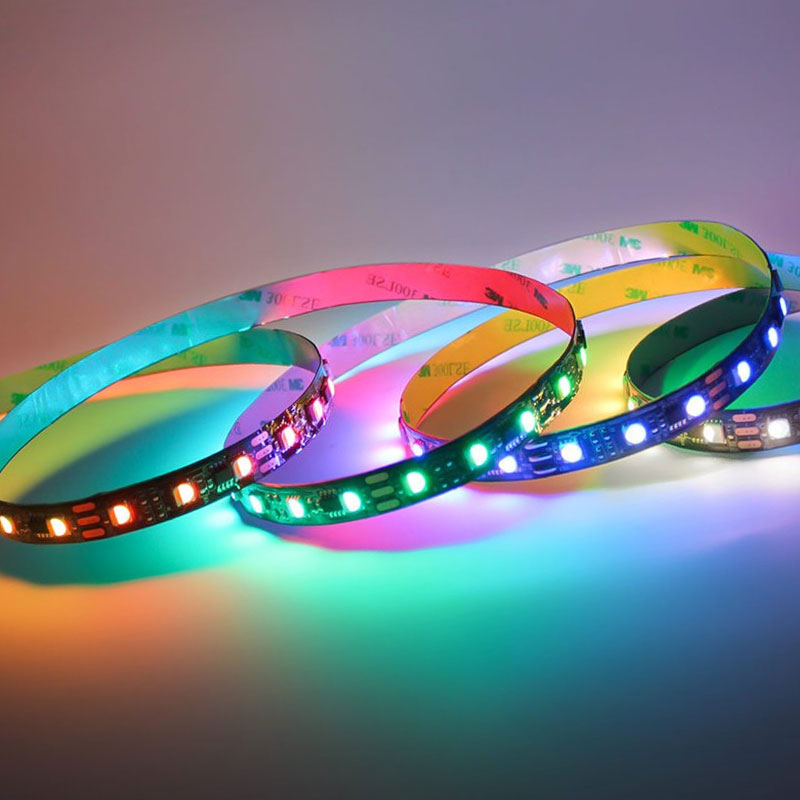

RGBW addressable LED Pixel tape designed to create versatile and dynamic lighting displays. Full colour mixing can be achieved with the addition of the white chip creates a better white tone and allows more accurate colour mixing, especially around pastel tones.

The possibilities are endless when using this digital canvas to set the look and mood. Chase, pulse and animate however desired to make your vision come to life.

Each individual pixel can achieve billions of colour combinations, up to 4,228,250,625 in fact.

This Toning Digital Pixel LED tape utilises the UCS2904 IC Protocol, meaning it has a high PWM (Pulse Width Modulation) rate of 1800Hz and data transfer rate of up to 800kpbs. One of the advantages of the PWM rate is smooth animations and being able to film the tape at up to 60FPS and not see any visible flicker.

Our LED Pixel tapes have been designed to surpass industry benchmarks. We ensure that our products use high quality materials and have a thicker copper than other LED pixel tapes on the market. Manufactured to the highest standards, our tapes are quality checked and assessed to ensure optimal compatibility with our range of pixel controllers.

Thicker copper tracks offer more durability, better heat dissipation, improved current flow and reduces voltage drop, all of which are vital factors towards achieving the best possible product. Inferior PCB tapes commonly have a copper thickness of around one or two ounces, whereas we require our LED Pixel tape to have a 4oz copper.

Product Specification
Colour:    RGB+4000K, RGB+6000K, RGB+3000K
Voltage:    12V
Length:16.4 ft (5 m)
Water Resistance:    IP20
Watts Per Metre:    19.2 Watts p/m
Amps per Metre:    1.2 Amps p/m
Lumens Per Metre:    Red - 159lm | Green - 270lm | Blue - 38lm | 4000K - 558
CCT / Wavelength:    Red - 620-630nm | Green - 515-525nm | Blue - 460-470nm | White - 4000K, 3000K, 6000K
Tape Width:    12mm
Cut Points:    50mm
LEDs Per Metre:    60 LEDs p/m
LEDs Per Pixel:    3 LEDs
Pixels Per Metre:    20 Pixels p/m
Control Type:    Digital Addressable
IC Type:    UCS2904
Colour Resolution:    8 Bits
PWM Rate:    1800Hz
PCB Colour:    Black
PCB Weight:    4oz
Min Operating Temperature:    -40°C°C
Max. Operating Temperature:    50°C
Guarantee:    2 Years
Control Input Resolution (Bits):    8
Ingress Protection (IP):    20
Input Current Type (A):    DC
Input Voltage Min. - Max (V):    12-12V
Body Colour:    Black
Cable Length (m):    500
Copper Foil Weight (oz):    4
Cut Points (mm):    50
LEDs Per Metre (LEDs/m):    60
Pixels Per Metre (Pixels/m):    20
Product Height (mm):    2
Depth (mm):    5000
Product Weight (g):    150
Width (mm):    12
Battery Included:    No
Operating Temperature Min. - Max. (°C):    -40℃ to 50℃
Dimensions LxWxH (mm):    5000x12x2
Family Name:    Pixel SMD
Warranty (Years):    2
Max. Run Length (m):    5
CCT (Kelvin):    4000
CCT Max. (Kelvin):    4000
CCT Min. (Kelvin):    4000
Lumens Per Watt (Lm/W):    45
Bend Direction:    Vertical
Lumens Per Metre (Lm/m):    885
CRI:    80
Cable Length (mm):    500
