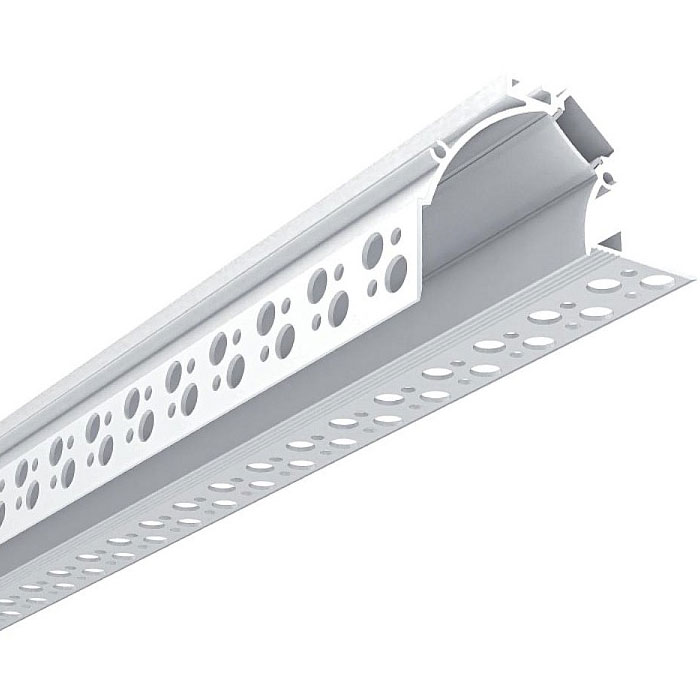

The drywall LED strip diffuser profiles are designed for wall washer lighting. They can be seamlessly integrated into the plasterboard ceilings, creating a clean and modern finish. The profiles will hold and conceal the LED strips at an optimal angle, delivering soft, indirect illumination that washes down walls. They are made of quality 6063-T5 aluminum material with white powder coating surface treatment for anti-oxidation and extended lifespan. The stock length is 2 meters, and it is easy to cut to any desired size. Two types of diffused covers are available: PC diffused and PC semi-clear. They are made of brand material, anti-yellowing, and engineered for even light distribution with reduced glare. The inner width is 15mm and supports flexible LED strips up to 15mm wide. Adding our high-density SMD or COB tape lights without spots is easy. The aluminum base can serve as a heat sink, enhancing heat dissipation. End caps with and without wire holes are included. Three LED profile joiners are sold separately: 90°, 90° vertical, and 180°. You can use them for angled and straight connections. We can also provide inside corner connectors for corner installation.

Specifications:
Material: 6063-T5 aluminum
Surface treatment: Powder-coating
Colors: White
Size( W x H ): 72.3 mm x 58.9 mm ( 2.85" x 2.32" )
Standard lengths: 1 m ( 39" ), 2 m ( 78" )
Custom length available: YES
Diffusers: PC diffused cover / PC semi-clear cover
Inner width: 15 mm ( 0.59" )
Maximum width of LED strips: 15 mm ( 0.59" )
Max. Power: 18W/m
Beam angle: 100°
IP rate: IP20 non-waterproof
Tolerance: ±1%
End caps with/without wire holes included
Inside corner connectors are sold separately
180°, 90° and 90° vertical connectors sold separately
Strips, dimmers, and power drivers are sold separately

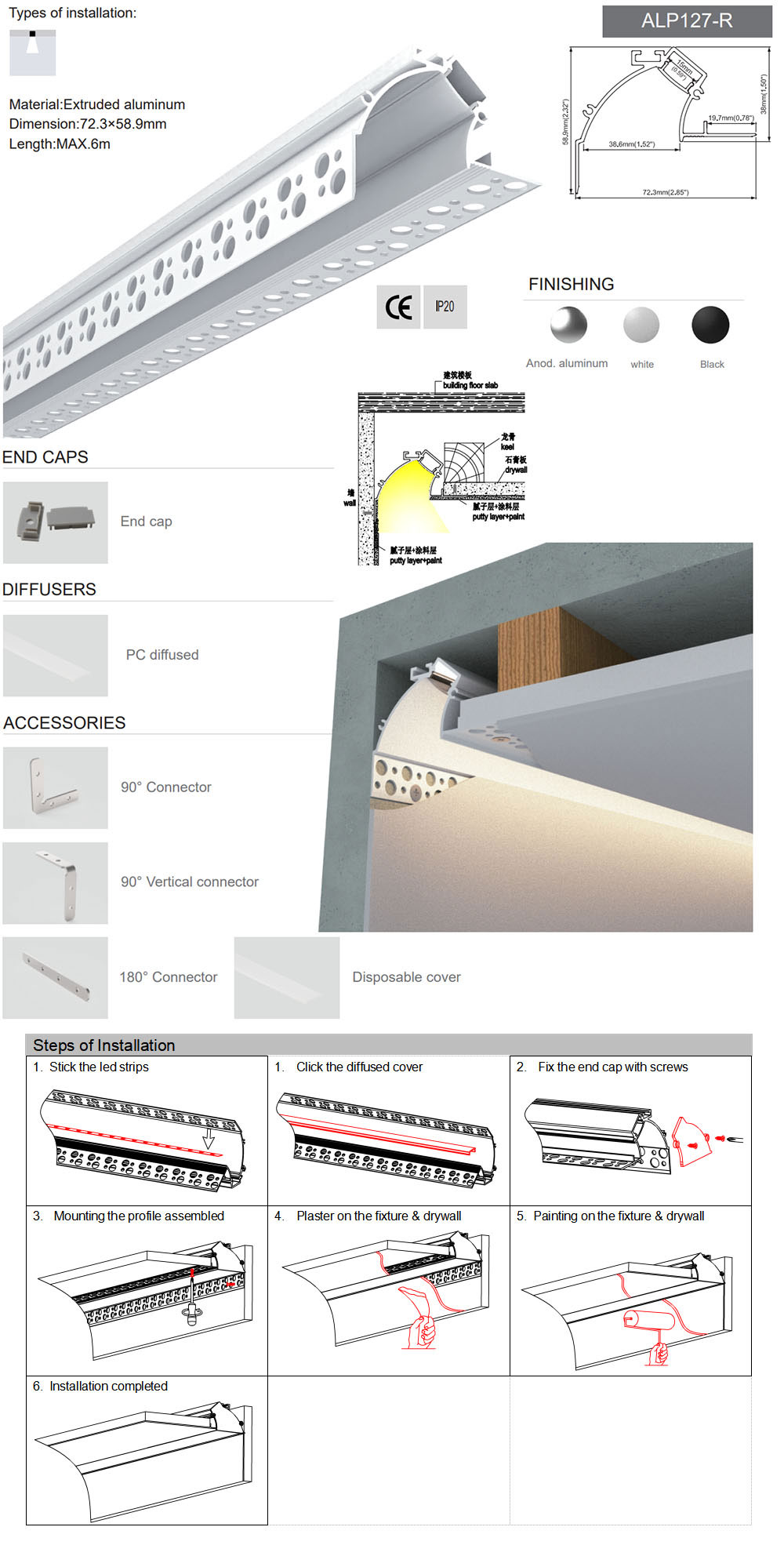

Installation: Trimless recessed
Applications: Wall washer
Certifications: CE, ROHS
Warranty: 5 years

Includes:
1 * LED strip profile with diffuser
End caps(with/without wire holes)

Applications:
Residential spaces: Living rooms, bedrooms, and corridors for ambient lighting without visible fixtures
Commercial Interiors: Hotels, offices, and lobbies to highlight architectural lines and add atmosphere
Retail & showrooms: Accent lighting that enhances space perception and product display
Modern interior design: Especially suitable for non-main-light or indirect lighting concepts
