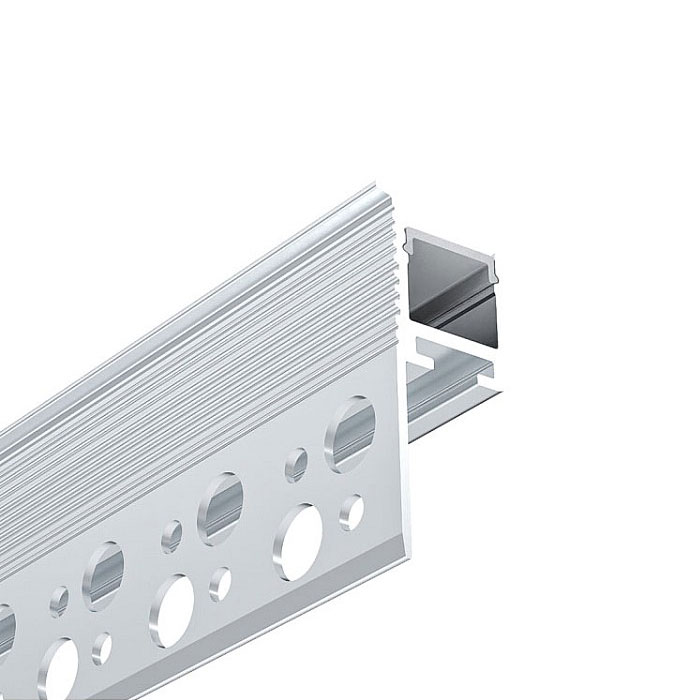

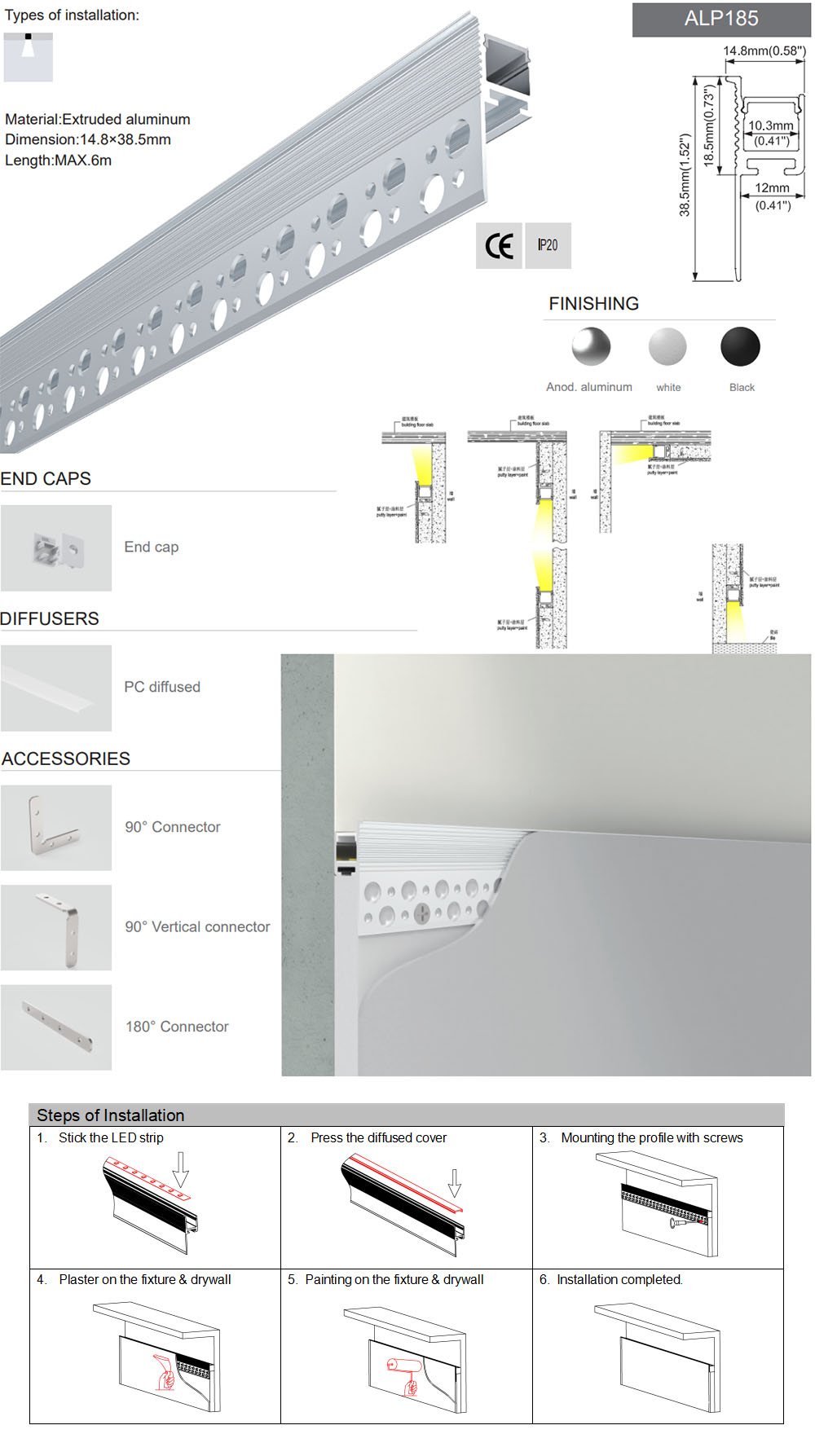

The recessed lighting channels can be mounted seamlessly into the 1/2” gypsum boards and can be used for creating pretty accent lighting in drywall and ceilings. Ideal for modern lighting designs, this plasterboard LED channel enables decorative backlit effects for walls, ceilings, and floors. The slim LED channels are made of 6063-T5 extruded aluminum material and feature anodized surface treatment, providing anti-oxidation resistance and a longer lifespan compared to similar products. The standard lengths are 1 m and 2 m; cuttable and custom lengths are also available. The inner width is 10.3mm, allowing for a maximum width of 10 mm for the LED strips. We recommend installing the flexible COB LED strip lights as the light source, without visible light dots and dark areas. Only one type of diffuser is available: the PC diffused cover, made of high-quality material that is anti-yellowing and features perfect light distribution and smooth light output. There are three types of connectors available. You can use them for straight or angled connections.

Specifications:
Material: 6063-T5 extruded aluminum
Size( H x W ): 38.5 mm x 14.8 mm ( 1.52" x 0.58" )
Surface treatment: Anodized
Colors: Silver
Standard lengths: 1 m ( 39" ), 2 m ( 78")
Custom lengths available: YES
Diffusers: PC diffused cover
Inner width: 10.3 mm ( 0.41" )
Max width of LED strips: 10 mm ( 0.39" )
Max Power: 12W/m
Beam angle: 100°
Tolerance: ±1%
IP rate: IP20 non-waterproof
Installation: Recessed
End caps with and without holes included
180°, 90° and 90° vertical connectors sold separately
LED strip lights are not included
Warranty: 5 years

Includes:
1 * Gypsum recessed light channel with diffuser
End caps(With and without wire hole)
