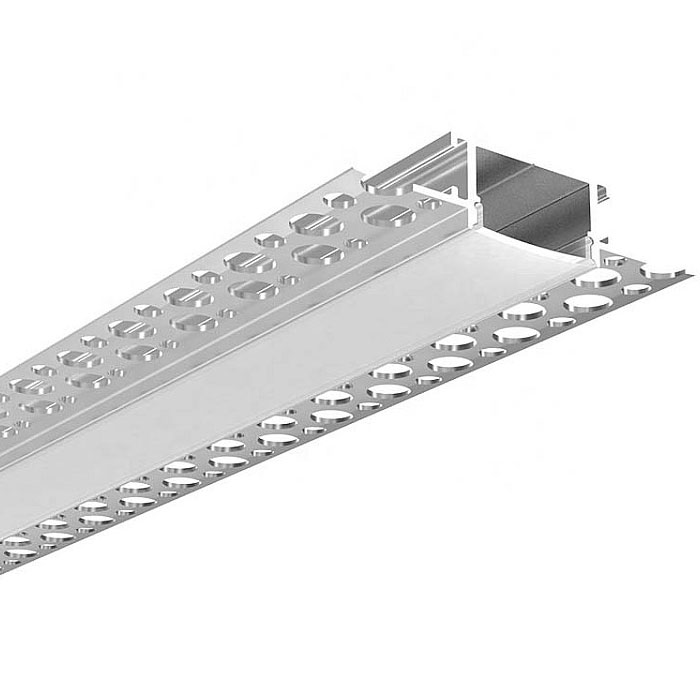

The drywall LED tape channels are designed for seamless integration into 1/2 plasterboards to illuminate ceilings and walls. They can house and conceal a maximum width of 20mm LED strips, protecting them from dust and damage, while ensuring even light diffusion. Ideal for ceiling or wall linear lighting in residential and commercial applications in kitchens, offices, bedrooms, hallways, and more. They are made of 6063-T5 aluminum material with an anodized finish, anti-oxidation resistance, and a longer lifespan. The standard lengths are 1 m and 2 m; you can cut to any length you need. Three types of diffusers are available: PC clear diffuser, PC semi-clear diffuser, and PC opal diffuser. The channel diffusers are made of high-quality material, ensuring stable performance, anti-yellowing properties, and perfect illumination distribution. The inner width is 20.7 mm, allowing for a maximum tape width of 20 mm. Recommend adding high-density COB LED tapes as the source to create a seamless line of lighting without visible hot spots or dark areas. End caps with and without wire holes are included. Three types of joiners are available for angled and straight connections.

Specifications:
Material: AL6063-T5 aluminium
Surface Treatment: Anodized
Color: Silver

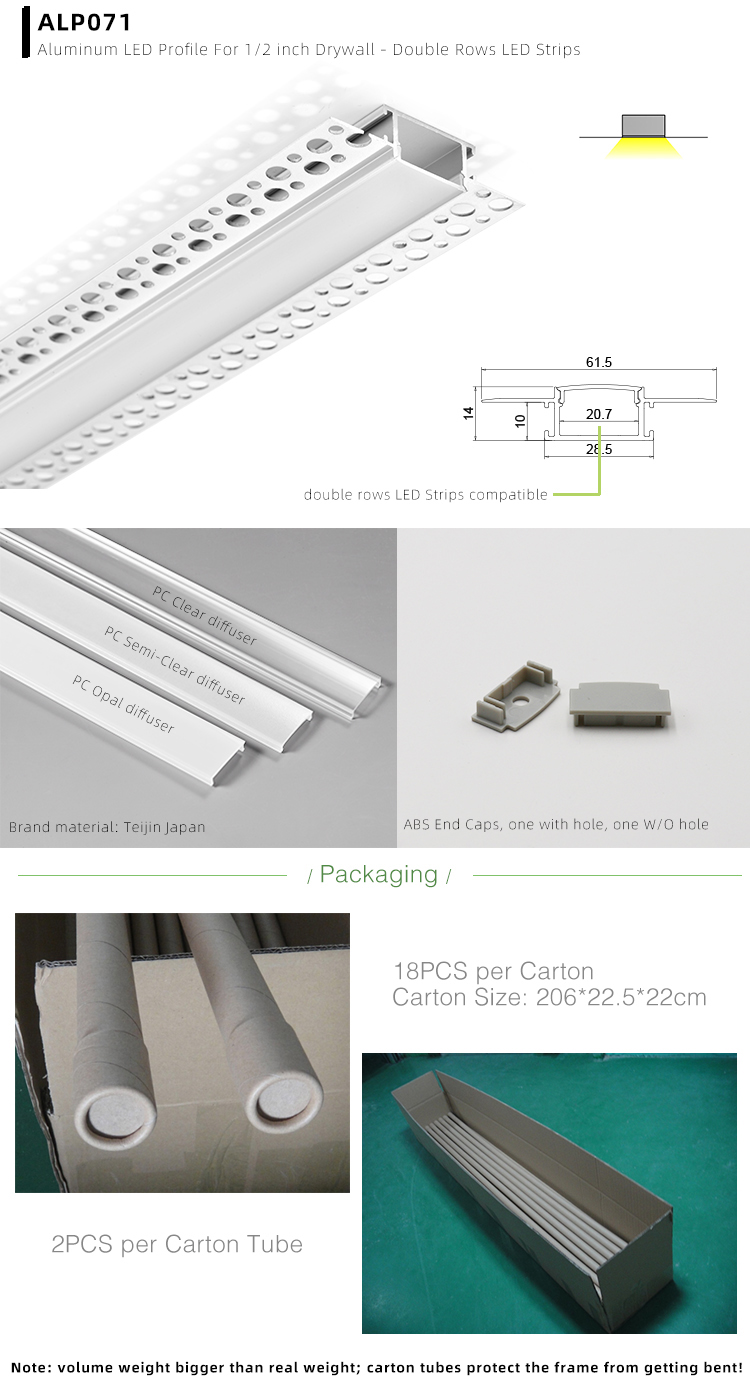

Size(W*H): 61.5*14mm/2.42"*0.55"
Standard Length: 1M(39"), 2M(78")
Custom Length Available: YES
Diffuser: PC clear diffuser, PC semi-clear diffuser, PC opal diffuser
Inner Width: 20.7mm/0.81"
Allows the maximum width of strips to be 20mm/0.79"
Max Power: 15W/M
Recommend adding high-density SMD or 24V COB strips
Beam Angle: 100°
End caps with wire hole included
LED tapes, controllers, and power drivers are sold separately
90°, 90° vertical, and 180° joiners are sold separately

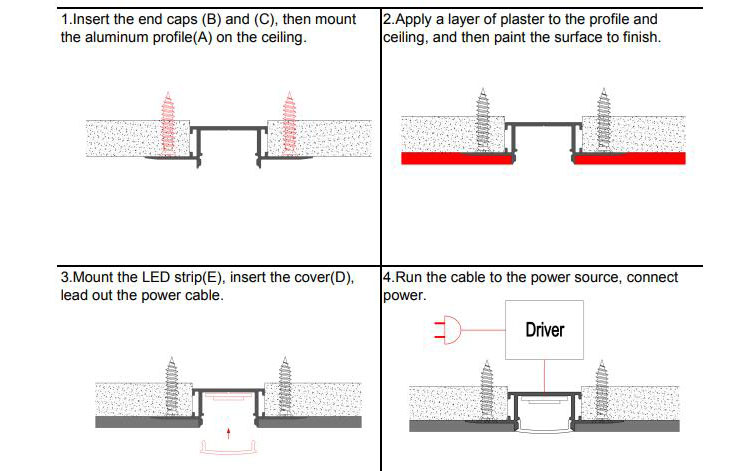

Installation: Plaster-in
Applications: Ceiling/wall linear lighting
Certifications: CE, ROHS
Warranty: 5 years

Includes:
1 * LED tape channel and diffuser
End Caps(with/without wire hole)
