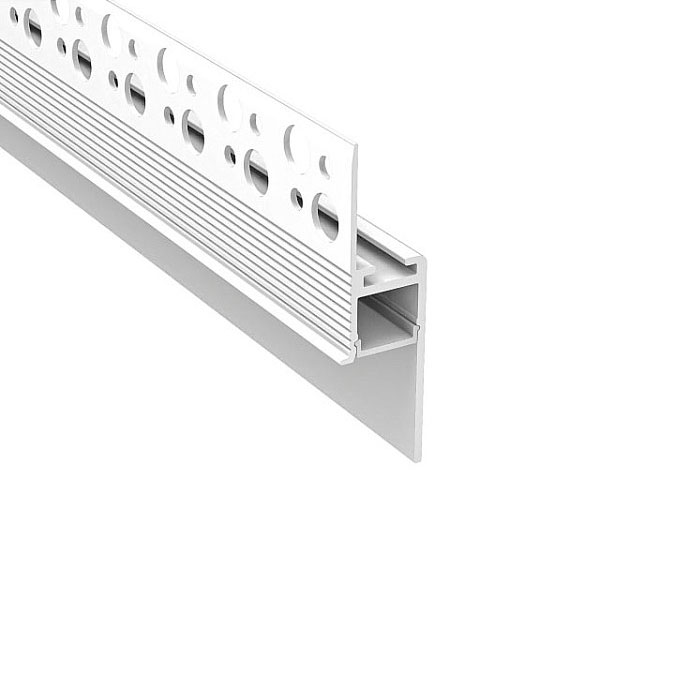

The white LED channels can be seamlessly plastered into 1/2" drywall for a clean and modern finish, creating soft, even lighting on skirting boards, ceilings, and more. Not only do they brighten dark areas to enhance aesthetics, but they also enhance safety if installed along the skirt boards. They are made of 6063-T5 extruded aluminum material with a powder-surface finish for enhanced anti-oxidation resistance and a longer lifespan. The standard length is 2 m per piece, and you can cut to any size you prefer. Only one type of diffuser is available: the PC diffused cover, made of brand-imported material that is anti-yellowing, ensuring perfect light distribution and smooth light output. The inner width is 10.3mm, allowing for a maximum width of 10 mm for the LED strips. Recommend installing the COB LED strip lights as the light source to create a seamless linear lighting effect, eliminating visible light dots and dark areas. The baseboard LED channel can be used as a heat sink to enhance heat dissipation, thereby extending the lifespan of LED lights. End Caps with and without wire holes are included. Three types of connectors are available: 90°, 90° vertical, and 180° LED couplers. You can use these connectors for straight or angled connections.

Specifications:
Material: 6063-T5 extruded aluminum
Surface treatment: Powder-coated
Colors: Silver
Size( H x W ): 75 mm x 14.5 mm  ( 2.95" x 0.57" )
Standard lengths: 1 m ( 39" ), 2 m ( 78" )
Custom lengths available: YES
Diffusers: PC diffused cover
Inner width: 10.3 mm ( 0.41" )
Max width of COB LED strips: 10 mm ( 0.39" )
Max power: 15W/m
Beam angle: 100°
Tolerance: ±1%
IP rate: IP20 non-waterproof
90°，90° vertical and 180° connectors sold separately
End caps with/without holes are included

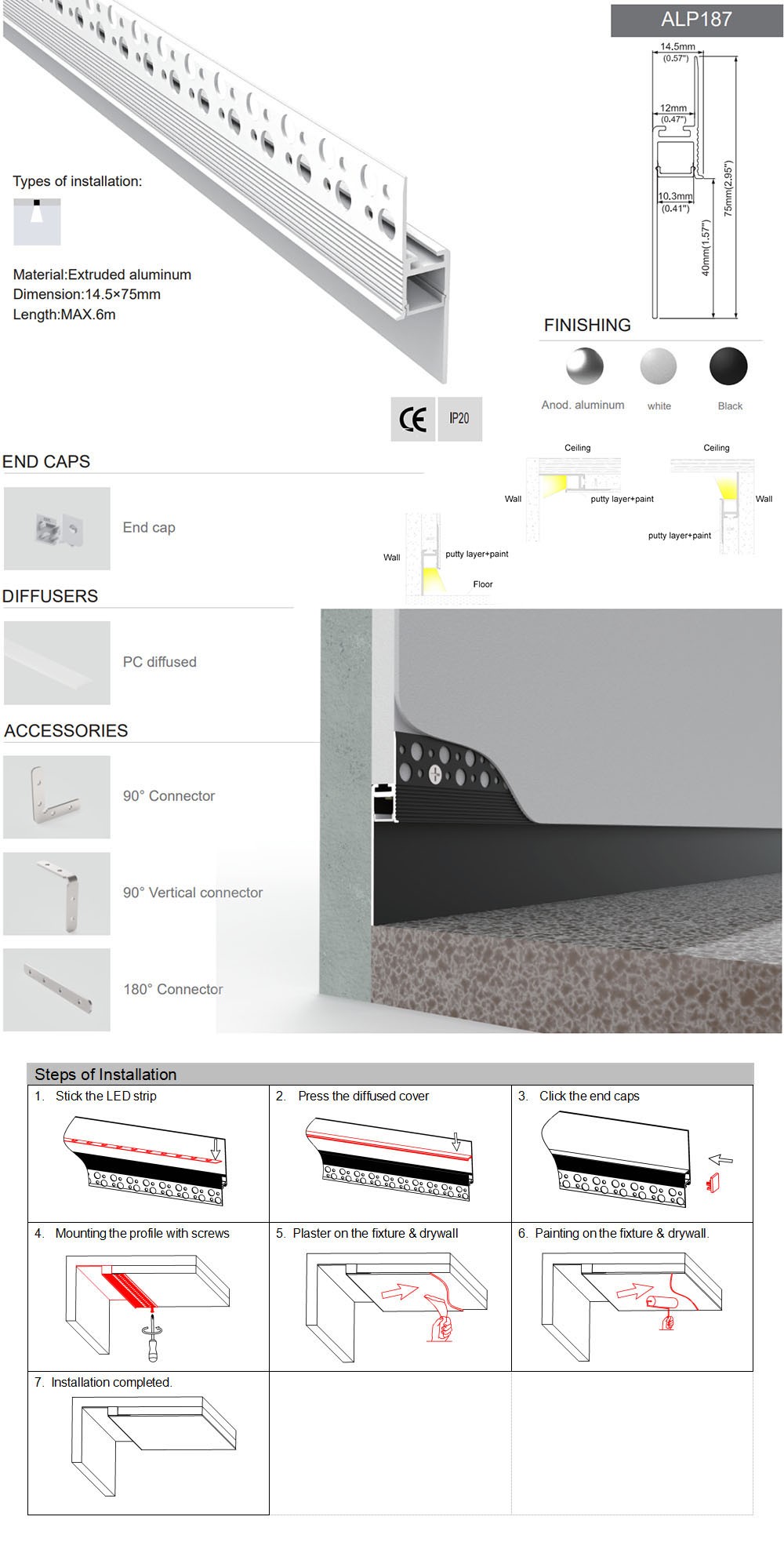

Installation: Plaster-in
Certification: CE, ROHS
Warranty: 5 years

Includes:
1 *  Drywall LED channel with diffuser
End caps(with / without wire hole)

Applications:
1. Wall-to-floor(Skirting Board Lighting): Install at the base of the wall, flush with the floor:

Purpose:
Low-level ambient lighting
Pathway or night lighting
Aesthetic floor-wash effect in hallways, bedrooms, or hotel corridors.

2. Wall-to-ceiling (Wall washer/cove lighting): Recessed at the top edge of the wall where it meets the ceiling.

Purpose:
Indirect ceiling wall lighting
Enhances vertical space visually
Creates a floating ceiling effect in living rooms, lobbies, or galleries

3. Ceiling-to-Wall(Indirect lighting from ceiling edge): Recessed in the ceiling along the edge of the wall.

Purpose:
Creates soft indirect light down the wall
Adds elegance and depth to interior walls
Ideal for modern residential, retail, and hotel interiors
