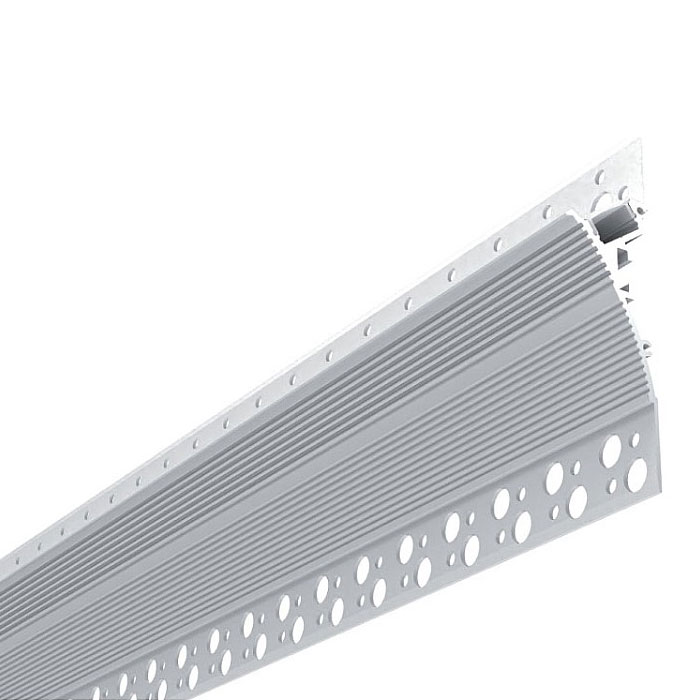

The LED strip channels are designed for seamless integration into drywall and can be easily plastered into the drywall for cove lighting. They help to hide LED strips while delivering evenly diffused illumination. They are perfect for creating a warm, uniform ambiance for residential and commercial spaces. They are made of 6063-T5 extruded aluminum with powder-coated surface treatment for anti-oxidation and a longer lifespan. The stock lengths are 1 m and 2 m, and support custom lengths.  We stock two types of light diffusers: the PC diffused cover and the PC semi-clear cover. They are made of imported brand material, anti-yellowing, and with perfect light distribution. The inner width is 12.3mm, allowing for a maximum width of 12 mm for the LED strips. Adding low-voltage LED strips to the mud in LED profiles is straightforward, and the aluminum base can serve as a heat sink to enhance heat dissipation. The diffused covers protect strip lights from dust, moisture, and physical damage and diffuse the lighting evenly without spots. The 90°, 90° vertical, and 180° connectors are sold separately and can be used for DIY shapes, corners, and extended runs. End caps with and without are included.

Specifications:
Material: 6063-T5 extruded aluminum
Surface treatment: Powder-coated
Colors: White
Size( W x H ): 88 mm x 23.7 mm ( 3.46" x 0.93" )
Standard lengths: 1 m ( 39" ), 2 m ( 78" )
Custom length available: YES
Diffusers: PC diffused cover/PC semi-clear cover
Inner width: 12.3 mm ( 0.48" )
Max width of LED strips: 12 mm ( 0.47" )
Max power: 18W/m
Beam angle: 100°
Tolerance: ±1%
IP rate: IP20 Non-waterproof
End caps with/without wire holes included
180°，90° and 90° vertical connectors sold separately
LED strips, dimmers, controllers, and transformers are sold separately

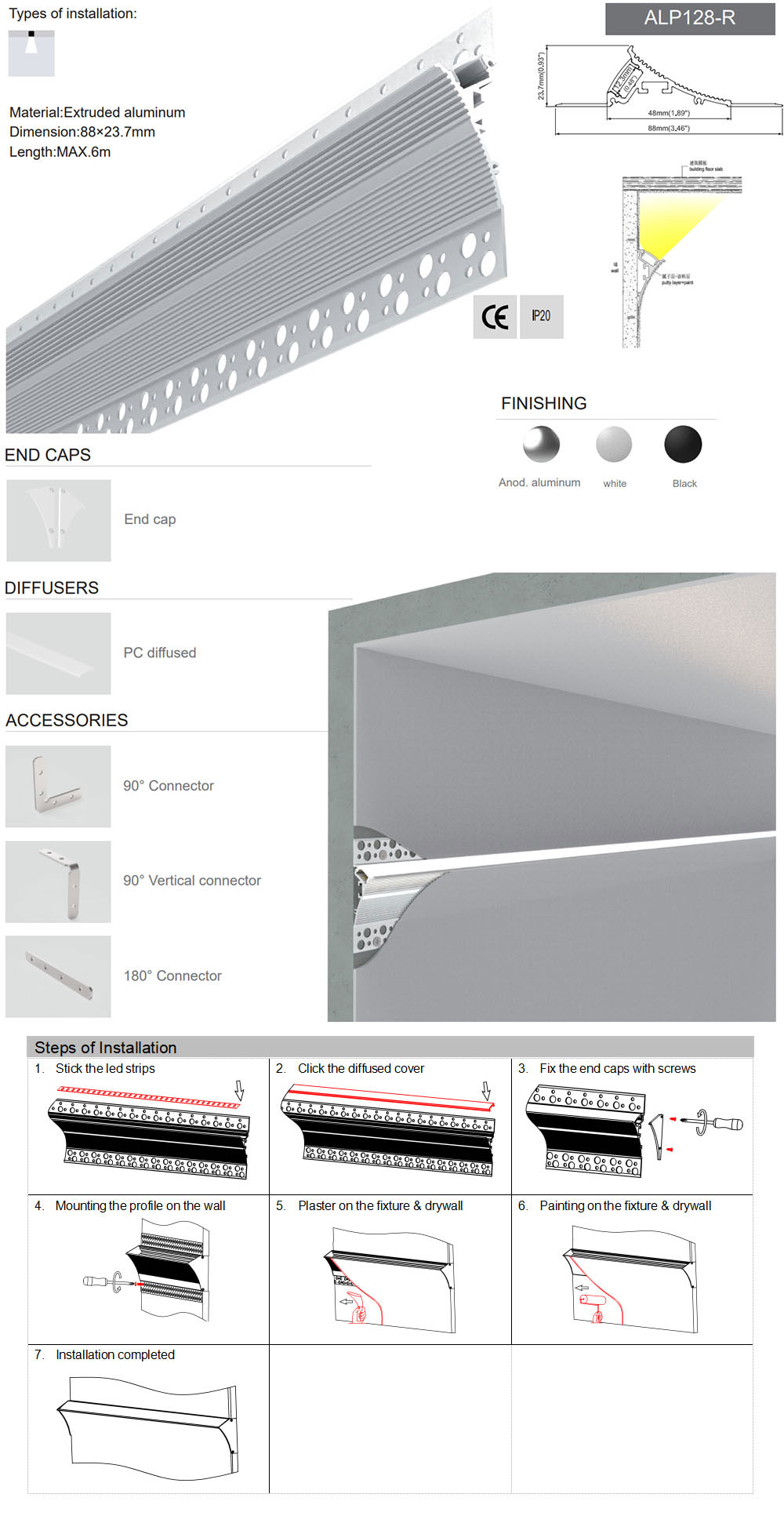

Installation: Plaster-In
Applications: Cove lighting
Certifications: CE, ROHS
Warranty: 5 years

Includes:
1*LED strip channel with diffuser
End caps(with wire/without wire holes)
