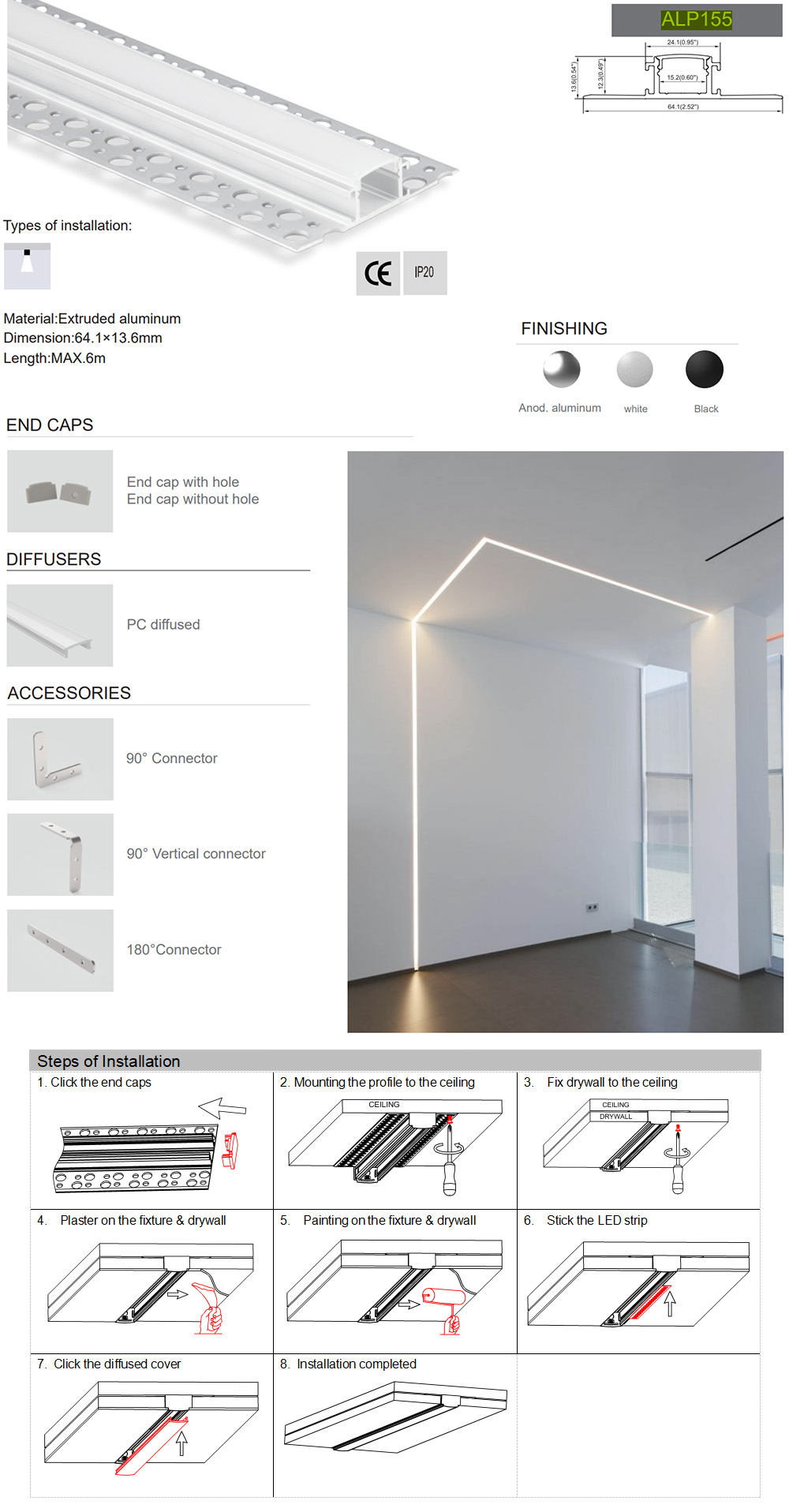

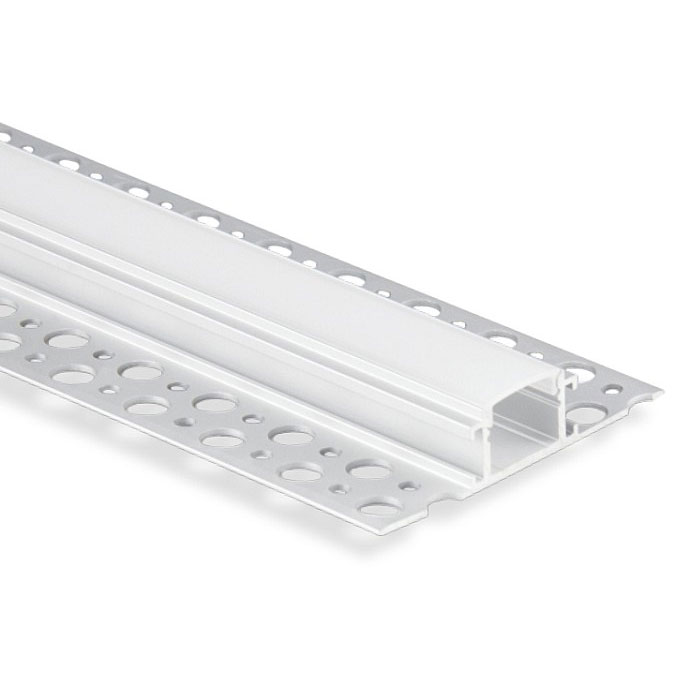

The LED diffuser profile with flanges is designed for drywall applications. Can be recessed into the 12.5mm dry wall to fit flush with surrounding drywall surfaces and provide a seamless, elegant look. The LED profiles are made of 6063-T5 extruded aluminum, which has an anodized surface treatment, is resistant to oxidation, and has a longer lifespan than similar products. There are three colors available: silver, white, and black. The standard length is 1M and 2M, custom lengths are available. Only one type of diffuser is available: the PC diffused cover, which is made of imported brand material, anti-yellowing, with perfect lighting distribution. The inner width is 15.2mm and allows the max-width of LED strips up to 15mm, recommending installing high-density COB LED strips as the light source. End caps with wire holes included, easy to connect the LED strips to a power supply to light up or an LED dimmer to adjust the brightness. 180° and 90° LED Connectors are sold separately, and you can purchase them to reconnect the LED profiles for your lighting projects.

Specifications:
Material: 6063-T5 Extruded Aluminum
Colors: Silver
Size: 64.1*13.6mm(W*H)
Standard Length: 1M
Other Lengths Available: 0.5M, 1.5M, 2M
Custom Length Available: YES
Diffusers: PC Diffused Cover
Inner Width: 15.2mm
Max Width Of LED Strips: 15mm
Max Power: 15W/M
Can Work With SMD LED Strips And COB LED Tapes
Beam Angle: 100°
Tolerance: ±1%
IP Rating: IP20 Non-waterproof
End Caps With Holes/Without Holes Included
180°, 90° And 90° Vertical Connectors Sold Separately
Installation: Recessed Mounting
5 Years Warranty

Includes:
1 * LED Diffuser Profile
End Caps With Hole/Without Hole
