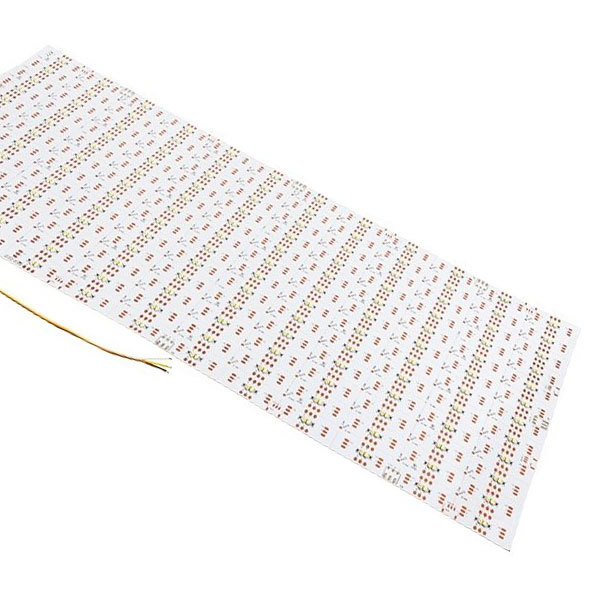

Trim the LED light sheet to fit unique shapes or wrap corners. This flexible sheet contains 288 segments that can be cut in any configuration along the horizontal, vertical, or diagonal lines. The 2 in x 1 in segments ensure even light distribution, ideal for signs or backlighting. Apply this dimmable sheet by peeling off the 3M™ adhesive backing or fastening it with screws at the indicated spots. Select CCT using a controller (sold separately).

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:
Segment size: 2 in. (50.8 mm) x 1 in. (25.4 mm)
Max run with Class 2 wiring: 3 full sheets
Enclosed fixture rated 30 mm
Use a controller to select desired CCT (sold separately)
IP20 rated for dry conditions
PWM dimmable
24 VDC
UL Listed
5-year warranty

Specifications
Ambient Operating Temperature: -20 to 45 °C (-4 to 113 °F)
Certifications/Compliance: CE, UL Listed
Color Temperature: Tunable CCT
CRI: 80+
Current Draw: 1.3 A

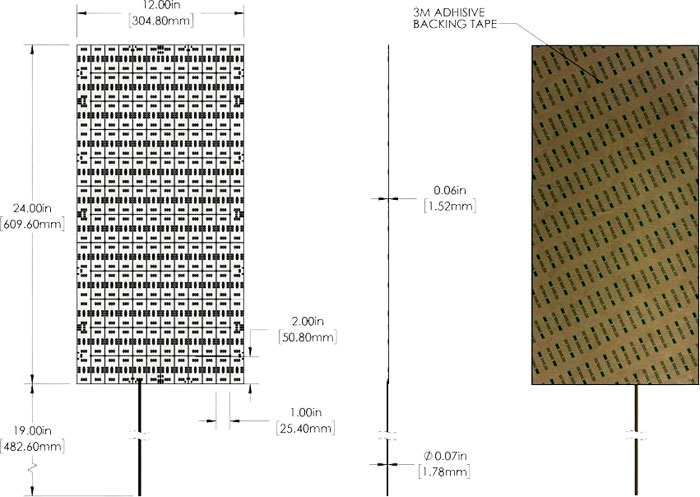

Dimensions: 24in x 12in
Dimmable: Yes
Dimmer Type:PWM
Efficacy: 92 lm/W
Enclosed Fixture Rated: Yes
Environmental Rating: Non-weatherproof, Suitable for Dry Locations
Finish: White
Input Connection Type: Pigtail
IP Rating: IP20
LED Beam Angle: 120°
LED Color: Tunable CCT
LED Chip Type: 2835 SMD
LEDs per Segment: 2
LED Lifetime: 50000 Hours
Max Run (Class 2): 3 Sheets
Operating Voltage: 24 VDC
Segment Size: 2 in. x 1 in. (50.8 mm x 25.4 mm)
Wattage: 30 Watts
