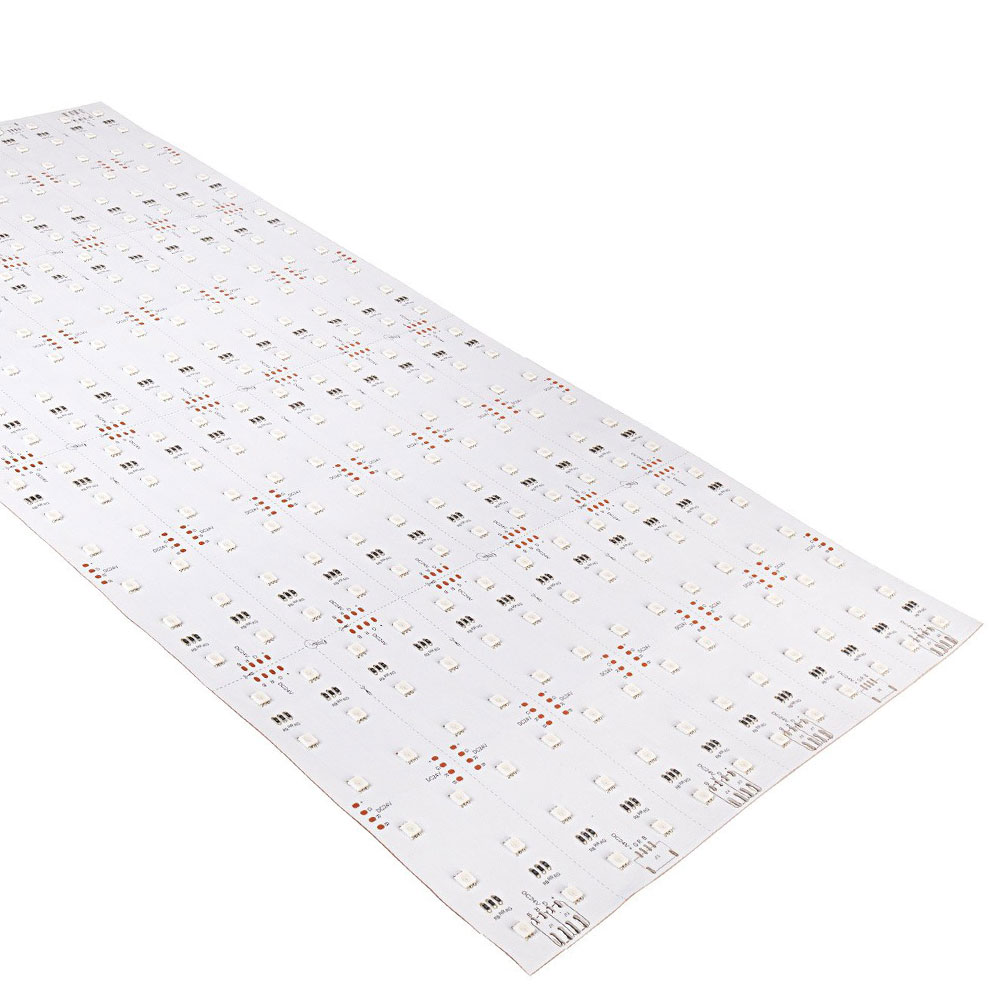

The LLS Series Flexible RGB LED Light Sheet is a versatile solution for creating unique lighting displays in channel letters, displays, and sign lighting. Featuring 288 high-density LEDs per sheet, it delivers smooth, vibrant illumination. Each 24” x 12” flexible sheet is divided into 24 segments, each measuring 6” x 2” and containing 12 LEDs, offering RGB color-changing and dimming capabilities. The light sheet can be tailored to fit irregular shapes and wrap around corners for seamless integration. Installation is made easy with a 3M™ adhesive backing or screw mounting at designated points for secure placement.

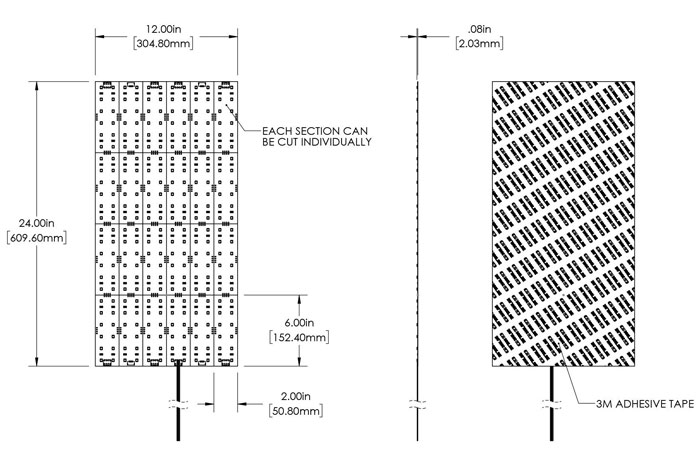

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:
PWM Dimmable
120° beam angle
Max run with Class 2 wiring: 2.5 Sheets
Enclosure rated: Min. 1.18" spacing from LEDs to Diffuser
19” pigtail connection
24 VDC

Specifications
Ambient Operating Temperature: -20 to 45 °C (-4 to 113 °F)
Certifications/Compliance: UL Listed
Current Draw: 1.6 A
Dimensions: 24in x 12in
Dimmable: Yes
Dimmer Type: PWM
Efficacy: 80 lm/W
Enclosed Fixture Rated: Yes
Environmental Rating: Non-weatherproof, Suitable for Dry Locations
Finish: White
Input Connection Type: Pigtail
IP Rating: IP20
LED Beam Angle: 120°
LED Color: RGB
LED Chip Type: 5050 SMD
LEDs per Segment: 12
LED Lifetime: 50000 Hours
Max Run (Class 2): 2.5 Sheets
Operating Voltage: 24 VDC
Segment Size: 6 in. x 2 in. (152.4 mm x 50.8 mm)
Wattage: 40 Watts
