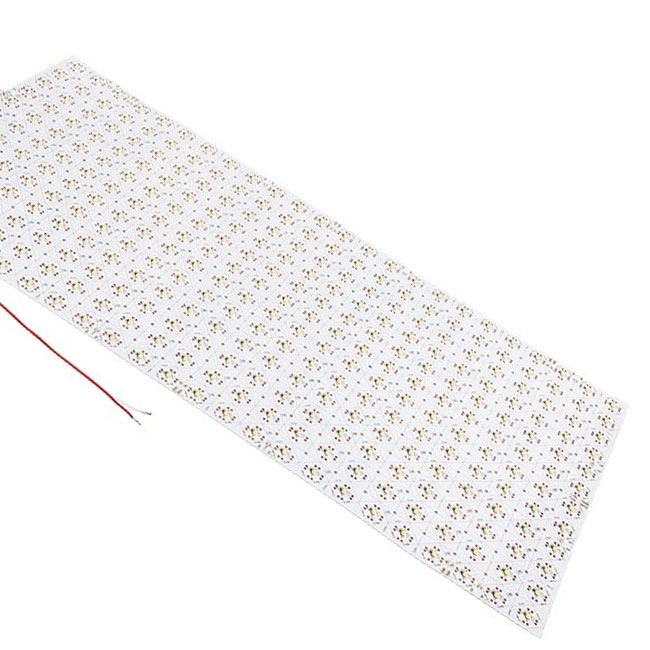

Trim the LED light sheet to fit unique shapes or wrap corners. This flexible sheet contains 24 columns x 12 rows that can be segmented in any shape by cutting along the horizontal, vertical, or diagonal lines. The 1-inch segments ensure even light distribution, ideal for signs or backlighting. Apply this dimmable sheet by peeling off the 3M™ adhesive backing or fastening it with screws at the indicated spots.

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:
Segment size: 1 in. (25.4 mm) x 1 in. (25.4 mm)
Max run with Class 2 wiring: 3 full sheets
Enclosed fixture rated 30 mm
IP20 rated for dry conditions
PWM dimmable
24 VDC
UL Listed
5-year warranty

Specifications
Certifications/Compliance: CE, UL Listed
CRI: 80+
Current Draw: 1.3 A

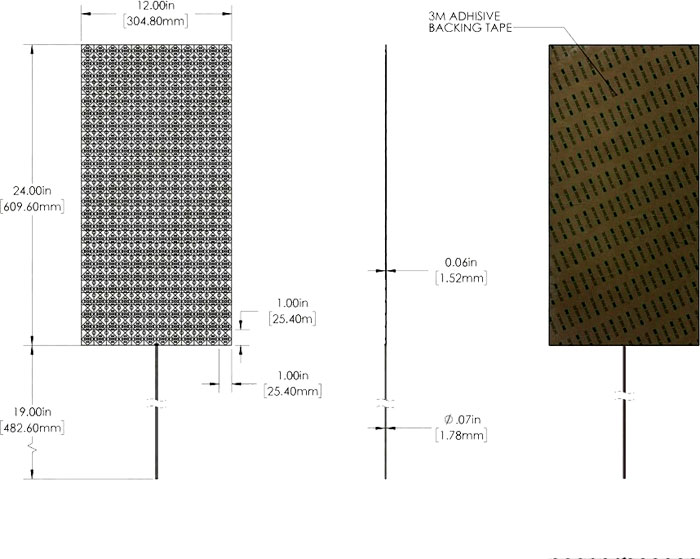

Dimensions: 24in x 12in
Dimmable: Yes
Dimmer Type: PWM
Enclosed Fixture Rated: Yes
Finish: White
Input Connection Type: Pigtail
IP Rating: IP20
LED Beam Angle: 120°
LEDs per Segment: 1
LED Lifetime: 50000 Hours
Max Run (Class 2): 3 Sheets
Operating Voltage: 24 VDC
Segment Size: 1 in. x 1 in. (25.4 mm x 25.4 mm)
Wattage: 30 Watts
