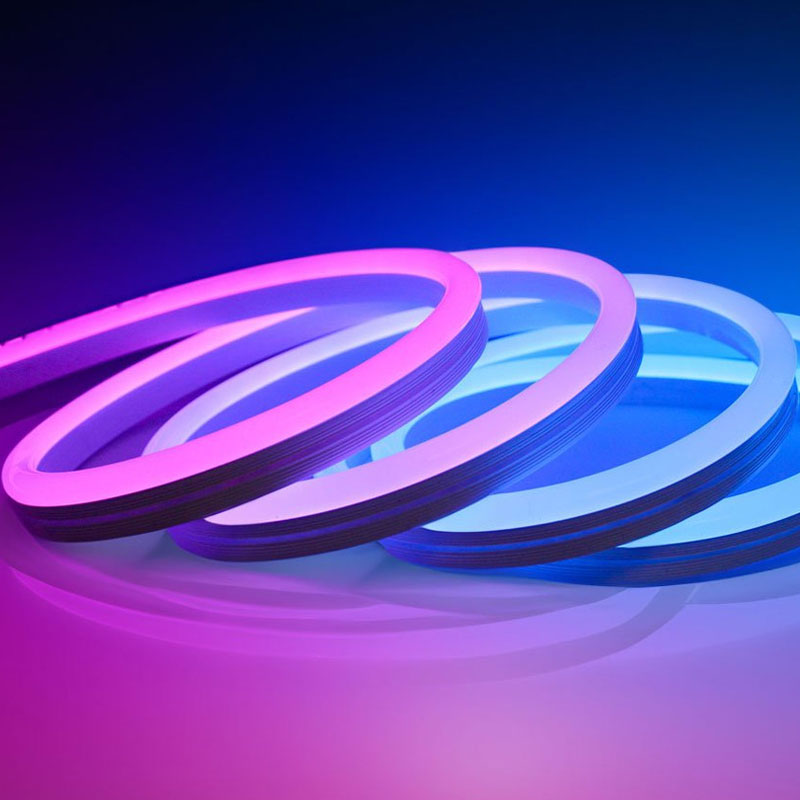

Introducing our silicone encased pixel chasing LED neon flex, the perfect lighting solution for adding a vibrant and captivating atmosphere to any indoor space or short-term outdoor event.

Designed to create stunning spotless visual effects and mesmerizing patterns and hosting 10 pixels per metre, this cutting-edge LED neon flex is the ultimate choice for those seeking to elevate their decor and make a lasting impression. This pixel chasing neon utilises the WS2811 IC type and will need to be controlled via an LED pixel controller. The neon flex gives a spotless appearance when illuminated and has cut points every 100mm. Features a 500mm tail at both ends.

Its IP65 rating also makes it suitable for short term outdoor use and indoor use where light water exposure may occur. Please note: once cut, the IP65 rating can no longer be guaranteed.

Encased in high-quality silicone material, our neon flex is not only durable but also flexible, allowing for seamless installation and customization. Whether you want to illuminate a curved surface, wrap it around objects, or create intricate designs, our LED neon flex bends effortlessly to fulfill your creative vision.

The pixel chasing technology sets our LED neon flex apart from traditional neon lights. With individually addressable LED segments, you can unleash your creativity and design dynamic lighting sequences that move, flash, fade, and chase colours in a synchronized and captivating manner. Transform your space into a captivating light show, perfectly synchronized with your desired ambiance or event theme.

Specifications:
Voltage: 24V DC
Dimensions (WxH): 12mm x 22mm
IC Type: WS2811
Pixels Per Metre: 10 Pixel Per Metre
LEDs Per Metre: 60 LEDs Per Metre
Unit/Cut Length: 100mm
Max Linear Run: 5 Metres
Power: 12W Per Metre
Lumens: Up to 796lm Per Metre
IP Rating: IP65 (subject to correct installation)
Warranty: 1 Year

Technical Documents
Colour:    RGB Pixel Chasing
Voltage:    24V
Length: 16.4 ft (5 m)
Water Resistance:    IP65
Watts Per Metre:    12 Watts p/m
Amps per Metre:    0.5 Amps p/m
Lumens Per Metre:    Red - 224lm | Green - 522lm | Blue - 87lm
CCT / Wavelength:    Red - 620-630nm | Green - 515-525nm | Blue - 460-470nm
Tape Width:    12mm
Cut Points:    100mm
LEDs Per Metre:    60 LEDs p/m
LEDs Per Pixel:    6 LEDs
Pixels Per Metre：    10 Pixels p/m
Control Type：    Digital Addressable
IC Type：    WS2811
Colour Resolution：    8 Bits
PWM Rate：    2000Hz
PCB Colour：    N/A
PCB Weight：    3oz
Min Operating Temperature：    0°C
Max. Operating Temperature：    45°C
Guarantee：    1 Year
Control Input Resolution (Bits)：    8
Body Material：    Silicone
Ingress Protection (IP)：    65
Input Current Type (A)：    DC
Input Voltage Min. - Max (V)：    24-24V
Copper Foil Weight (oz)：    3
Cut Points (mm)：    100
LEDs Per Metre (LEDs/m)：    60
Pixels Per Metre (Pixels/m)：    10
Product Height (mm)：    22
Depth (mm)：    5000
Product Weight (g)：    0
Width (mm)：    12
Battery Included：    No
Lumens Per Metre (Lm/m)：    796
Operating Temperature Min. - Max. (°C)：    0℃ to 45℃
Bend Direction：    Horizontal
Warranty (Years)：    1
Body Colour：    White
Lumens Per Watt (Lm/W)：    66
Family Name：    Quick Connect Series
Beam Angle (°)：    120
Max. Run Length (m)：    5
Wattage (W)：    12
