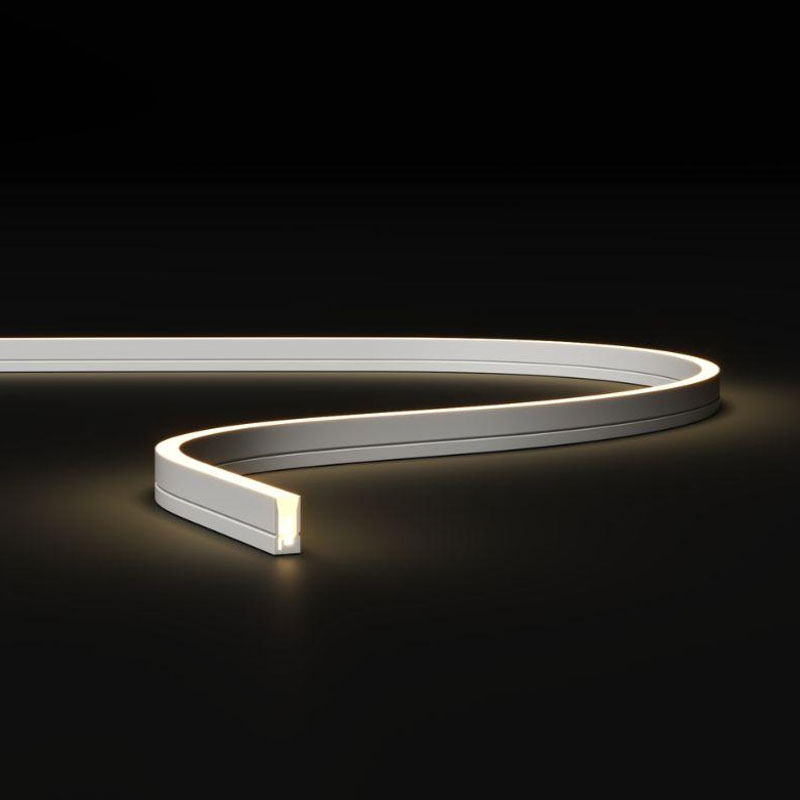

Introducing Our 3x6mm Professional Horizontal Bend LED Neon Flex

Transform your lighting projects with our thinnest ever 3x6mm professional horizontal bend LED Neon Flex – the ultimate lighting solution for slimline, seamless installations in furniture, shelving, cabinetry, and more. Crafted for intricate applications, this ultra-slim profile allows for an elegant, modern aesthetic in even the tightest spaces.

With Cut Anywhere Technology, this LED neon flex ensures precise tailoring. The 120° beam angle and 240 LEDs per metre deliver smooth, shadow-free, high CRI (>90) illumination. Whether you're enhancing residential or commercial interiors, this LED neon flex adds a professional-grade finish.

Rated IP54, it is both dust and moisture-resistant, making it suitable for indoor use including kitchens. Anti-yellowing silicone construction ensures durability, while the integrated 1-metre rear-entry cable and dimmable capability allow for tailored ambiance. Backed by a 5-year warranty.

Available in colour temperatures of 2700K, 3000K & 6000K to suit various lighting schemes. For additional colour temperatures, please see NEONTOP306-5M.

Important Installation Note:
The 3x6mm LED neon flex has a ±0.2mm tolerance. Customers should measure precisely before routing out the groove for fitting the neon flex to ensure a perfect installation.

Introducing our thinnest ever LED neon flex, engineered for slimline installations and intricate design applications. Its compact profile supports precision fitting and discreet integration. The anti-yellowing silicone enhances longevity, while the IP54 rating ensures protection against dust and moisture. With dimmable functionality, a high CRI (>90), and 120° beam angle, it delivers smooth, uniform illumination in demanding interior environments. Supplied with all required accessories, including silicone glue, end caps, and brackets. Covered by a 5-year warranty.

Specifications
Voltage: 24V
Max. Power: 9.9W/m
LED Density: 240 LEDs/m
CRI: >90
Beam Angle: 120°
Dimensions: W3mm x H6mm
Warranty: 5 Years
IP Rating: IP54 (suitable for indoor use)

Installation
We recommend this LED neon flex is installed within a dedicated LED channel for optimal heat dissipation and clean aesthetics. Ensure the routing groove is measured precisely before installation, allowing for the ±0.2mm tolerance of the 3x6mm profile.

All mounting accessories are included in the kit, including silicone glue and mounting brackets to ensure a secure fit. The additional 500mm power cable provides flexibility for bespoke installations. This product is suitable for indoor use only and must be installed by a qualified electrician.

Product Specification
Warranty (Years)：    5
Length: 16.4 ft (5 m)
Control Signal - Input：    PWM
Dimmable：    No
Current Max. Rated (A)：    1.87
Anti-Yellowing：    Yes
Application Environment：    Furniture, Cabinetry, Retail, Commercial
Body Material：    Silicone
Ingress Protection (IP)：    54
Interior or Exterior Use：    Interior
Saltwater Resistant：    No
Solvent Resistant:    No
Storage Humidity Max. (°C):    60
UV Resistant:    No
Working Humidity Max. (°C):    80
Input Voltage Min. - Max (V):    24-24V
Body Colour:    White
Cable Both Ends:    Yes
Cable Length (mm):    500
Cable Weight (AWG):    20
Chip Type:    2216
Cut Points (mm):    0
LED Pitch (mm):    4.1
LEDs Per Metre (LEDs/m):    240
Product Height (mm):    6
Width (mm):    3
Constant Voltage / Constant Current:    CV
End Caps Included:    Yes
Fixings Included:    Yes
Beam Angle (°):    120
CRI:    90
SDCM:    3
Electrical Safety Class:    III
Operating Temperature Min. - Max. (°C):    -20℃ to 45℃
Dimensions LxWxH (mm):    5000x3x6
Bend Direction:    Horizontal
Family Name:    Joinery Series
Max. Run Length (m):    5
