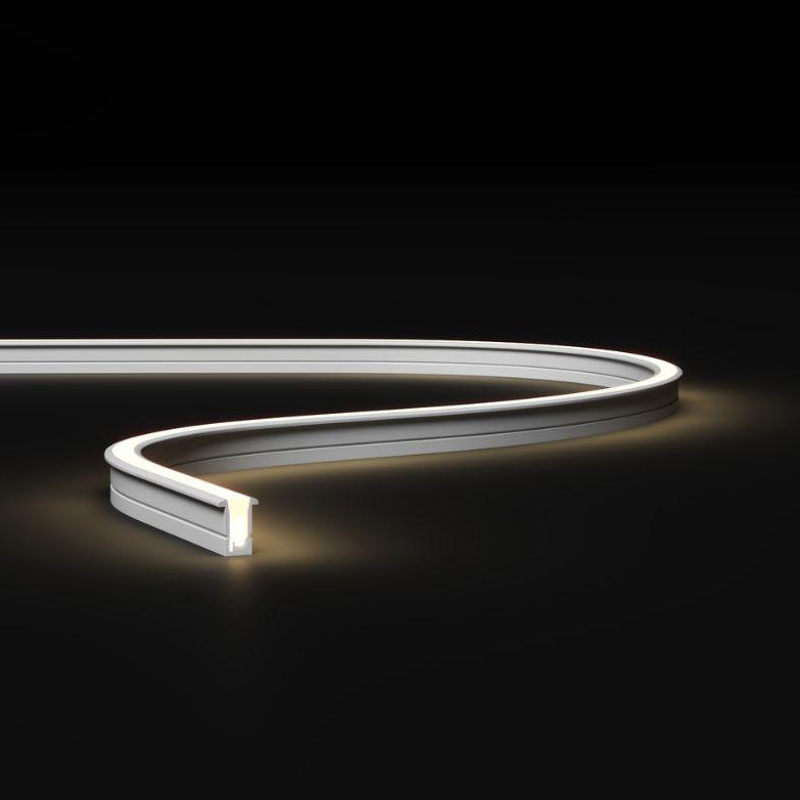

Introducing Our Thinnest Ever LED Neon Flex: 3x6mm Professional Horizontal Bend Neon with Trim

This version includes a trim, ideal for installations where the surface is not perfectly even. The trim extends slightly over the edge of the surface, concealing any gaps or rough edges to deliver a cleaner, more refined appearance.

Transform your lighting designs with our latest innovation, the 3x6mm Professional Horizontal Bend Neon Flex. This ultra-slim LED neon is crafted for intricate applications, such as shelving, cabinetry, and bespoke furniture. Designed for seamless installations, it delivers a sleek, high-end finish with a delicate, 120-degree light output that fits effortlessly into even the tightest spaces.

Tailored for furniture and cabinetry professionals, this micro-recessed neon is the ultimate solution for creating elegant, bespoke lighting features that captivate and inspire.

From cabinetry and shelving to bespoke furniture, this LED neon flex transforms interiors with its refined, professional-grade illumination. Its precision-cut design and elegant lighting output elevate the aesthetics of any space, making it a preferred choice for high-end projects.

Important Installation Note:
The NEONTOP306TRIM has a ±0.2mm tolerance. Customers should measure precisely before routing out the groove for fitting the neon flex to ensure a perfect installation. Recommended recess depth of 5mm ±0.2mm.

Key Features:
With its ultra-thin 3x6mm profile, this neon flex fits neatly into tight spaces, delivering a sleek, refined finish. Cut Anywhere Technology ensures precise tailoring, while a 120° beam angle with 240 LEDs per metre provides smooth, shadow-free lighting. Available in 2300K, 2700K, 3000K, 4000K, and 6000K, it suits any design brief. Dust- and moisture-resistant with an IP54 rating, it’s perfect for indoor use, including kitchens. Made from durable, anti-yellowing silicone and backed by a 5-year warranty.

Specifications:
Voltage: 24V DC
Max. Power: 9.9W/m
LEDs per metre: 240 LEDs
Cut Points: Cut Anywhere
CRI: >90
Beam Angle: 120°
SDCM: <3
Dimensions: W3mm x H6mm (Tolerance ±0.2mm)
Lumens per metre: Up to 270lm
Warranty: 5 Years
IP Rating: IP54 (indoor use only)

Installation:
The IP54-rated neon flex is designed for indoor applications and features a rear-entry cable with a 1000mm length for easy installation. To ensure secure placement and optimal performance, we recommend using mounting tracks. Always account for the ±0.2mm tolerance when routing installation grooves.

Product Specification
Warranty (Years)；    5
Length: 16.4 ft (5 m)
Anti-Yellowing：    Yes
Ingress Protection (IP)：    54
Saltwater Resistant：    No
Solvent Resistant：    No
Copper Foil Weight (oz)：    3
Cut Points (mm)：    0
LED Pitch (mm)：    4.1
Product Height (mm)：    6
Width (mm)：    3
Constant Voltage / Constant Current：    CV
Bin Number：    1
Electrical Safety Class：    III
Operating Temperature Min. - Max. (°C)：    -20℃ to 45℃
Family Name：    Joinery Series
Bend Direction:    Horizontal
Max. Run Length (m):    5
Input Voltage Min. - Max (V):    24-24V
Body Colour:    White
Chip Type:    2216
Entry Cable Direction:    Rear
Beam Angle (°):    120
CRI:    90
SDCM:    2
Body Material:    Silicone
LEDs Per Metre (LEDs/m):    240
