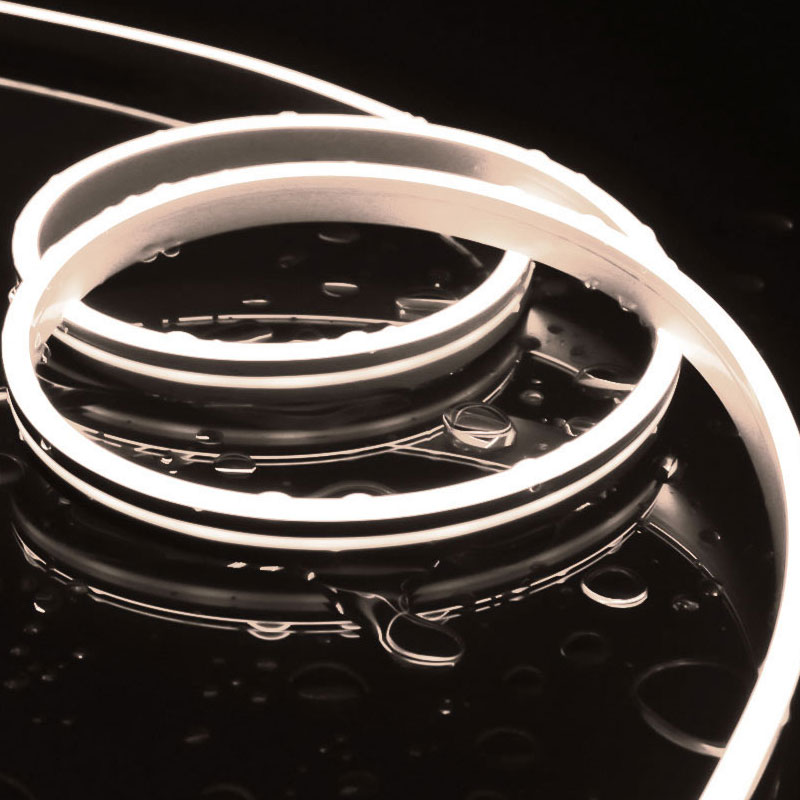

4x10mm Micro Neon Flex is a high-quality lighting solution designed primarily for furniture lighting. It has a silicone outer casing which means it is both durable and flexible and allows it to easily fit into a correctly sized routed groove, making for a flush, seamless finish to your installation.

Neon Flex is a durable fully diffused linear light perfect for furniture installations thanks to it’s ultra slimline micro profile. This neon can be cut easily to your desired lengths at the allocated cut points. Maximum length at any time is 5 metres before visible voltage drops occur.

With its vibrant neon glow, this micro flex adds a touch of personality and style to any furniture piece. It is low voltage and energy-efficient, making it both safe and cost-effective to use.

Whether you're looking to light up a kitchen counter, accent a bookshelf, or brighten up a bathroom mirror, the 4x10mm Micro Neon Flex is the perfect choice for all your furniture lighting needs.

It's durable IP65 body allows for installations where light water exposure may occur, such as in a bathroom or kitchen.

This 5m kit comes with everything you will need for installation including mounting brackets, endcaps, a spare 500mm length of 2 core cable, silicone sealant and a pre attached 2 core tinned end cable at one end, ready for hard wiring into a compatible controller and/or 12V driver.

Neon Flex can be dimmed via mains dimming, DALI, DMX, RF or 0-10 controllers.

Our 4x10 Micro Neon Flex comes with a 3 year guarantee as standard on indoor installations.

Dimming Compatibility
Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.
Driver Requirements:
1 metre > 8w
2 metre > 16w
3 metre > 24w
4 metre > 32w
5 metre > 40w

all products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.

Specifications:
Colour:    4000K Neutral White
Voltage:    12V
Water Resistance:    IP65
Impact Resistance:    IK06
Watts Per Metre:    7.9Watts p/m
Amps Per Metre:    0.65 Amps p/m
Lumens Per Metre:    300 lm/m
CRI:    90
Length:    5 Metre Reel
Width:    4mm
Bend Direction:    Horizontal
Max. Linear Run:    5 Metres
Cut Points:    17mm
Material:    Silicone
Min. Operating Temperature:    -20°C
Max. Operating Temperature:    45°C
Guarantee:    3 Years
Max. Run Length (m):    5
Body Material:    Silicone
Ingress Protection (IP):    65
Input Current Type (A):    DC
Input Voltage Min. - Max (V):    12-12V
Cut Points (mm):    17
LEDs Per Metre (LEDs/m):    168
Product Height (mm):    10
Depth (mm):    5000
Product Weight (g):    289
Width (mm):    4
Battery Included:    No
CCT (Kelvin):    4000
CCT Max. (Kelvin):    4000
CCT Min. (Kelvin):    4000
Lumens Per Metre (Lm/m):    270
Operating Temperature Min. - Max. (°C):    -20℃ to 45℃
Dimensions LxWxH (mm):    5000x4x10
Colour Temperature Min. - Max. (Kelvin):    4000-4000K
Brand:    Tagra
Family Name:    Joinery Series
Warranty (Years):    3
Body Colour:    White
Lumens Per Watt (Lm/W):    34
Beam Angle (°):    120
SDCM:    3
Cable Both Ends:    No
Cable Length (mm):    500
Total Lumens (Lm):    1350
