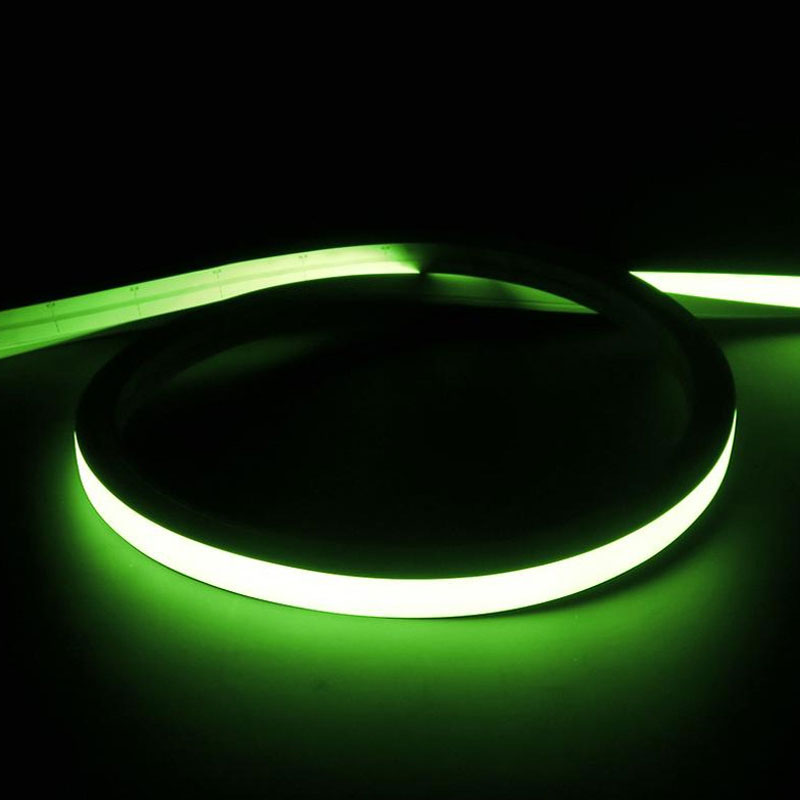

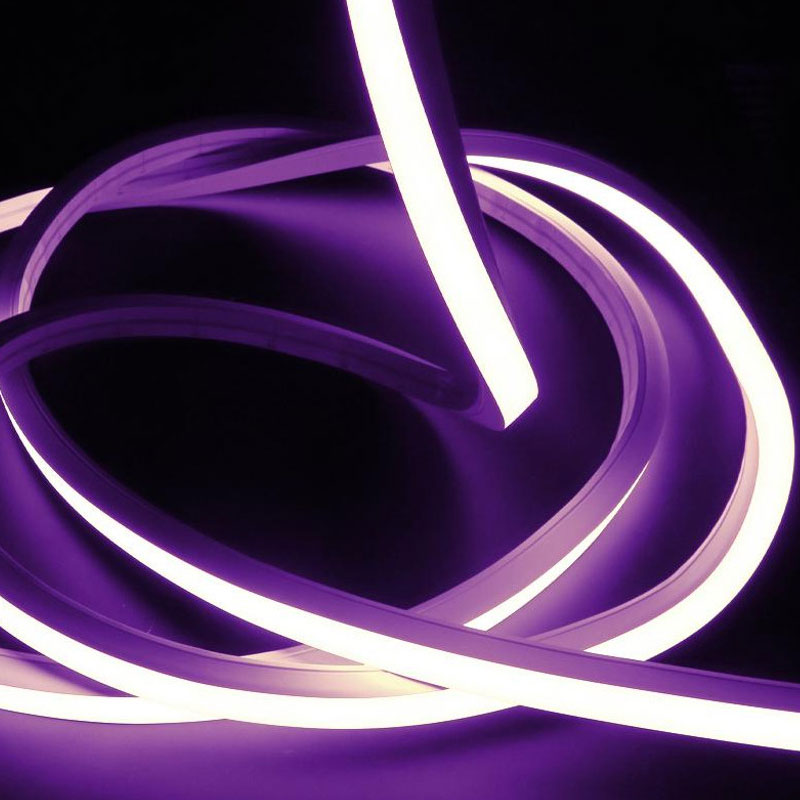

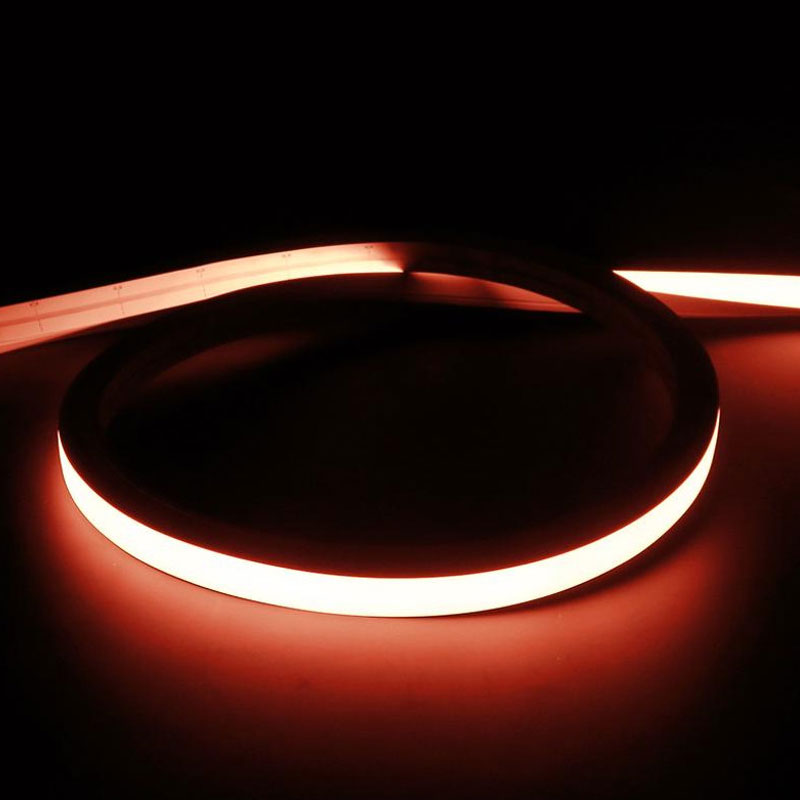

Introducing Our RGB 20x20 Dual Bend LED Neon Flex
Transform your lighting projects with our groundbreaking innovation, the 20x20mm Dual Bend LED Neon Flex. This versatile LED neon flex is engineered for both horizontal and vertical bending applications, making it ideal for intricate and dynamic designs in architectural features, retail displays, signage, and residential projects. Crafted with durable materials and precision-engineered, it delivers a sleek, high-end finish with consistent illumination around corners and curves.

From architectural elements to decorative lighting, this LED neon flex redefines versatility with its professional-grade features and performance. Designed to meet the demands of lighting designers, electricians, and contractors, it elevates any space with a seamless, professional-grade lighting solution. Sold by the metre.

Important Installation Note:
The NEONDUAL2020 has a ±0.5mm tolerance. Customers should measure precisely before routing out the groove for fitting the neon flex to ensure a perfect installation.

Key Features
With dual bend flexibility, this LED neon flex bends horizontally and vertically, ideal for complex layouts. It offers uniform, shadow-free illumination and is available in sold by the metre lengths. The durable, anti-yellowing material is indoor and outdoor-ready with an IP67 rating. A 120° beam angle delivers smooth light, and sold by the metre and cable length options enable a custom setup. Backed by a 5-year warranty.

Specifications
Voltage: 24V
Max. Power: 15.4W/m
LED Density: 96 LEDs/m
Min. Bend Diameter: 200mm (vertical), 280mm (horizontal)
Lumens per metre: Up to 310lm
Beam Angle: 120°
Cut Points: 62.5mm
Dimensions: W20mm x H20mm
SDCM: <3
Warranty: 5 Years
IP Rating: IP67 (suitable for indoor and outdoor use)

Installation
The IP67-rated LED Neon Flex is designed for both indoor and outdoor applications. Cable entry is optional depending on your requirements. For optimal performance and secure placement, we recommend using mounting tracks.

Product Specification
Warranty (Years):    5
Control Signal - Input:    PWM
Dimmable:    Yes
Dimming Type:    PWM
Rated Life (Hours):    50000
Length: 16.4 ft (5 m)
Max. Run Length (m):    5
Application Environment:    Hospitality, Retail, Commercial, Architectural, Landscapes
Body Material:    Silicone
Ingress Protection (IP):    67
Interior or Exterior Use:    Interior or Exterior
Saltwater Resistant:    Yes
Solvent Resistant:    Yes
Storage Humidity Max. (°C):    60
UV Resistant:    Yes
Working Humidity Max. (°C):    80
Input Voltage Min. - Max (V):    24-24V
Body Colour:    White
Cable Length (m):    500
Cable Weight (AWG):    20
Chip Type:    SMD5050
Copper Foil Weight (oz):    3
Cut Points (mm):    62.5
Entry Cable Direction:    Rear
LED Pitch (mm):    10.42
LEDs Per Metre (LEDs/m):    96
Min. Bend Radius (mm):    100
Product Height (mm):    20
Width (mm):    20
Constant Voltage / Constant Current:    CV
Beam Angle (°):    120
Lumens Per Metre (Lm/m):    310
Operating Temperature Min. - Max. (°C):    -20℃ to 45℃
Bend Direction:    Dual
Cable Sheath Material:    Silicone
Family Name:    Pro Series
Lumens Per Watt (Lm/W):    22
SDCM:    3
