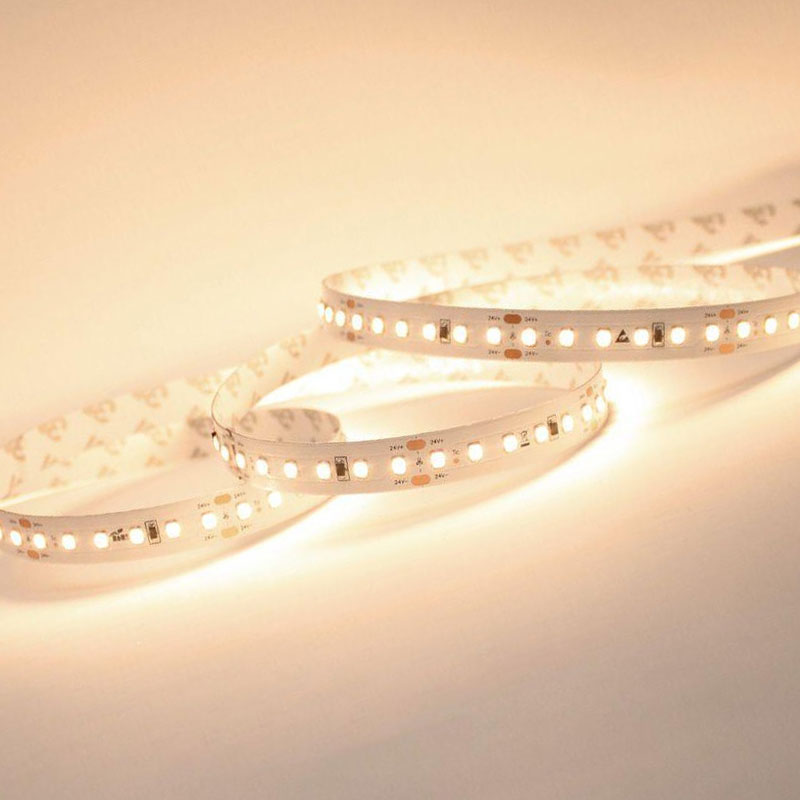

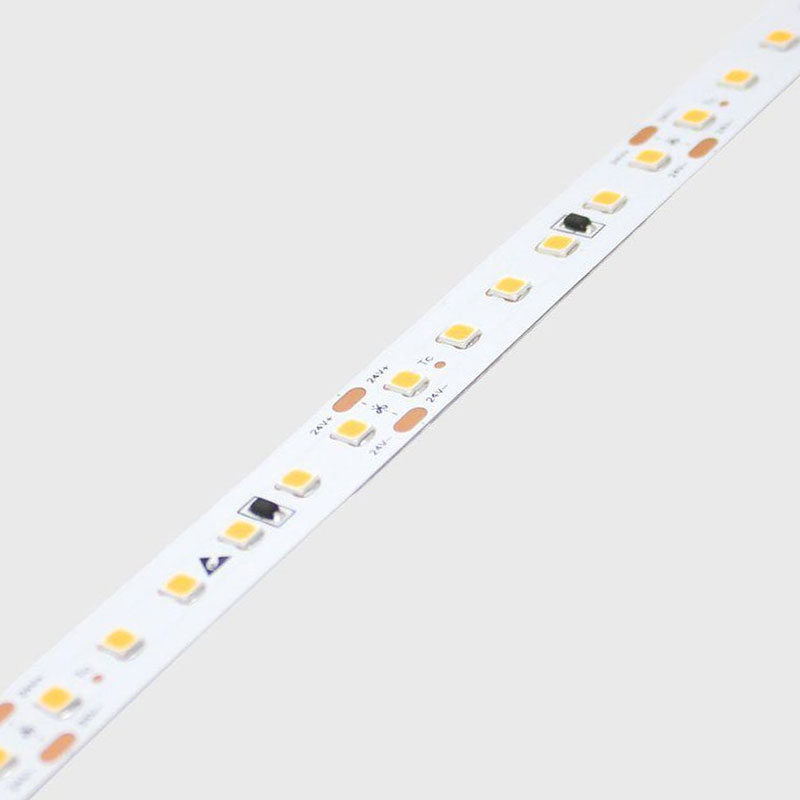

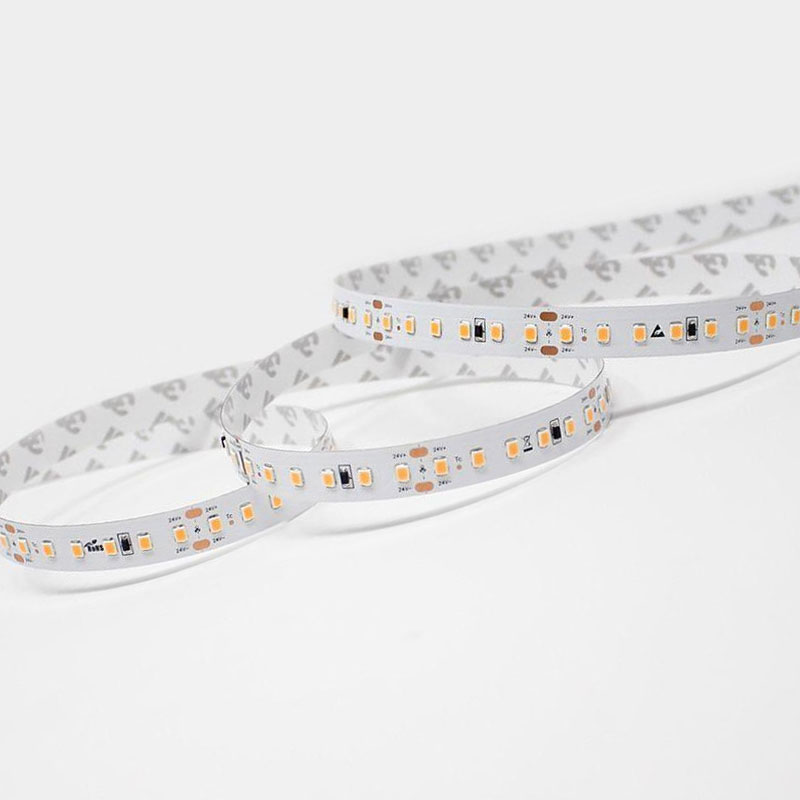

20m White LED Strip Light | Long Run LED Strip Light | 120 LEDs p/m | 24V | IP20 | 9.6Wp/m
Introducing our Advance Series Long Run LED strip light, available in various colour temperatures (2700K, 3000K, 4000K and 6500K). Featuring an LED density of 120 LEDs per metre and producing a max. wattage per metre of 9.6W allows this strip light to achieve 20 metre lengths when powered from a single end. This strip light typically produces 0.36A per metre, making it ideal for a wide range of applications. The strip light is highly flexible with a beam angle of 120° and provides up to 758 lumens per metre.
The product is available in both 20 metre reels and can be cut at 50mm increments, making it customizable for various installations. With a high CRI of >95, 4oz copper PCB and an SDCM of <2, this LED strip is ideal for commercial long length lighting.
It comes with 500mm tinned end cables for easy soldering and installation. The product is IP20 rated, making it suitable for indoor use, and comes with an adhesive backing for simple installation on smooth surfaces.
Installation:
The LED strip light is suitable for indoor installations with an IP20 rating. It includes a 3M adhesive backing, allowing easy mounting on smooth and clean surfaces. We recommend installing the LED strip in an aluminum profile to provide protection and act as a heat sink, which will reduce overheating and prolong the product's lifespan.
Features:
Voltage: 24V
Max. Power: 9.6W/m
LEDs per metre: 120 LEDs
Cut Points: 50mm
CRI: >95
Beam Angle: 120°
SDCM: <2
PCB Weight: 4oz
Lumens: Up to 758lm/m
Warranty: 7 Years
Product Specification
Warranty (Years): 7
Dimmable: Yes
Energy Efficiency Class: G
Ingress Protection (IP): 20
Interior or Exterior Use: Interior
Input Current Type (A): DC
Input Voltage Min. - Max (V): 24-24V
Body Colour: White
Cable Length (mm): 500
Cut Points (mm): 50
LEDs Per Metre (LEDs/m): 120
Product Height (mm): 2
Product Weight (g): 370
Width (mm): 12
Battery Included: No
Beam Angle (°): 120
Bin Number: 1
CCT (Kelvin): 3000
CRI: 95
Total Lumens (Lm): 13660
SDCM: 2
Operating Temperature Min. - Max. (°C): -25℃ to 40℃
Family Name: Long Run
Bend Direction: Vertical
Max. Run Length (m): 20
