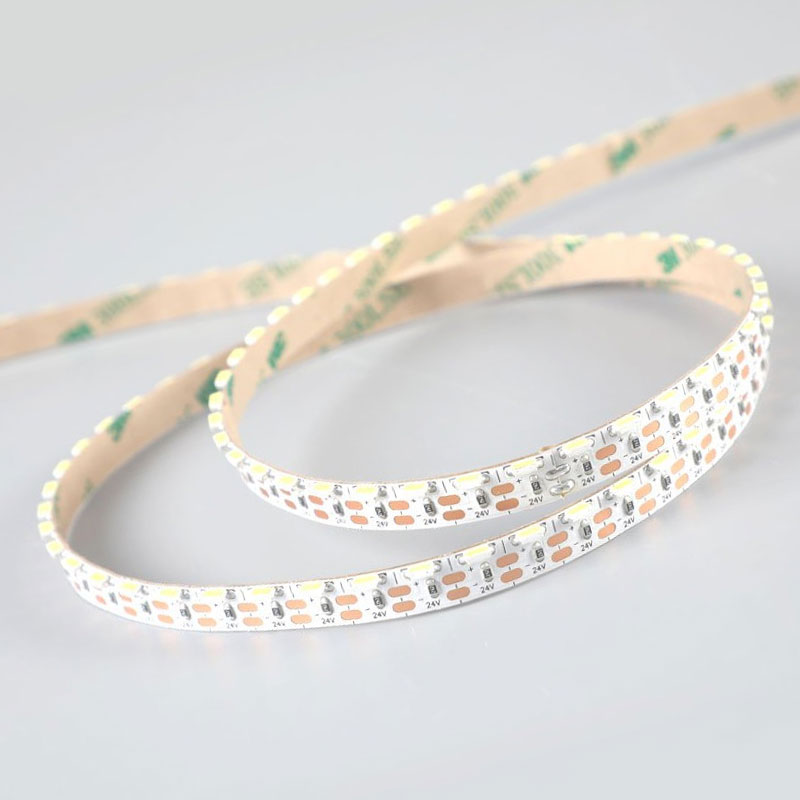

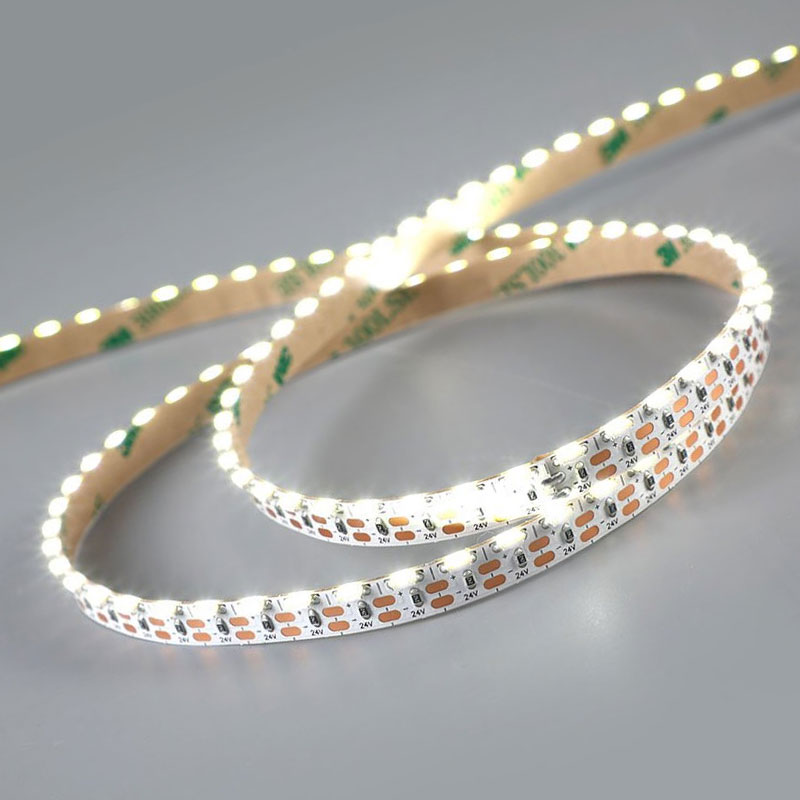

Offering a unique side-view design, this product produces a projection of light at one side of the LED strip. Refered to a side-view, its ideal for more intricate installation where there is not much room for the LED strip light. Requiring a 24V input and with 120 LEDs per metre its capable of producing a non-spotting appearance in deep profiles. It produces a 120° beam angle and up to 1148lm per metre making it an ideal solution for furniture, accent lighting and signage.

Part of the Professional Signage range it features 2x 500mm pre-attached cables. These cables have tinned ends making them suitable for soldering straight away. Capable of achieving up to 5 metres of light when powered from one end.

This product benefits from our 1-BIN guarantee. This guarantee provides reassurance that all the LED chips have come from the same manufacturing bin, ensuring no colour variation across batches.

Available in a range of white light colours including 6500K. Comes as a 5 metre reel as standard and can be cut to your required length using the cut points which are located at 8.33mm intervals.

Our Professional Signage LED Strip Light is manufactured using high quality materials and components. Featuring a 4020 LED chip, it produces around 120lm per watt which is considerably more than the standard 3014 chip used on side-view strip lights. This product is a flexible solution to a wide range of installations and offers a bright output, small cut intervals and a unique side-view design.

Installation:
Available in IP20 making it suitable for indoor installation. All our flexible LED strip lights feature an adhesive backing. Remove the protective backing and stick to a surface ensuring it is smooth and clean.

We recommend installing our LED strip lights within a LED Profile. These offer protection for the strip lights and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.

Features:
Voltage: 24V
Max. Power: 9.6W/m
LEDs per metre: 120 LEDs
Cut Points: 8.33mm
CRI: >80
Beam Angle: 120°
SDCM: <5
PCB Weight: 3oz
Lumens: Up to 1148lm/m
Warranty: 7 Years
1BIN Guarantee

Product Specification
Warranty (Years)：    7
Dimmable：    Yes
Energy Efficiency Class：    F
Max. Run Length (m)：    5
Ingress Protection (IP)：    20
Interior or Exterior Use：    INTERIOR
Input Current Type (A)：    DC
Input Voltage Min. - Max (V)：    24-24V
Cable Length (m)：    500
Copper Foil Weight (oz)：    3
Cut Points (mm)：    8.33
LEDs Per Metre (LEDs/m)：    120
Product Height (mm)：    3
Depth (mm)：    5000
Width (mm)：    8
End Caps Included：    No
Fixings Included：    No
Beam Angle (°)：    120
CRI：    80
SDCM：    5
Operating Temperature Min. - Max. (°C)：    -25℃ to 40℃
Dimensions LxWxH (mm)：    5000x8x3
Body Colour：    White
Family Name：    Signage
Bend Direction：    Vertical
Bin Number：    1
Cable Length (mm)：    500
