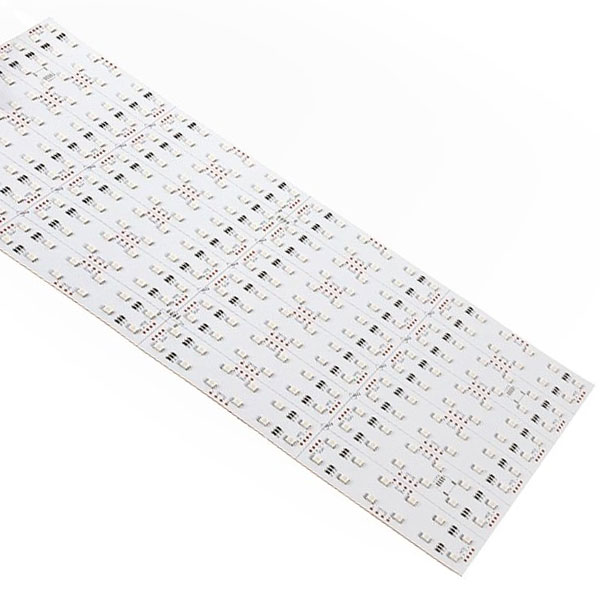

The LLS RGB series is a fully customizable and color-changing flexible LED sheet. This sheet is perfect for backlighting displays, light boxes, letters, logos, billboards, translucent materials, and more. The high density of LEDs, 288 LEDs per sheet, provides smooth, bright illumination free of hotspots. Easily link together multiple sheets or pieces using the onboard soldering connectors.

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:
Cuttable segments: every 4-3/4" x 1-1/2"
12 LEDs per segment
4 x RGB solder points per segment
Dimmable
Max Run with Class 2 wiring: 1.5 sheets

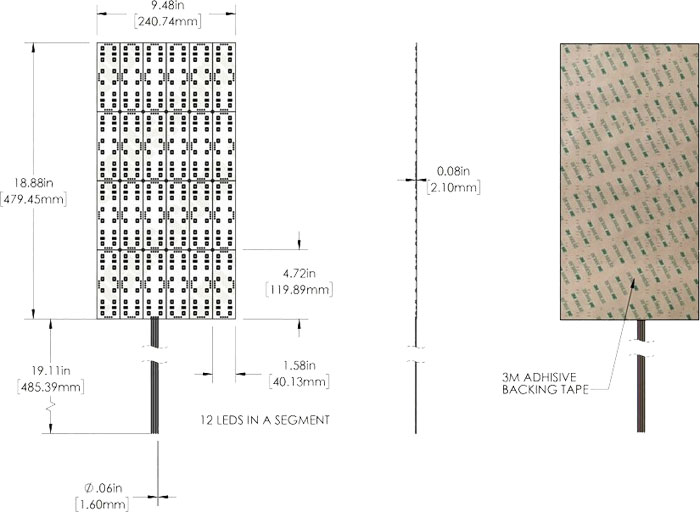

Dimensions: 18.9" x 9.5"
Thickness: 0.08in (2mm)
Wire length: 19.5" 22 AWG power wire
IP20 rated for dry conditions
50000 hours L70 lifespan
24 VDC
UL Listed, CE certified
5-year warranty

Specifications
Ambient Operating Temperature: -20 to 45 °C (-4 to 113 °F)
Certifications/Compliance: CE, UL Listed
Current Draw: 2.5 A
Dimensions: 18.9in x 9.5in
Dimmable: Yes
Dimmer Type: PWM
Enclosed Fixture Rated: Yes
Environmental Rating: Non-weatherproof, Suitable for Dry Locations
Finish: White
Input Connection Type: Pigtail
IP Rating: IP20
LED Beam Angle: 120°
LED Color: RGB
LED Chip Type: 5050 SMD
LEDs per Segment: 12
LED Lifetime: 50000 Hours
Max Run (Class 2): 1.5 Sheets
Operating Voltage:24 VDC
Segment Size: 4.72 in. x 1.58 in. (120 mm x 40 mm)
Wattage: 60 Watts
