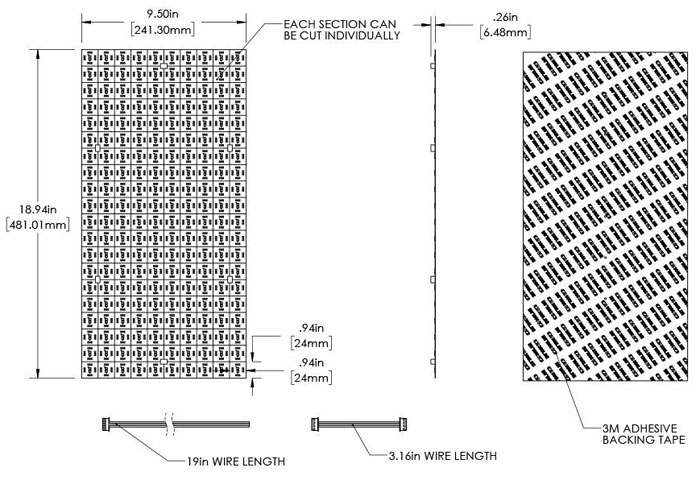

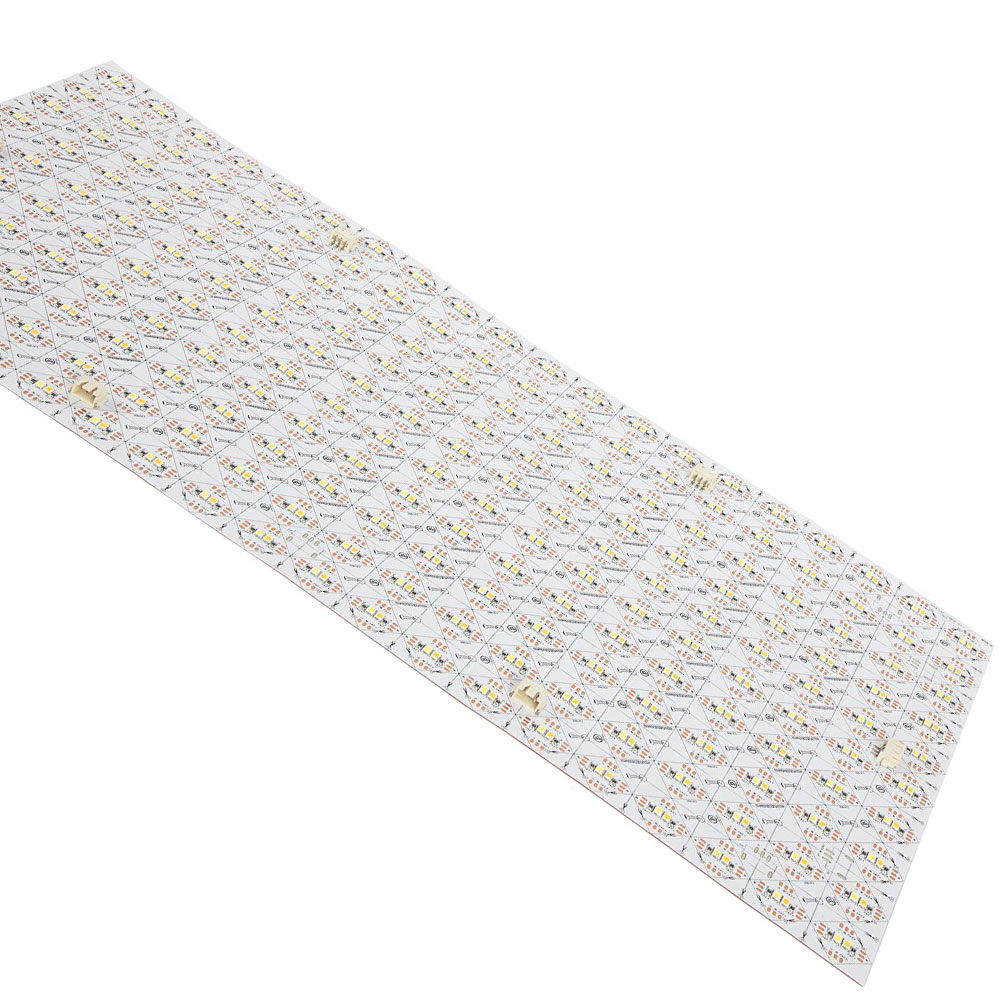

Wrap corners and trim to fit a unique shape with the Tunable White LED Light Sheet. The 18.9” x 9.5” sheet can be cut along the horizontal, vertical, or diagonal black lines of the 20 x 10 rows to customize the flexible sheet. Even in signs or backlighting with low clearance, the slim light sheet delivers powerful lighting, perfect for signage applications. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included interconnect cable. To install, use the 3M™ adhesive backing or fasten it with screws at the indicated spots. The light sheet is tunable and can display a range of 2700K-6500K.

Product Details:
Segment size: 0.95" x 0.95"- 200 segments per sheet
Max Run with Class 2 wiring: 1.5 sheets
Input connection: 3-pin XH connector
Includes one 0.5m pigtail connector and one 8cm interconnect
PWM dimmable
24 VDC
UL Listed
5-year warranty

Specifications
Ambient Operating Temperature: -20 to 45 °C (-4 to 113 °F)
Certifications/Compliance: UL Listed
Color Temperature: Tunable CCT
CRI: 80+
Current Draw: 2.5 A
Dimensions: 18.9in x 9.5in
Dimmable: Yes
Dimmer Type: PWM
Efficacy: 88 lm/W
Enclosed Fixture Rated: Yes
Environmental Rating: Non-weatherproof, Suitable for Dry Locations
Finish: White
Input Connection Type: Pigtail, XH 3-Pin Connector
IP Rating: IP20
LED Beam Angle: 120°
LED Color: Tunable CCT
LED Chip Type: 2835 SMD
LEDs per Segment: 2
LED Lifetime: 50000 Hours
Max Run (Class 2): 1.5 Sheets
Operating Voltage: 24 VDC
Output Connection Type: XH 3-Pin Connector
Segment Size: 0.95 n. x 0.95 in. (24 mm x 24 mm)
Wattage: 60 Watts
