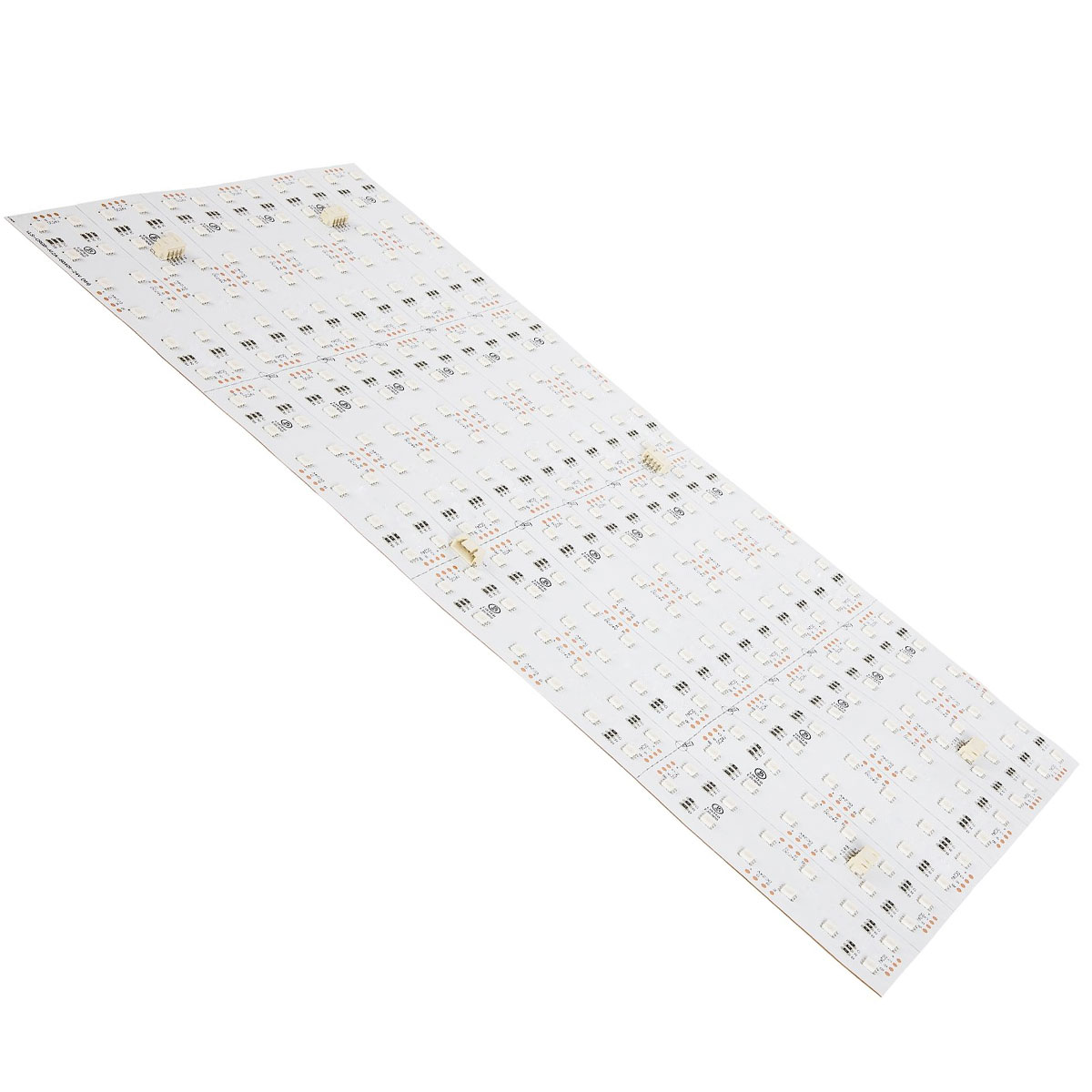

Wrap corners and trim to fit a unique shape with the RGB LED Light Sheet. The 18.9” x 9.5” sheet can be cut along the horizontal, vertical, or diagonal black lines of the 6 x 4 rows to customize the flexible sheet. Even in signs or backlighting with low clearance, the slim light sheet delivers powerful lighting, perfect for signage applications. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included 8cm interconnect cable. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots.

Product Details:
Segment size: 4.72" x 1.58"- 24 segments per sheet
Max Run with Class 2 wiring: 1.5 sheets
Includes one 0.5m pigtail connector and one 8cm interconnect
Input connection: 4-pin XH connector
PWM dimmable
24 VDC
UL Listed
5-year warranty

Specifications
Ambient Operating Temperature: -20 to 45 °C (-4 to 113 °F)
Certifications/Compliance: UL Listed
Current Draw: 2.5 A

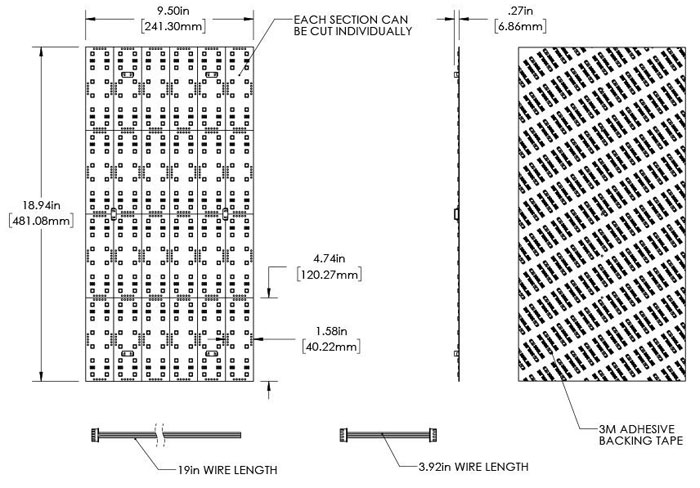

Dimensions: 18.9in x 9.5in
Dimmable: Yes
Dimmer Type: PWM
Enclosed Fixture Rated: Yes
Environmental Rating: Non-weatherproof, Suitable for Dry Locations
Finish: White
Input Connection Type: Pigtail, XH 4-Pin Connector
IP Rating: IP20
LED Beam Angle: 120°
LED Color: RGB
LEDs per Segment: 12
LED Lifetime: 50000 Hours
Max Run (Class 2): 1.5 Sheets
Operating Voltage: 24 VDC
Output Connection Type:XH 4-Pin Connector
Segment Size: 4.72 in. x 9.5 in. (480 mm x 240 mm)
Wattage: 60 Watts
