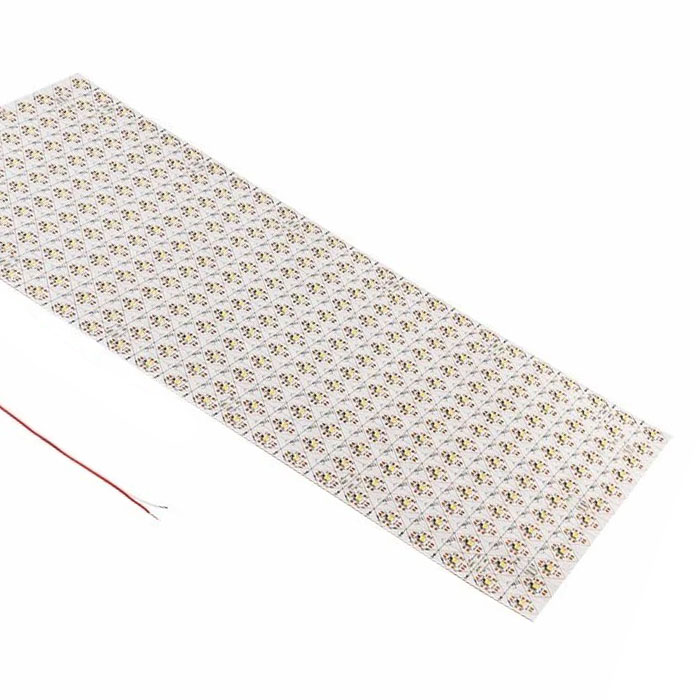

Trim to fit a unique shape and wrap corners with LLS series LED Light Sheet. This flexible sheet contains 24 x 12 rows that can be segmented in any shape simply by cutting along the horizontal, vertical, or diagonal black lines. A high density of LED chips ensures even light distribution, even in signs or backlighting with low clearance. Apply this dimmable sheet by peeling off the 3M™ adhesive backing or fastening it with screws at the indicated spots.

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:
Dimmable
Max Run with Class 2 wiring: 3 sheets

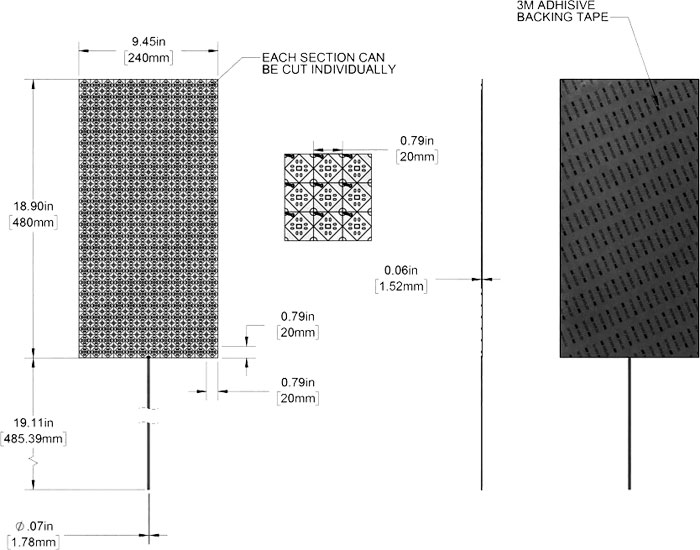

Dimensions: 18.9" x 9.45"
Enclosed fixture rated 30 mm
IP20 rated for dry conditions
50000 hours L70 lifespan
24 VDC
UL Listed
5-year warranty

Specifications
Ambient Operating Temperature：-20 to 45 °C (-4 to 113 °F)
Certifications/Compliance：CE, UL Listed
CRI：80+
Current Draw：1.3 A
Dimensions：18.9in x 9.5in
Dimmable：Yes
Dimmer Type：PWM
Efficacy：92 lm/W
Enclosed Fixture Rated：Yes
Finish：White
Input Connection Type：Pigtail
IP Rating：IP20
LED Beam Angle：120°
LED Chip Type：2835 SMD
LEDs per Segment：1
LED Lifetime：50000 Hours
Max Run (Class 2)：3 Sheets
Operating Voltage：24 VDC
Segment Size：0.79 in. x 0.79 in. (20 mm x 20 mm)
Wattage：30 Watts
